Operating Systems

Ahmad Yoosofan

University of Kashan

Introduction

Course Review

Introduction
Process
- Multiprogramming
- multithread
- Synchronization
- Deadlock
- Eavluation
Secondary Storage
- Disks
- file organization

Main Memory

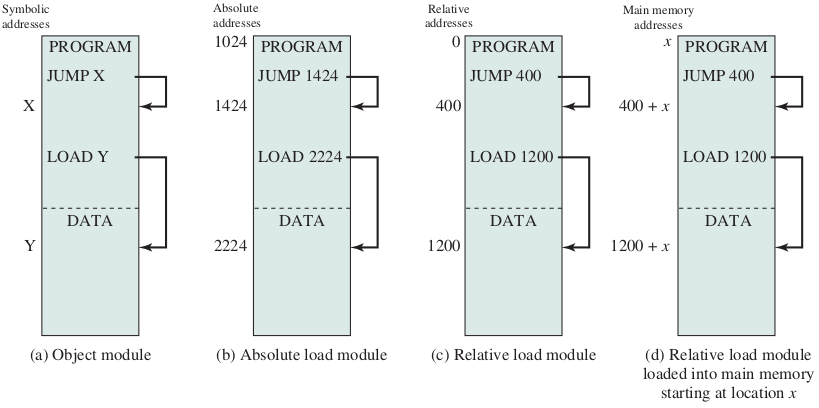

- Absolute Address

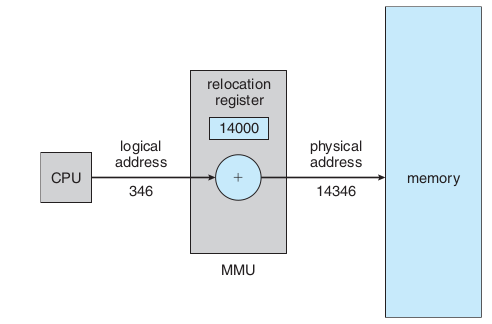

- Relative Address
- paging
- Virtual Memory
- segmentation
- segmentation and paging combinations
- Invert table

Making an imaginary computer step by step

Finding more about how hardware and software works

It needs to go back to principles
It provides clear path for what we already have
Understanding that why computers works this way nowadays

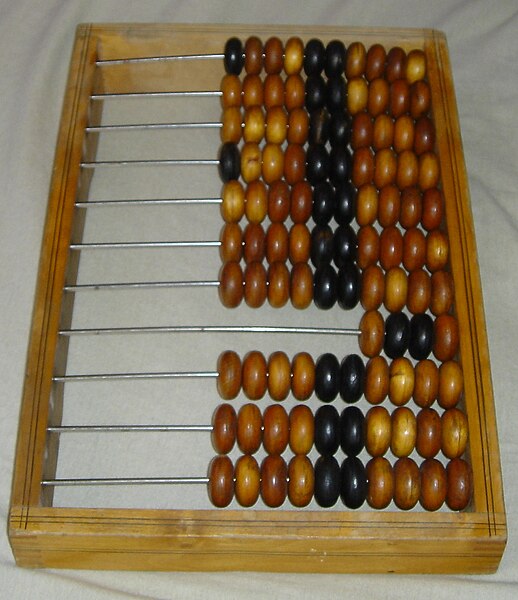

The Abacus and Counting Board

https://en.wikipedia.org/wiki/Abacus

Mechanical Calculator

Pascaline

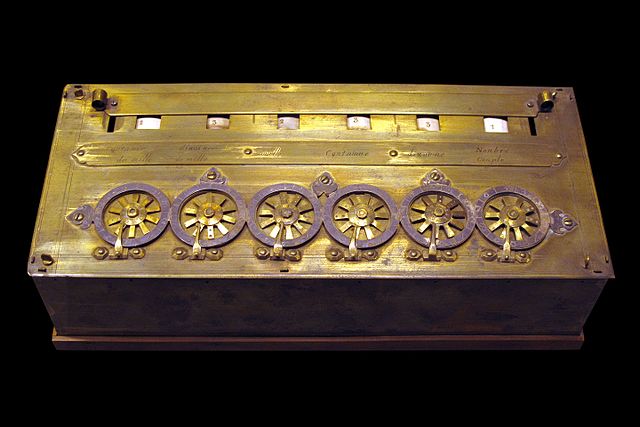

A Pascaline signed by Pascal in 1652
https://en.wikipedia.org/wiki/Pascaline

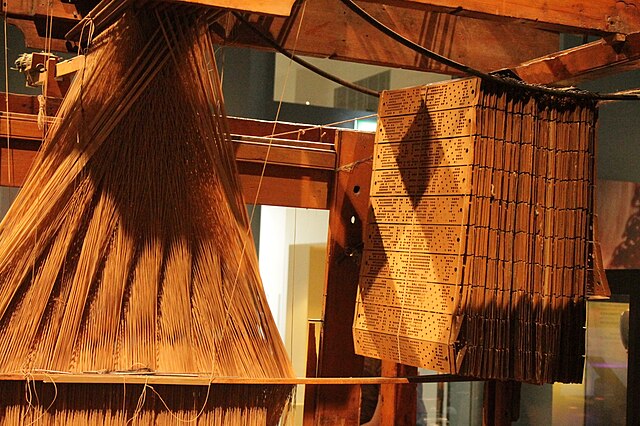

Jacquard Machines

Joseph Marie Jacquard in 1804
based on
- the Frenchmen Basile Bouchon (1725)
- Jean Baptiste Falcon (1728)
- Jacques Vaucanson (1740).[8]
https://en.wikipedia.org/wiki/Jacquard_machine

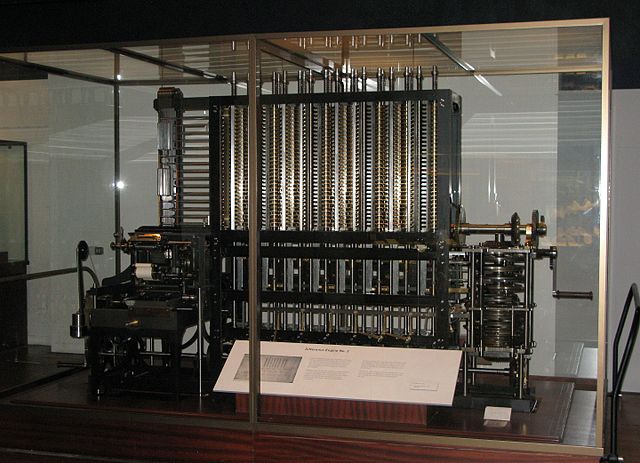

Mechanical Computer

Analog Computer

https://en.wikipedia.org/wiki/Analog_computer

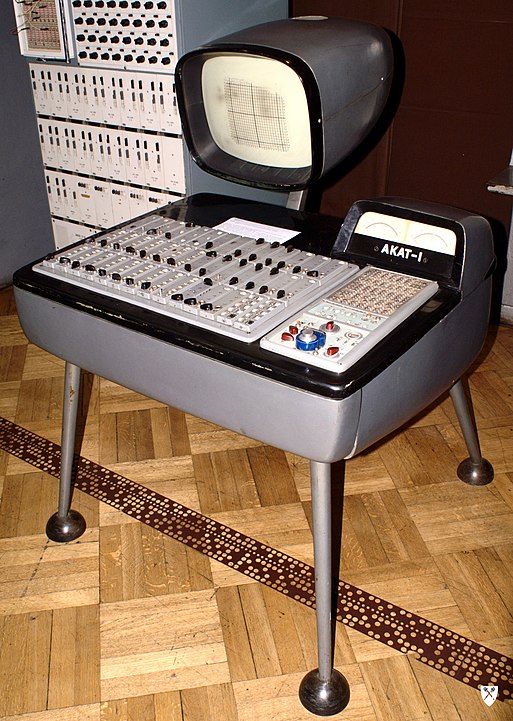

Polish analog computer AKAT-1 (1959)

Analog vs Digital

\begin{align}i(t) = C \frac{dv(t)}{dt}\end{align}

Electro Mechanical

Konrad Zuse

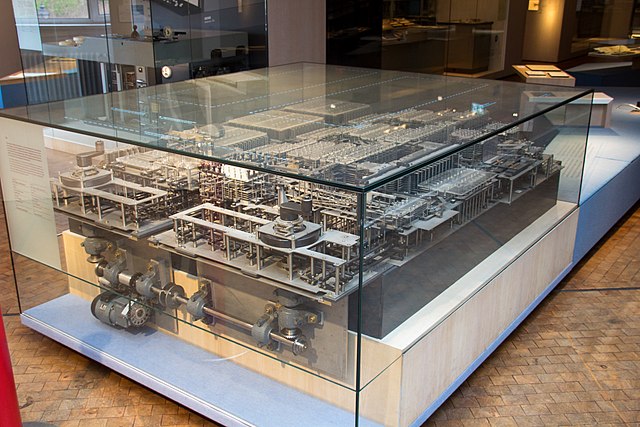

- Z1(1936)
  Programmable
  binary
  electrically motor-driven mechanical computer
- Z2(1940)
Harvard Mark I(1944)

Digital Computer

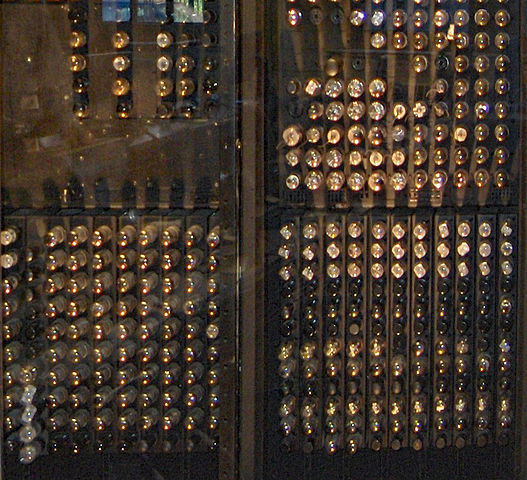

Vacuum-tube computer
Atanasoff–Berry computer
- neither programmable, nor Turing-complete

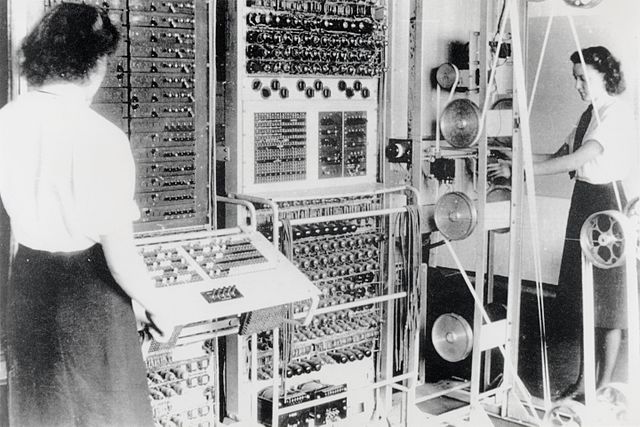

Colossus computer
- British code breakers
- programmable
- electronic
- digital computer
- programmed by switches and plugs
- not by a stored program

Stored Program

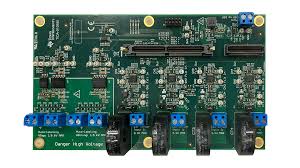

Analog Chipsets for AI Applications

General Types of Computers

Analog Computer
- pros
- cons
Digital Computer
- pros
- cons

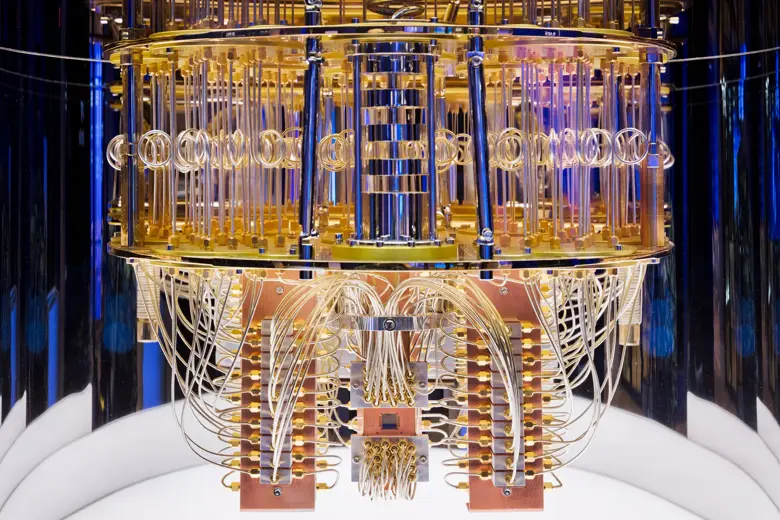

Quantum Computer
- pros
- cons

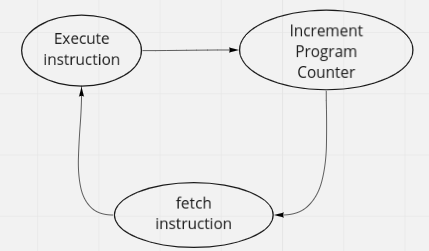

Imaginary Computer (YIC-10)

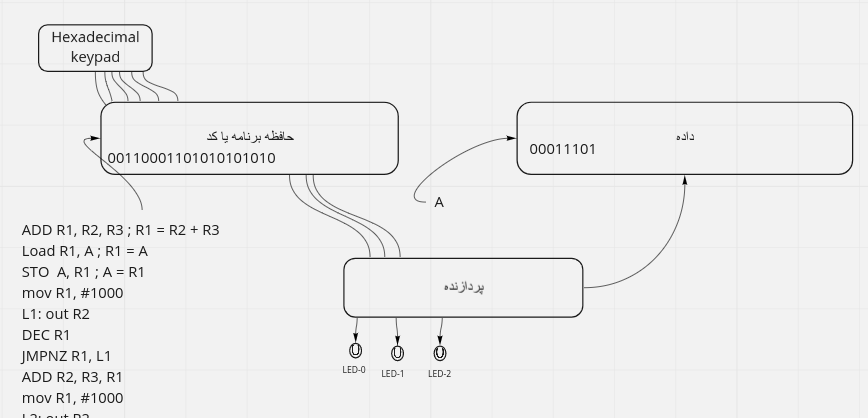

Different memory for code and data

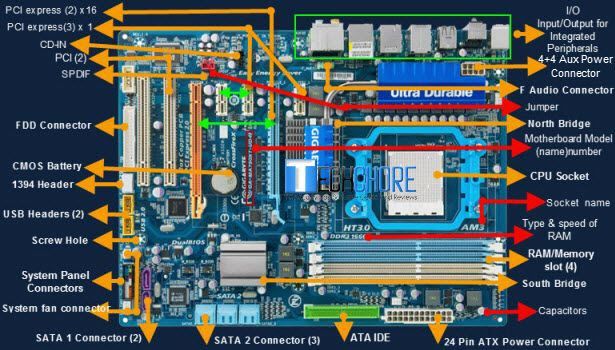

Real Motherboard

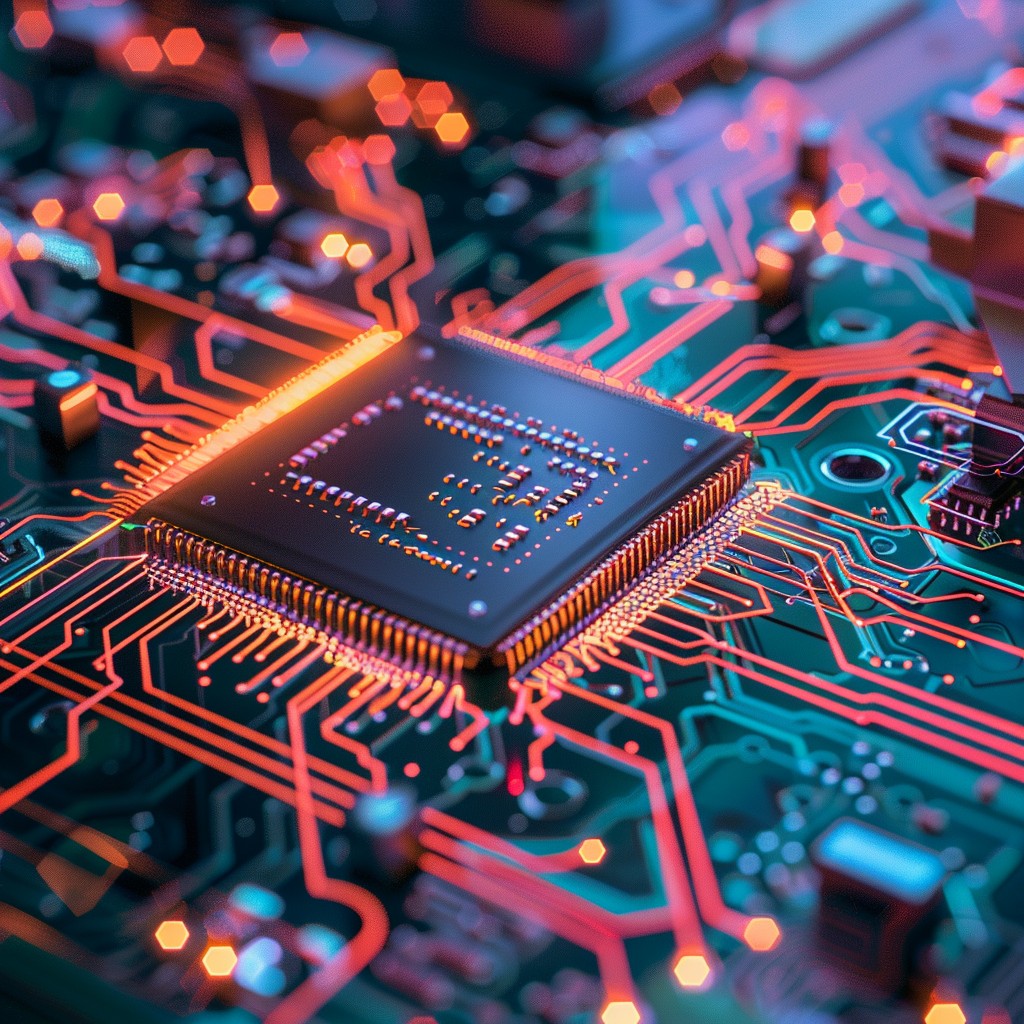

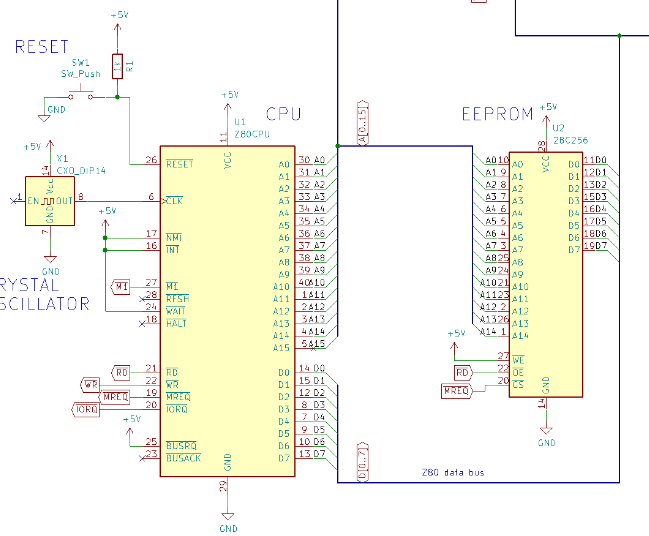

Motherboard Circut

The Second Computer (YIC-10)

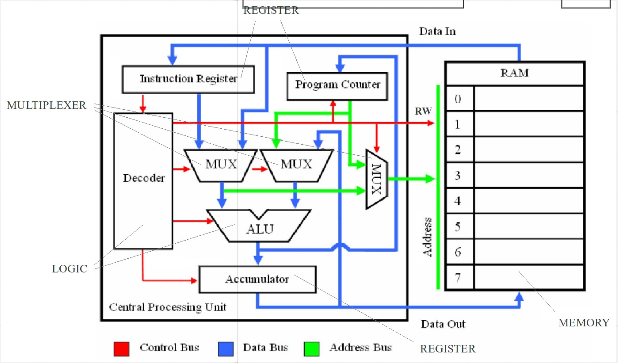

Uniform memory (John von Neumann)

Assembly Code and Machine Code

ADD A,B

A = A + B

; 0101011  00010101 0101010

OPcode    DATA_1    DATA_2
ADD          A               B

R1 = R2 + R3
ADD R1, R2, R3

; 010101001 0001 0010 0011

OP Code     R1    R2    R3

010101001000100100011

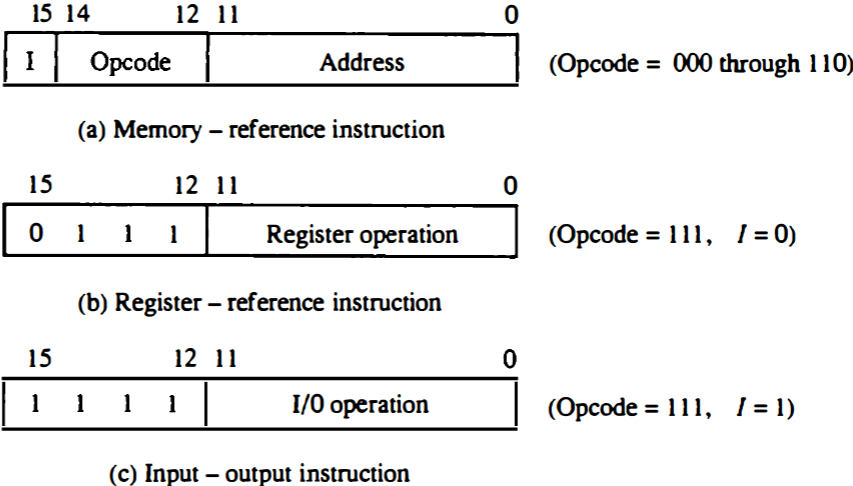

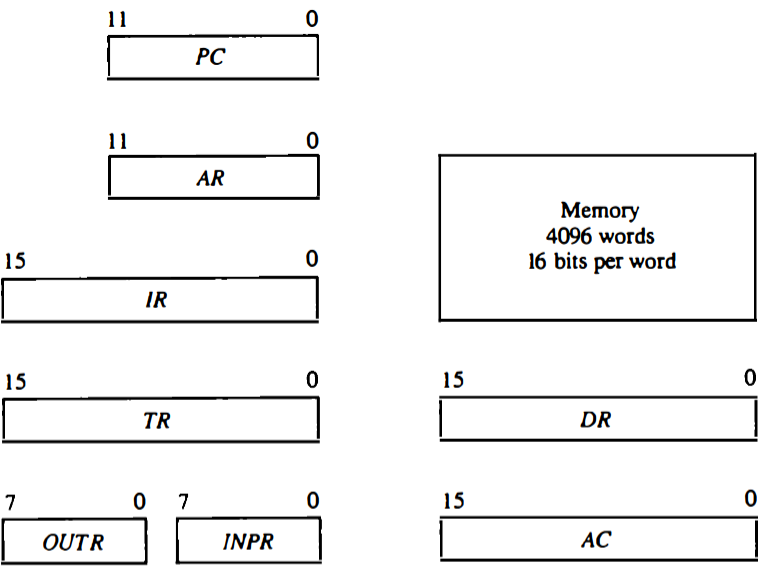

Instruction Set(I)

AND: Logical AND memory with AC
ADD: Arithmetic ADD memory with AC
LDA: Load from memory to AC
STA: Store AC to memory
BUN: Branch unconditional
ISZ: Increment and skip if zero
CLA: Clear AC
CLE: Clear E
CMA: Complement AC
CME: Complement E
CIR: Circulate right (AC and E)
CIL: Circulate left (AC and E)

INC:    Increment AC
SPA:    Skip if positive AC
SNA:    Skip if negative AC
SZA:    Skip if zero AC
SZE:    Skip if zero E
HLT:    Halt
OUT:    Output a character from AC
SKO:    Skip if output flag
NOP:    No operation

Instruction Set Bianary(I)

AND:    00001
ADD:    00010
LDA:    00011
STA:    00100
BUN:    00101
ISZ:    00110
CLA:    00111
CLE:    01000
CMA:    01001
CME:    01010
CIR:    01011
CIL:    01100

INC:    01101
SPA:    01110
SNA:    01111
SZA:    10000
SZE:    10001
HLT:    10010
OUT:    10011
SKO:    10100
NOP:    10101

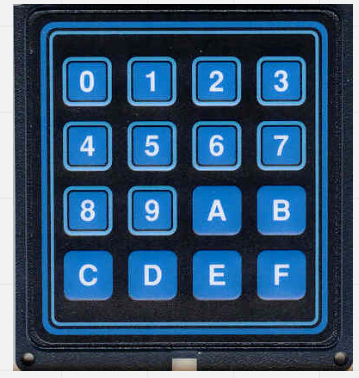

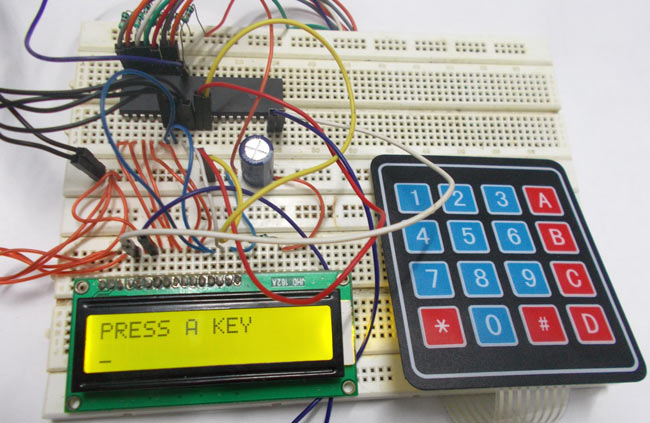

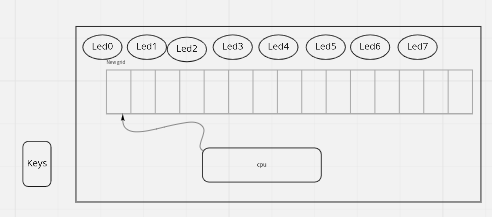

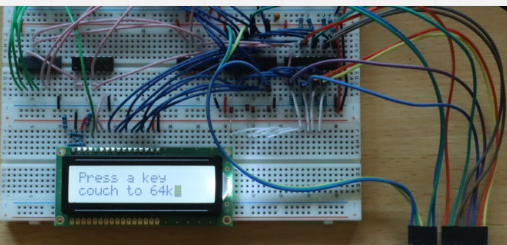

hex pad connect to microcontroller

https://www.circuitstoday.com/interfacing-hex-keypad-to-8051

https://circuitdigest.com/microcontroller-projects/keypad-interfacing-with-avr-atmega32

Example

Other assembly

00101 00000  1010
00110 00000  1100
00111 00000  1110
01000

00000

اگر حداکثر ۳۲ دستور داشته باشیم پس پنج بیت برای دستورها نیاز داریم برای سادگی فرض می‌کنیم که طول همهٔ دستورها یکسان است یعنی هم دو بایت را می‌گیرند فرض کنید دستورها پنج بیت نیاز دارند پس ۱۱ بیت برای آدرس

حداکثر حافظهٔ این کامپیوتر چقدر می‌تواند باشد. اگر بخواهیم بایتی آدرس دهی کنیم

۲^۱۱ = ۲kB

B = Byte

اگر آدرس‌دهی را دو بایتی در نظر بگیریم

۴kB (word = 2 byte)

Main Type of Processors

RISC (Reduced instruction set computer)
- https://en.wikipedia.org/wiki/Reduced_instruction_set_computer
CISC (Complex Instruction Set Computer)
- https://en.wikipedia.org/wiki/Complex_instruction_set_computer

Output

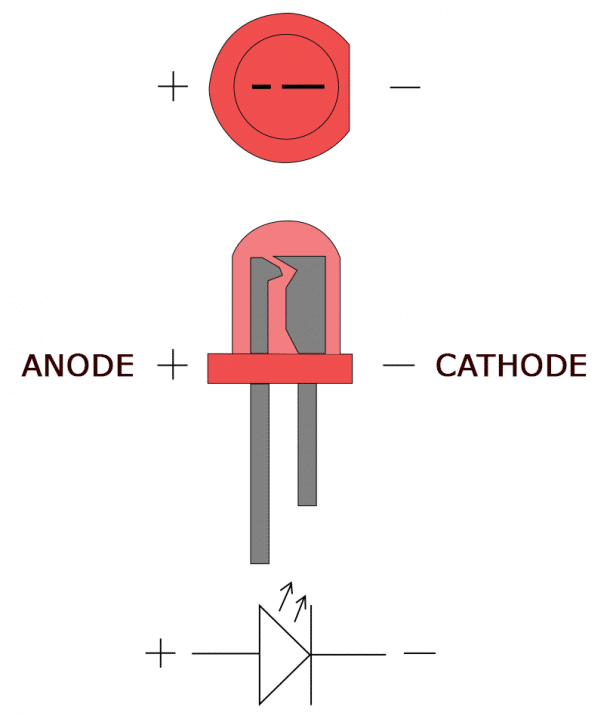

LED

seven segment

https://www.rapidtables.com/convert/number/hex-to-binary.html
convert hex to binary
https://clrhome.org/asm/

Output Problem

lda a
add b
sta c
out
hlt
a, 5
b, 2
c, 0

..........
..........

LB1: out
    sko
    bun LB1

...........
...........

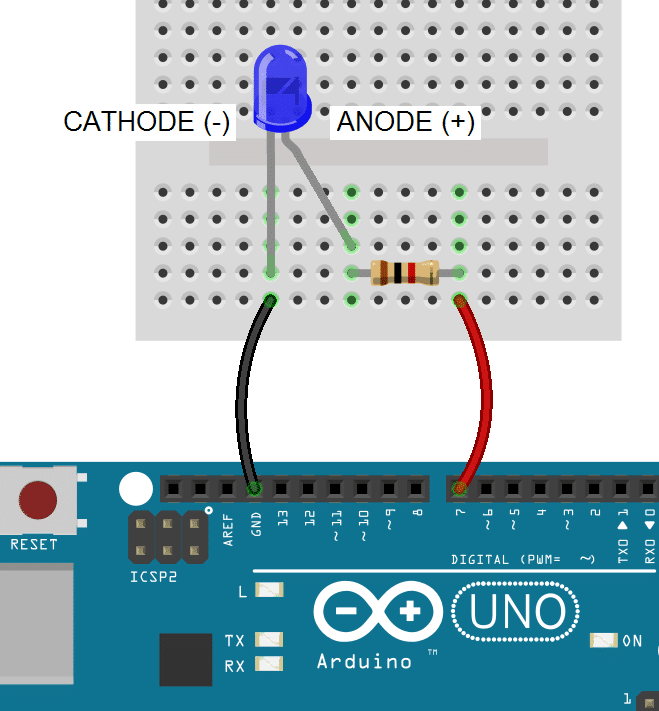

Simple LED

circuitbasics

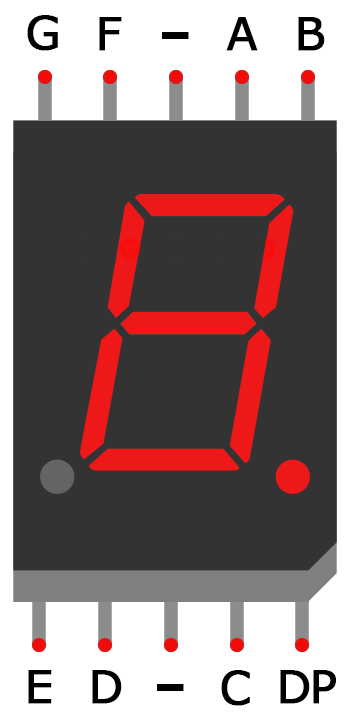

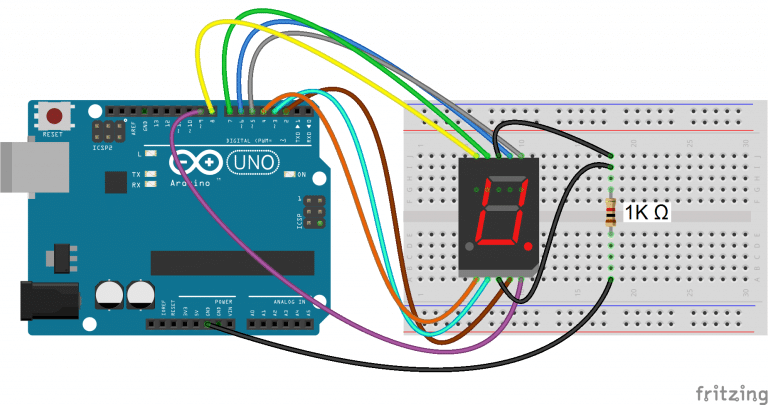

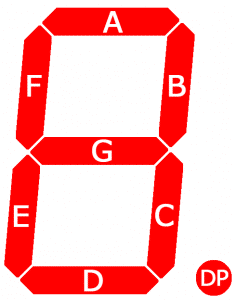

Seven segment display

circuitbasics askingthelot

youtu.be element14

Imaginary Computer

Consider it as real a computer
Think about business plan
Consider customers' need
Consider other companies

YIC 30

Seven segment

circuitbasics

Issues of YIC 30

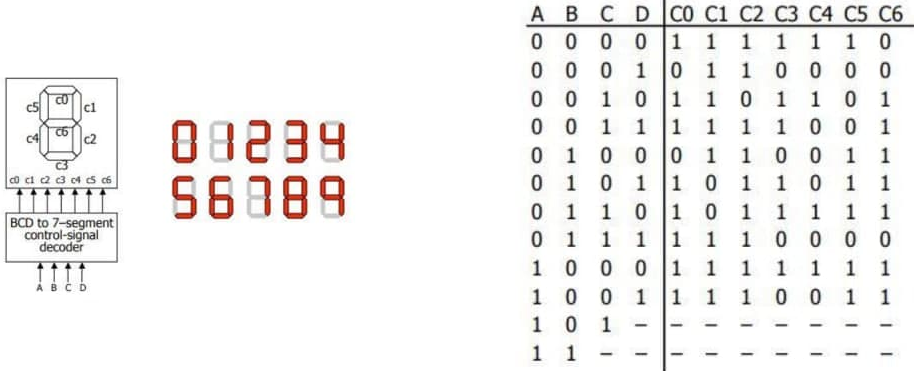

Convert binary number to 7 segment code
Old codes only LED
LED & seven segment
Changing CPU
Cost of changes
Just one 7 segment ?
for every output, seven segment code should be added

Hardware insead of Software

Hardware vs Software

pros
- Less code
- More speed
- Less errors of writing code
cons
- Cost
- Less Flexible

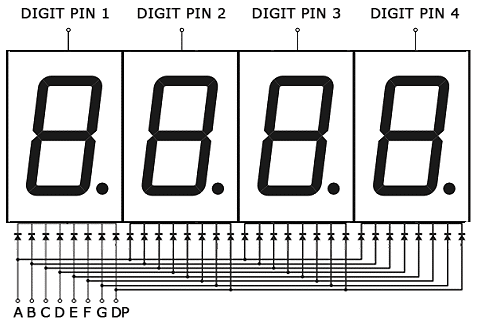

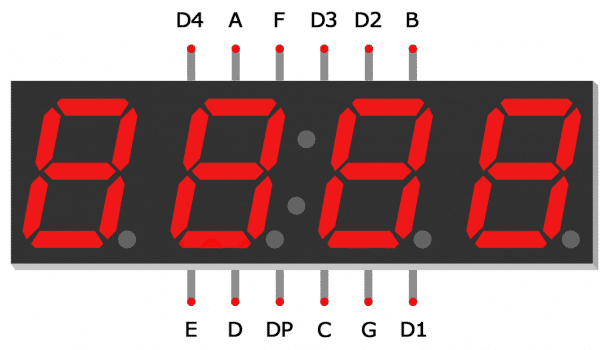

4 Digit 7-Segment Displays

circuitbasics

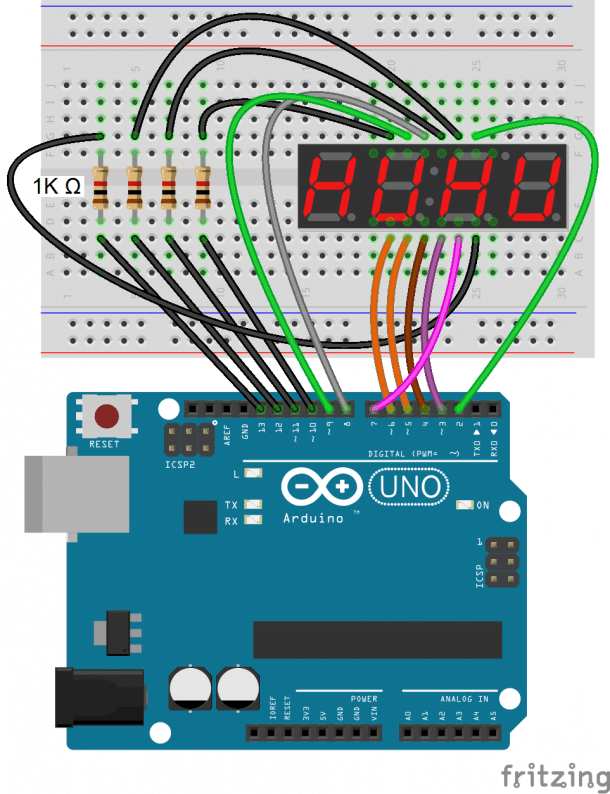

Connecting 4 Digit 7-Segment Displays

Arduino Print 4 to 7-segment

#include "SevSeg.h"
SevSeg sevseg;

void setup(){
  byte numDigits = 1;
  byte digitPins[] = {};
  byte segmentPins[] =
    {6, 5, 2, 3, 4, 7, 8, 9};
  bool resistorsOnSegments = true;

  byte hardwareConfig = COMMON_CATHODE;
  sevseg.begin(hardwareConfig,
    numDigits, digitPins, segmentPins,
    resistorsOnSegments
  );
  sevseg.setBrightness(90);
}

void loop(){
  sevseg.setNumber(4);
  sevseg.refreshDisplay();
}

Segment Pin	Arduino Pin
A	6
B	5
C	2
D	3
E	4
F	7
G	8
DP	9

circuitbasics

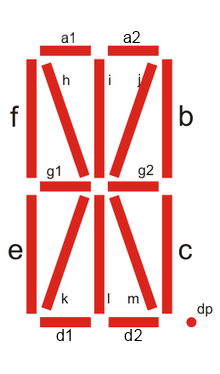

The common segment displays

YIC 40 - BSA

LED output code
7 segment code

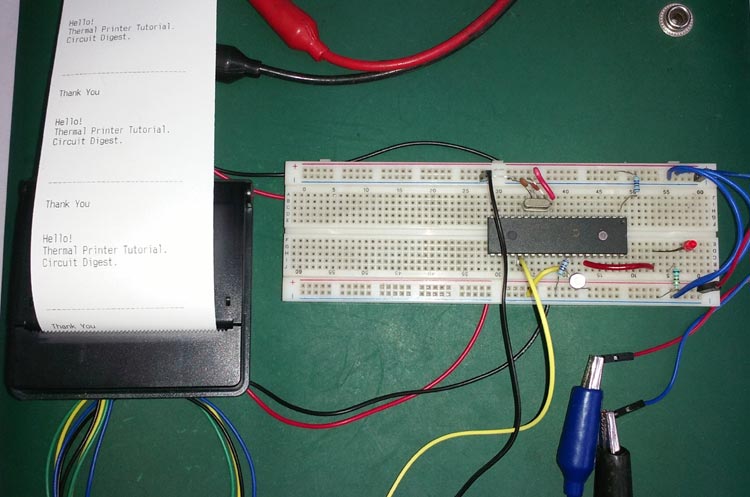

Printer
output selector
Adding porecedures
Device Drivers
Adding more devices
No error checking
Send data
API (protocol)

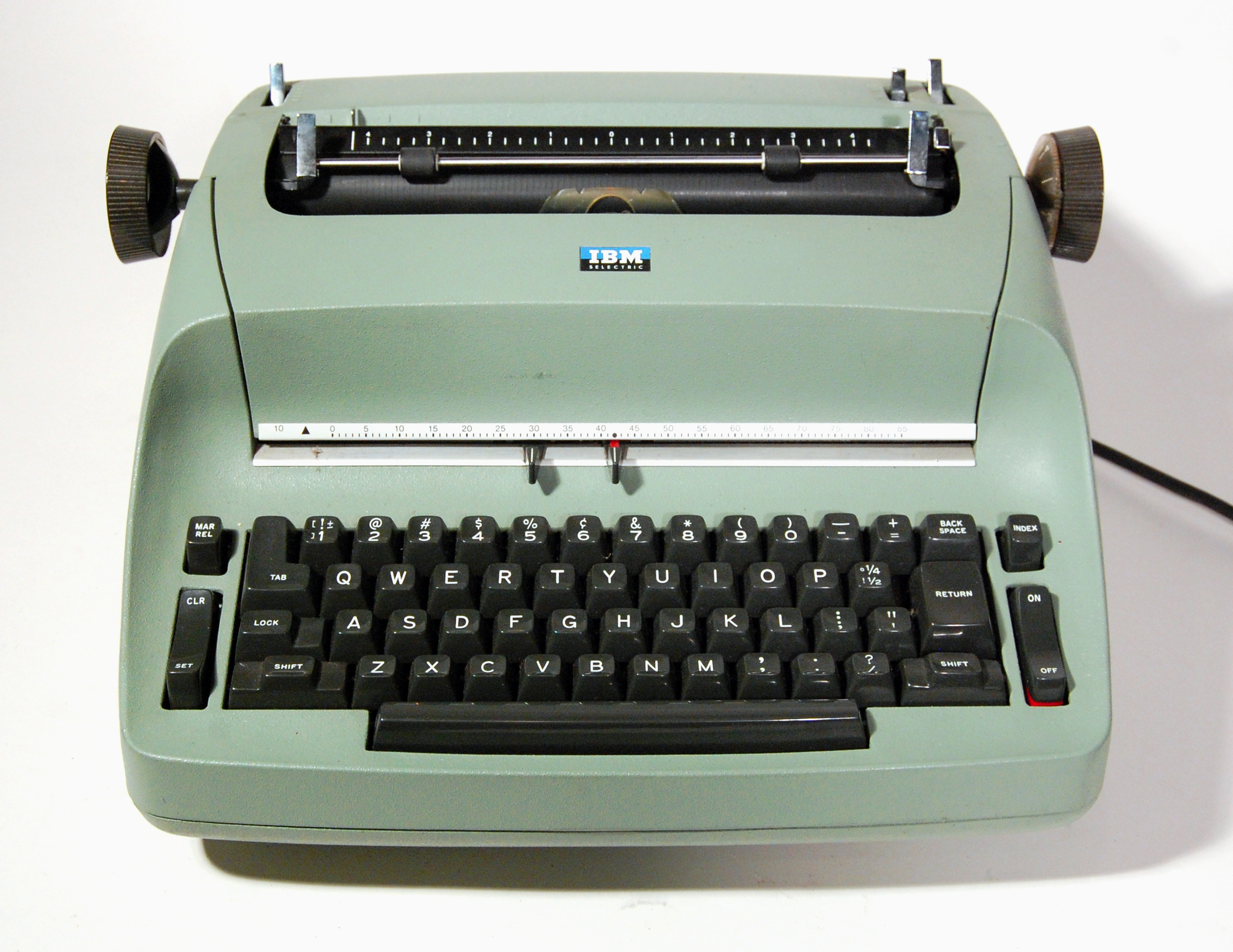

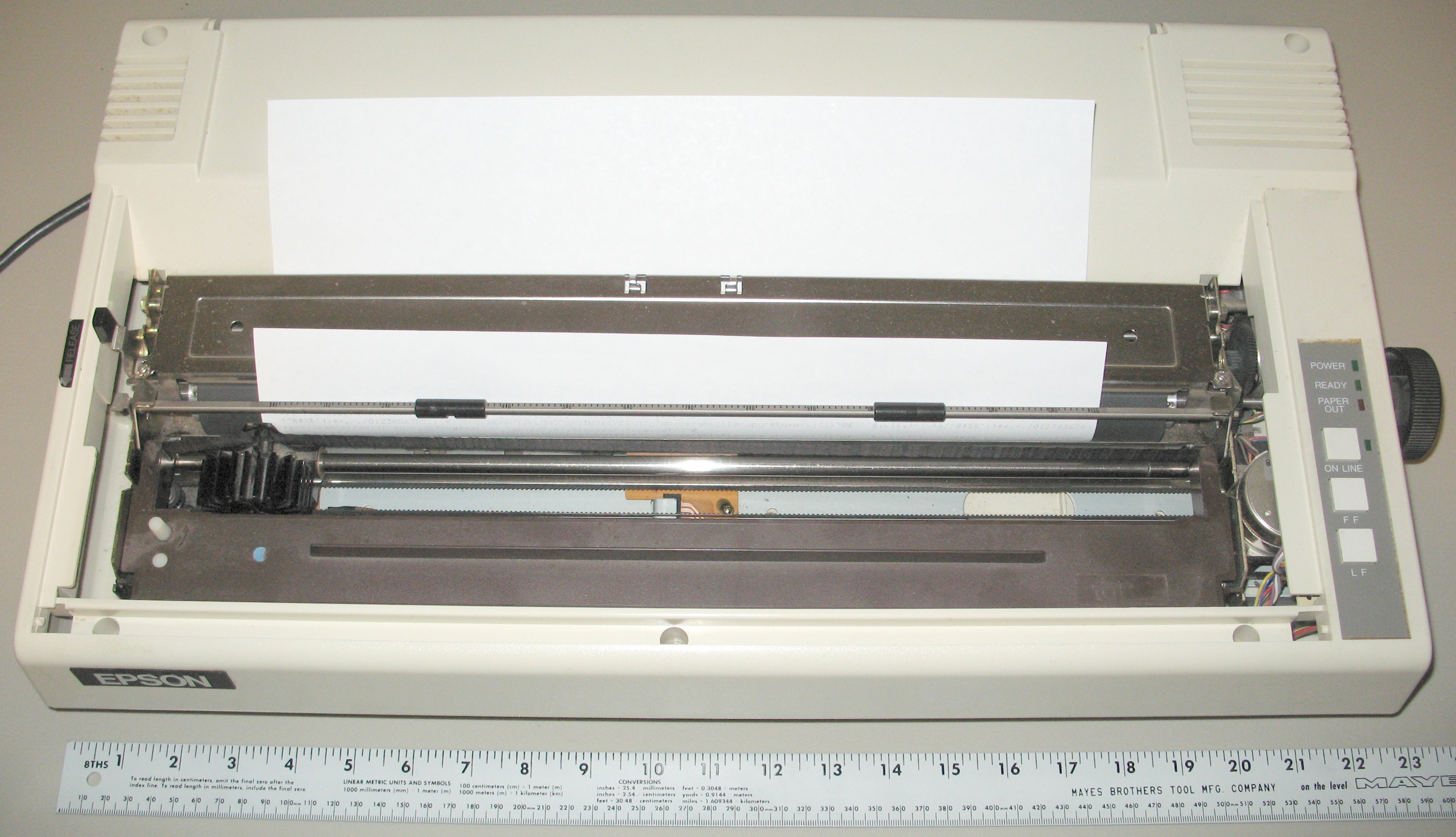

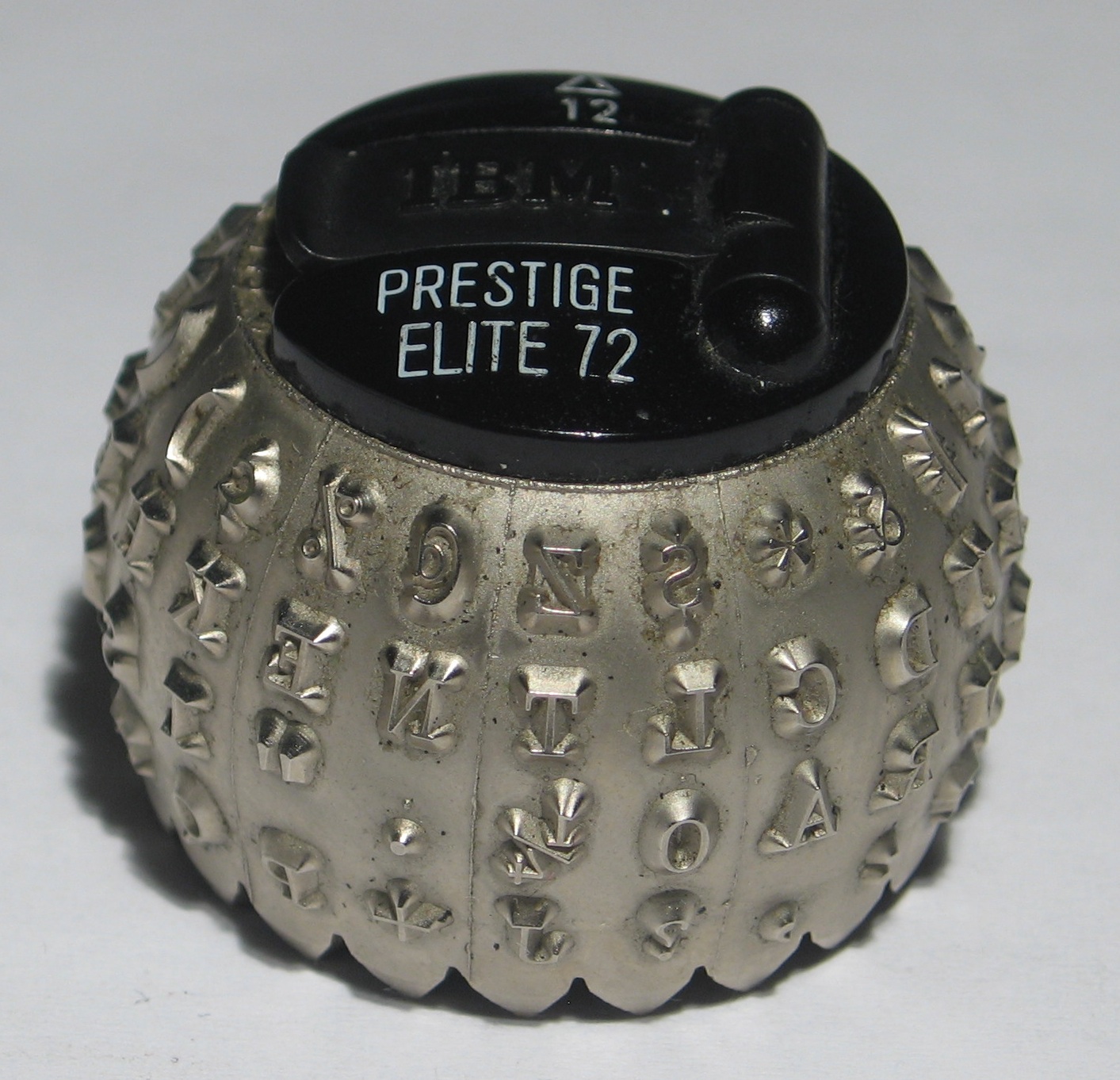

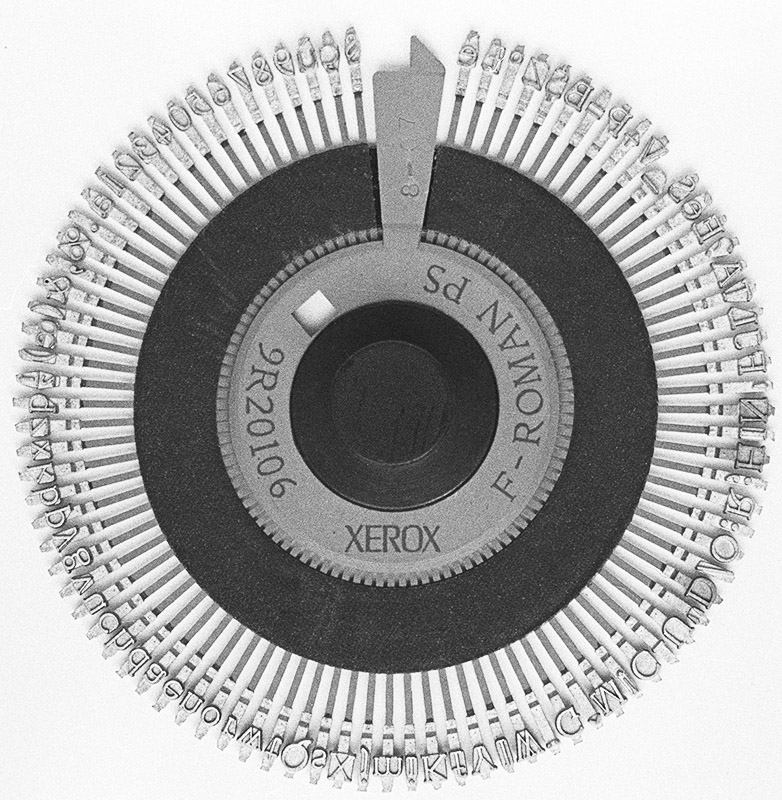

Epson WideCarriage Line Printer

https://en.wikipedia.org/wiki/Dot_matrix_printing

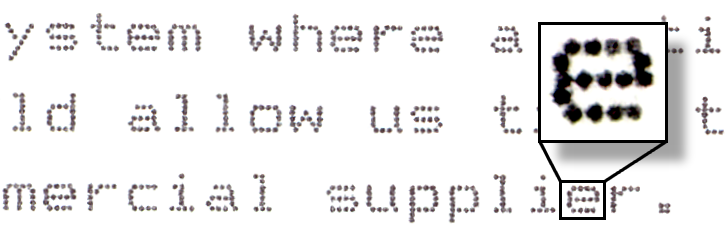

Dot matrix example text

https://en.wikipedia.org/wiki/Dot_matrix_printing

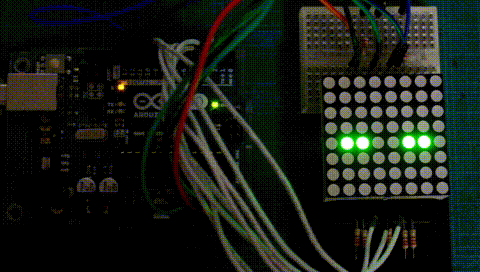

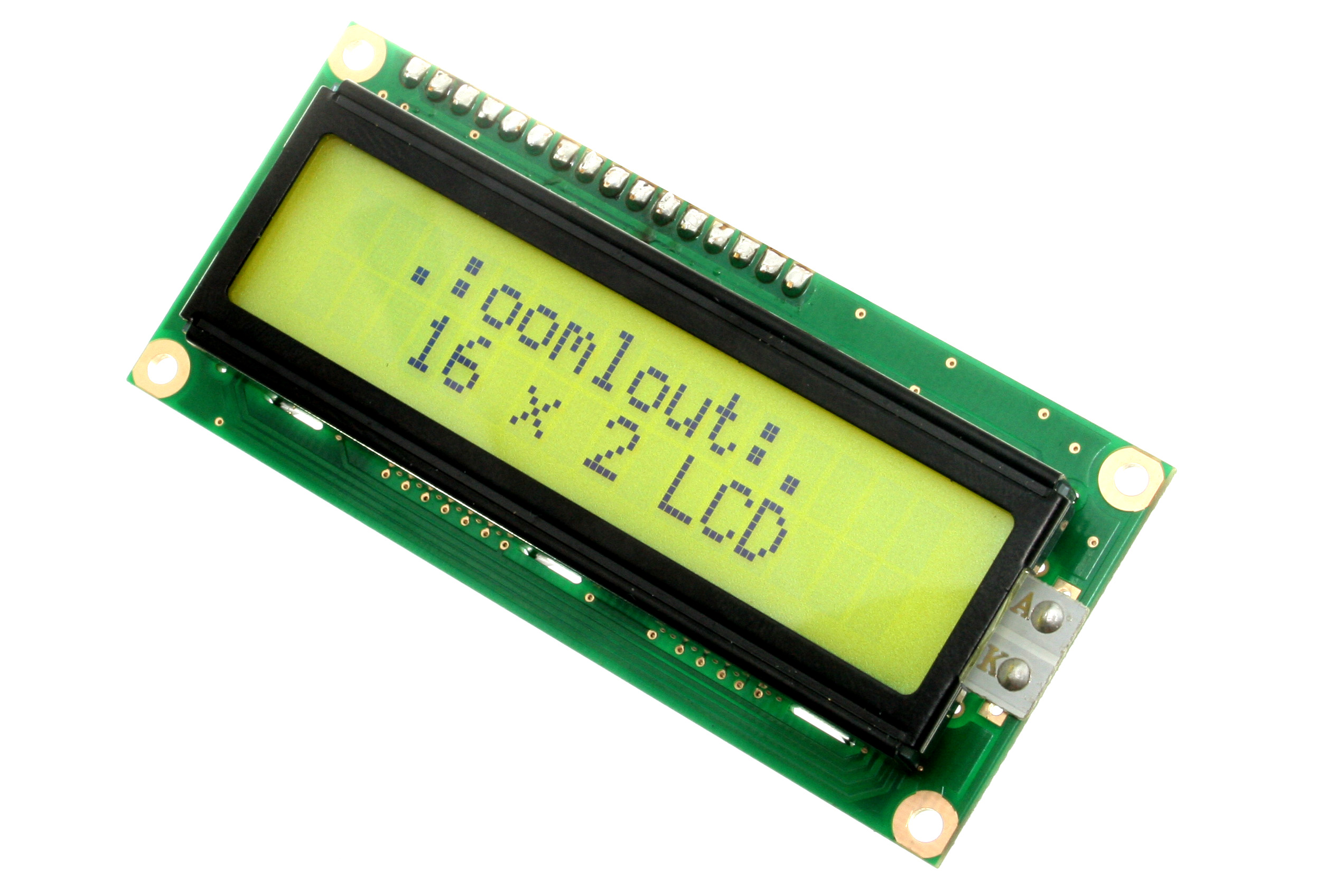

Dot-matrix display

128×16 (Two-lined)
128×32 (Four-lined)
128×64 (Eight-lined)
92×31 (Four or three-lined)
https://en.wikipedia.org/wiki/Dot-matrix_display
https://en.wikipedia.org/wiki/History_of_display_technology

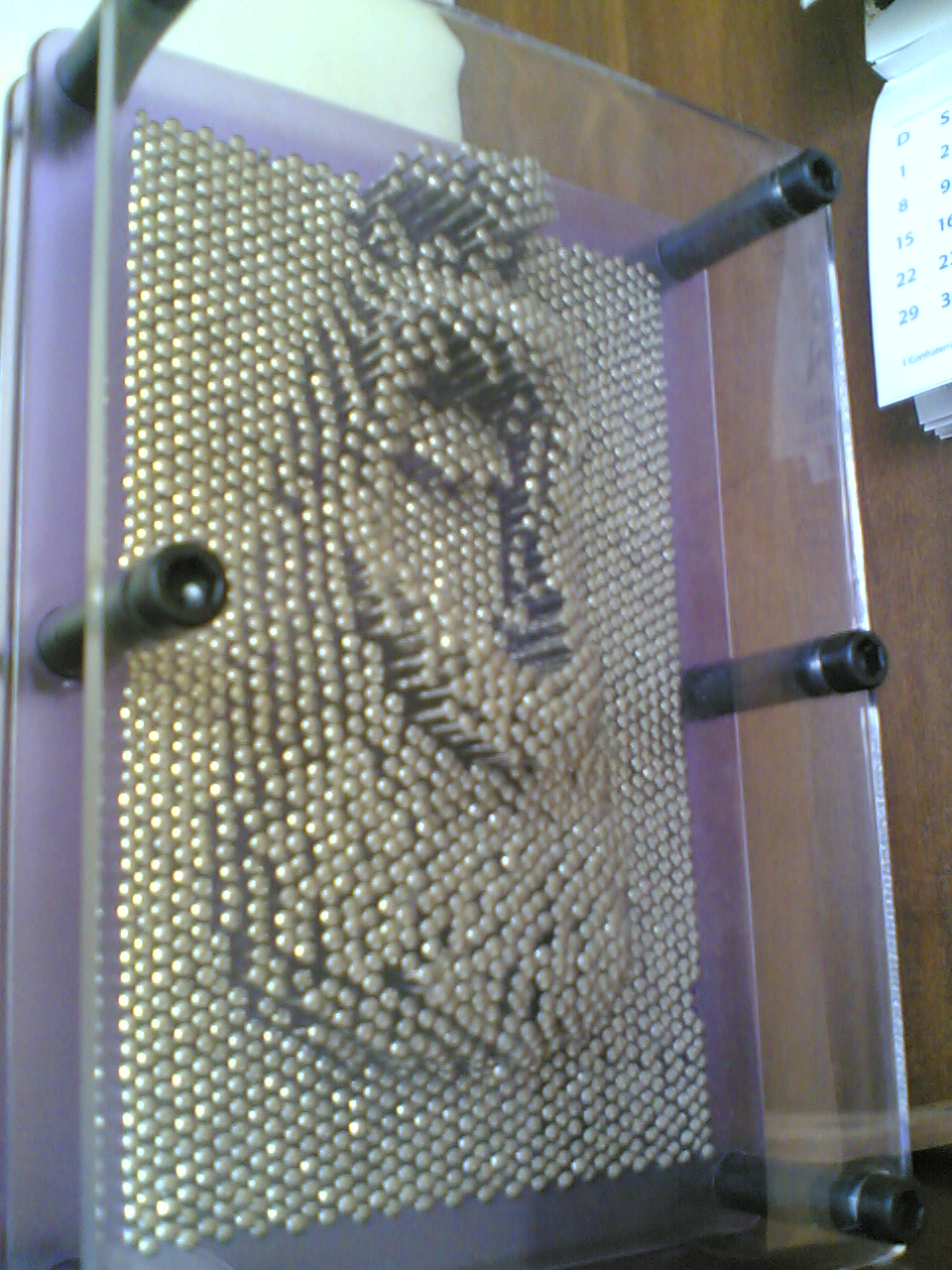

1969 Braille display

https://en.wikipedia.org/wiki/History_of_display_technology

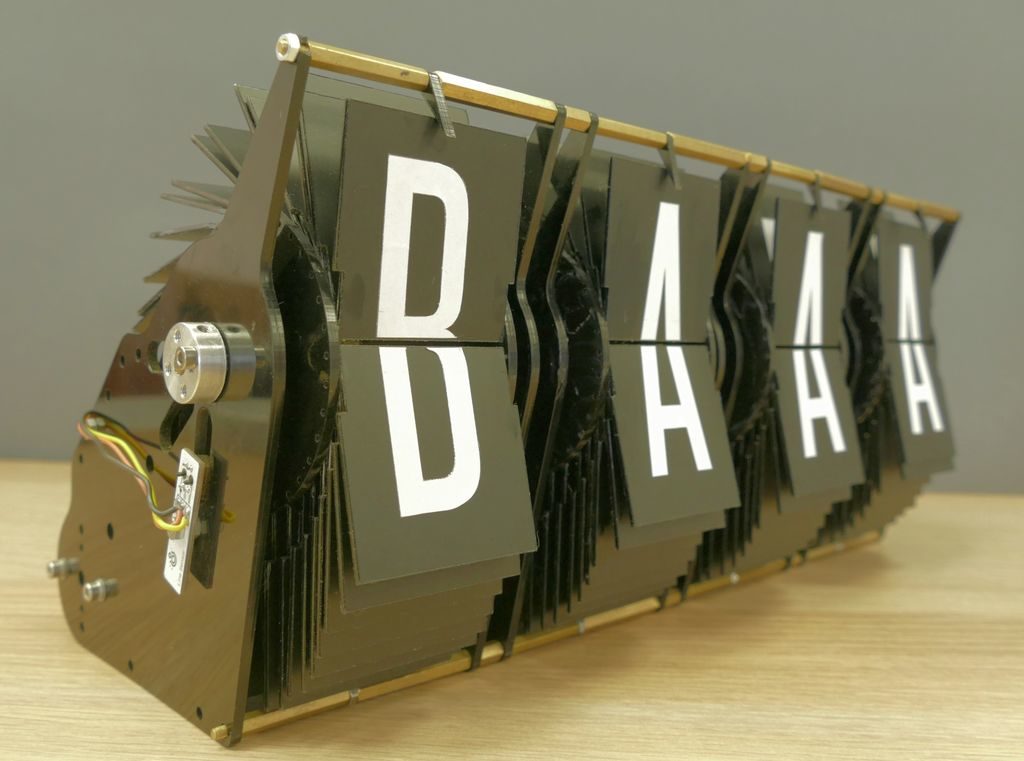

split flap display(I)

http://arduinomania.com/tag/split%20flap%20display

Split-flap display(II)

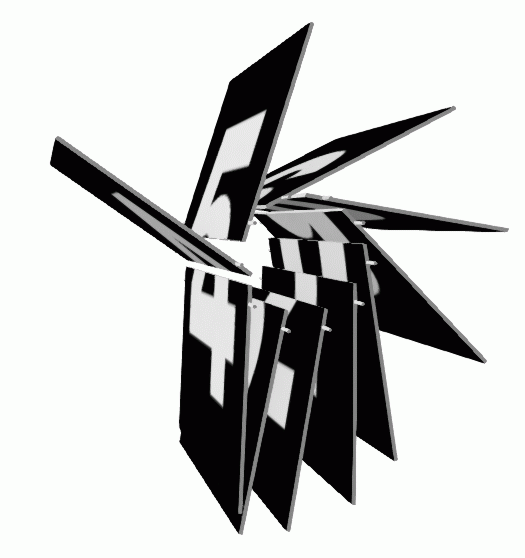

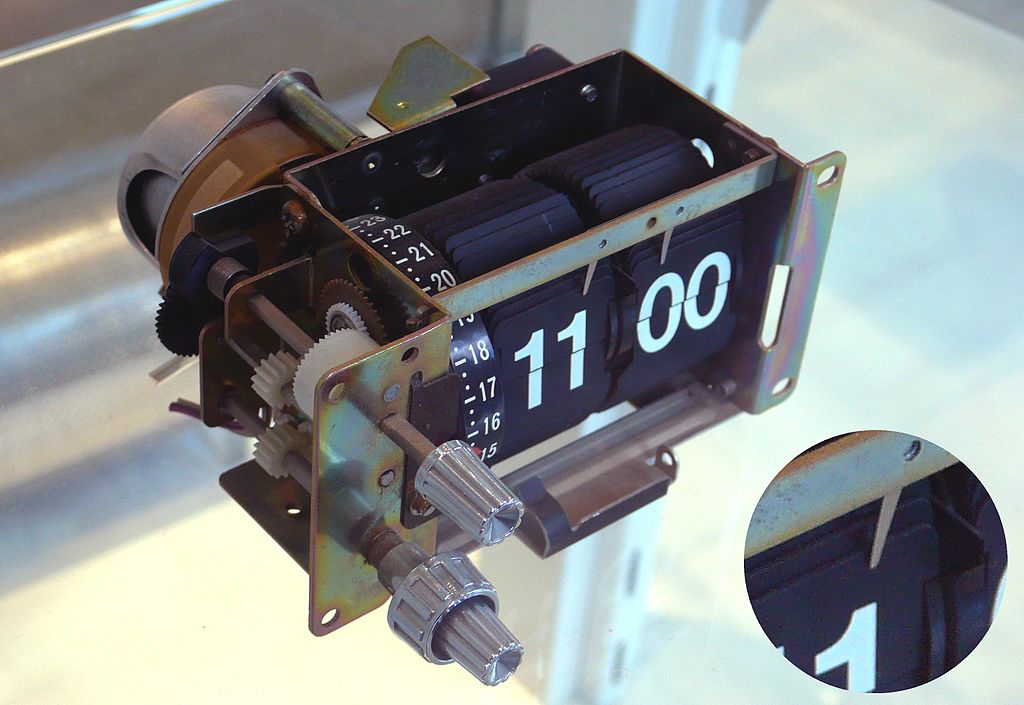

Enlarged inner workings of a split-flap clock

https://en.wikipedia.org/wiki/Split-flap_display

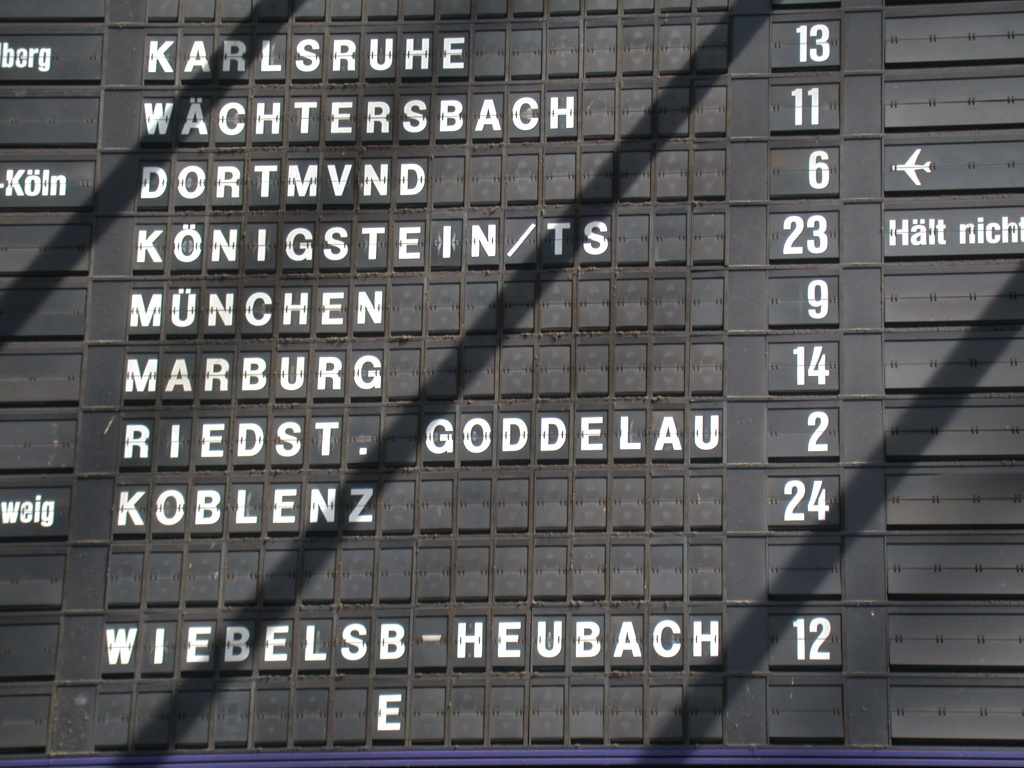

Airport Board with Split-Flip Display

https://en.wikipedia.org/wiki/Split-flap_display

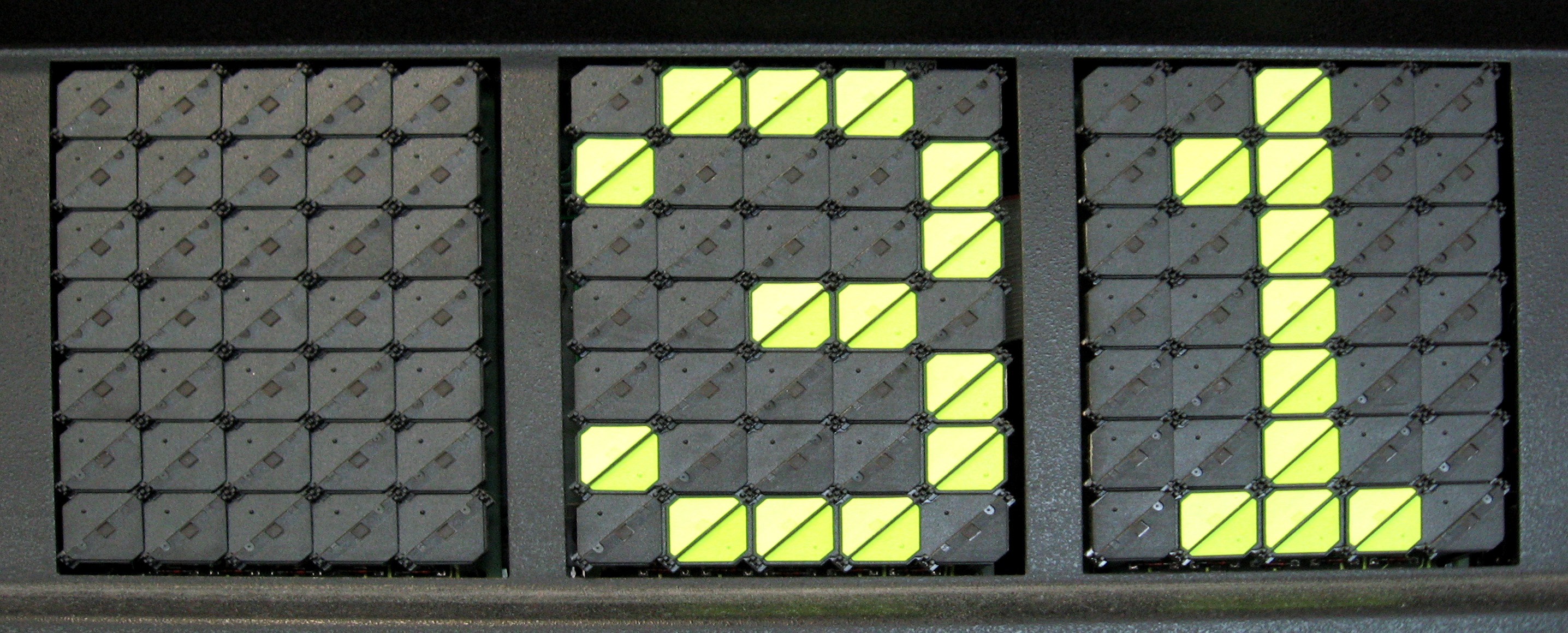

Flip-Dot-Display

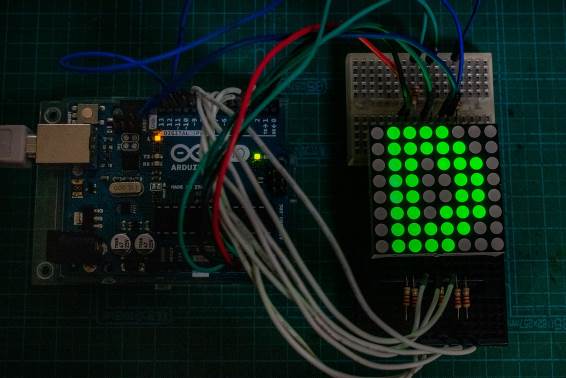

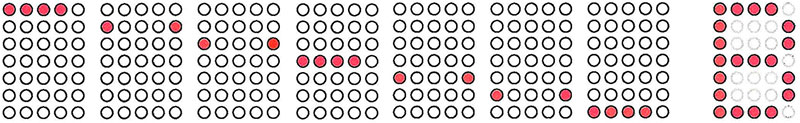

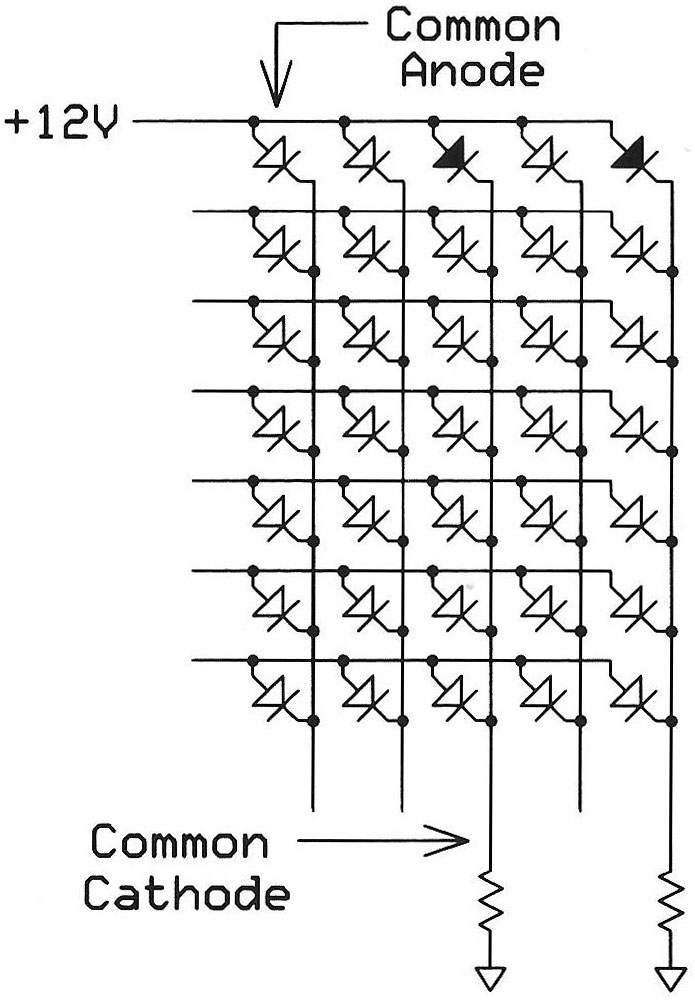

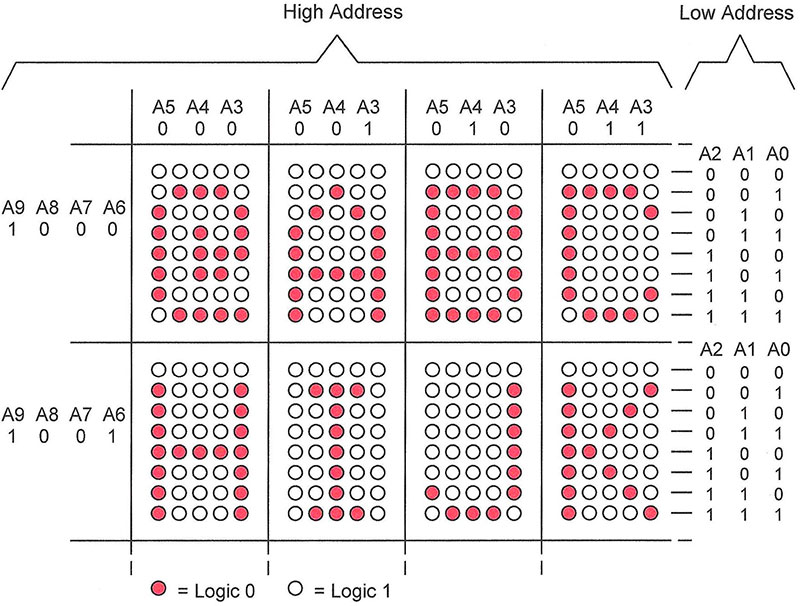

5x7 LED module

https://www.nutsvolts.com/magazine/article/create-an-led-sign-controller

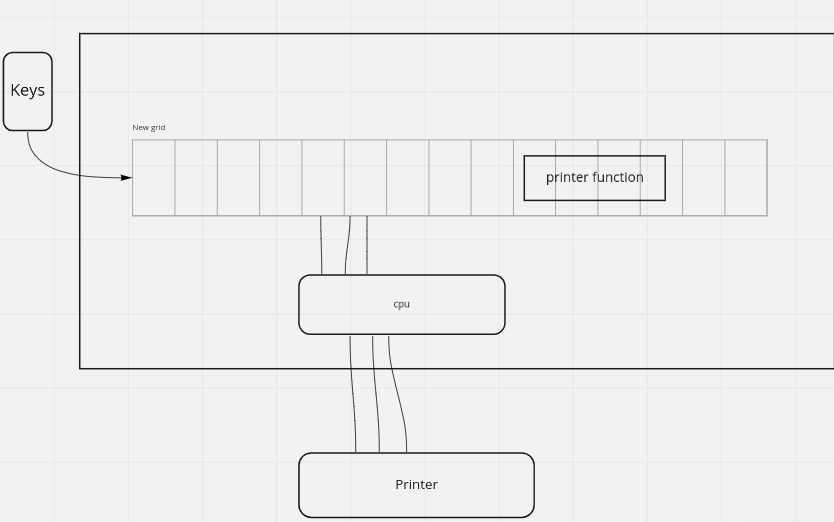

Printer Function

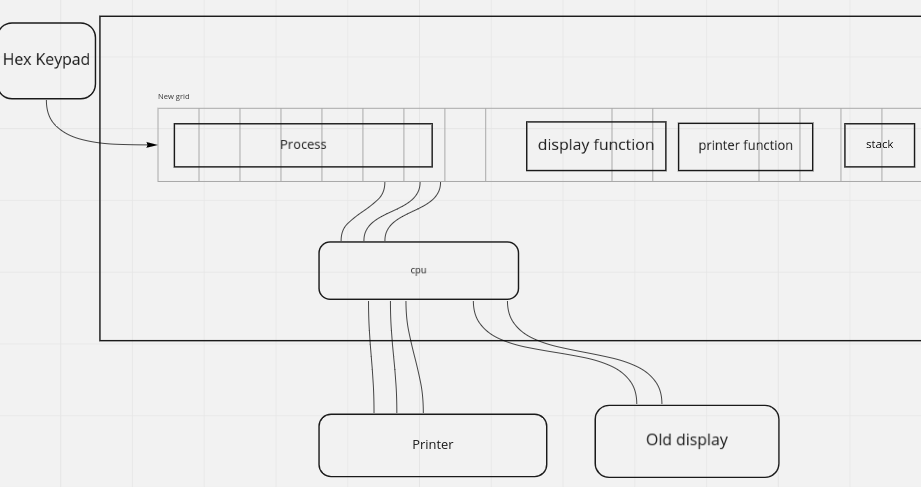

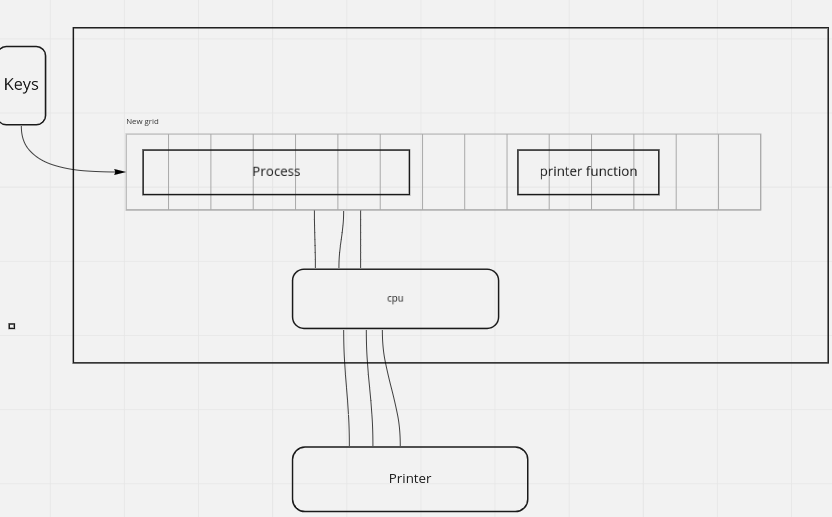

Process along Printer Function

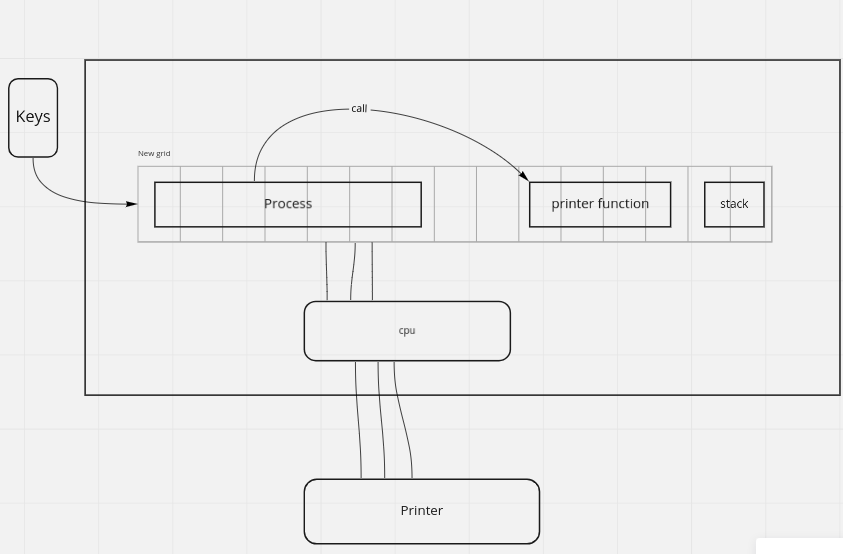

Jump to Printer Procedure

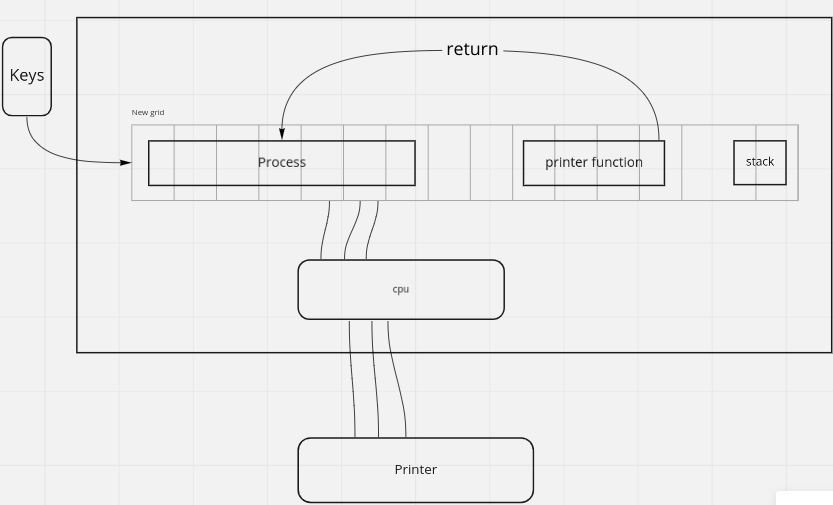

Return from Printer Procedure

Display and Printer Procedure

Adding procedurs to memory

User Process (P)
0	800	2048

P		LED Procedure
0	648	1024	2048

P		LED	7 segment
0	456	1024	1048	1096	2048

P		LED	7	printer
0	456	1024	1048	1096	1256	2048

Users (programmers) should know where these precedures are

YIC50 - Array of Addresses

P		array	LED	7	printer
0	456	1000	1024	1048	1096	1256	2048

Array

1024	1048	1096	1256
0	1	2	3	4

YIC60 - Input Devices

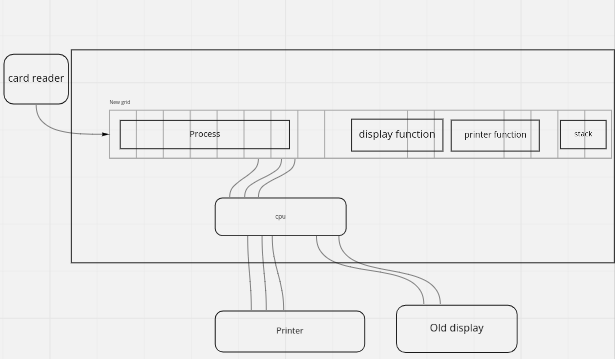

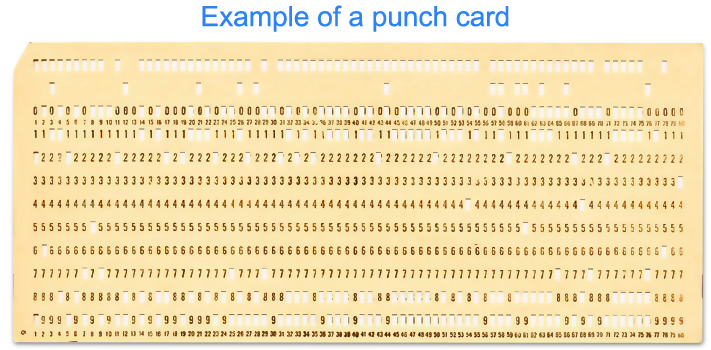

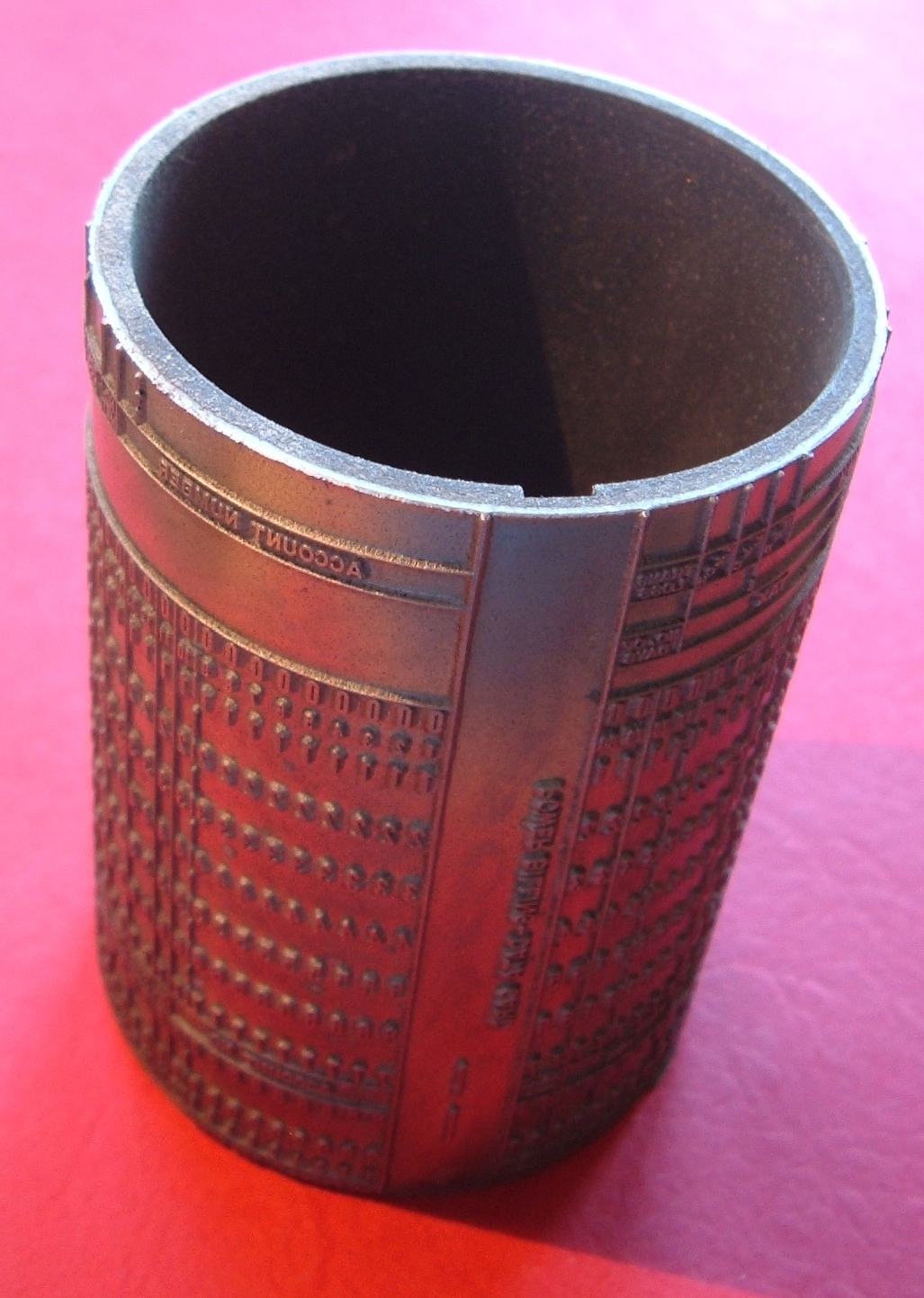

Card Reader
Necessary Loops
Check Errors
Polling Method

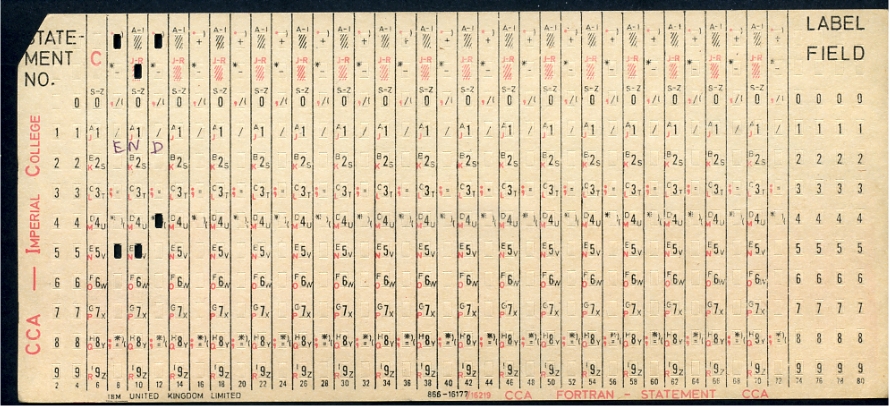

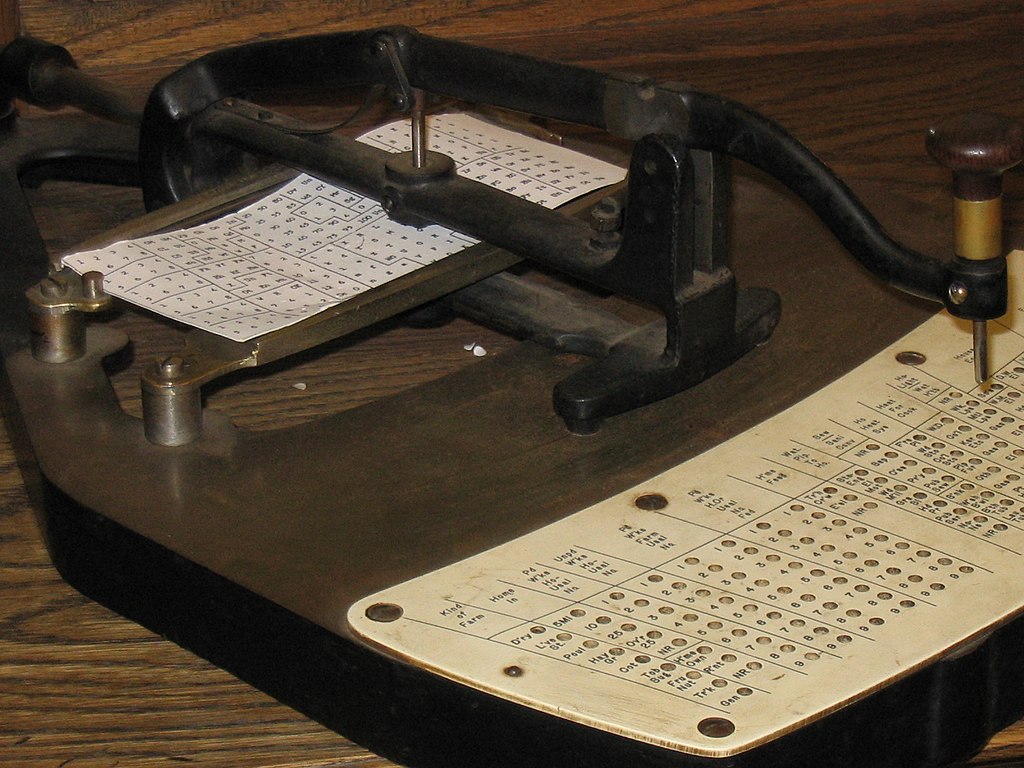

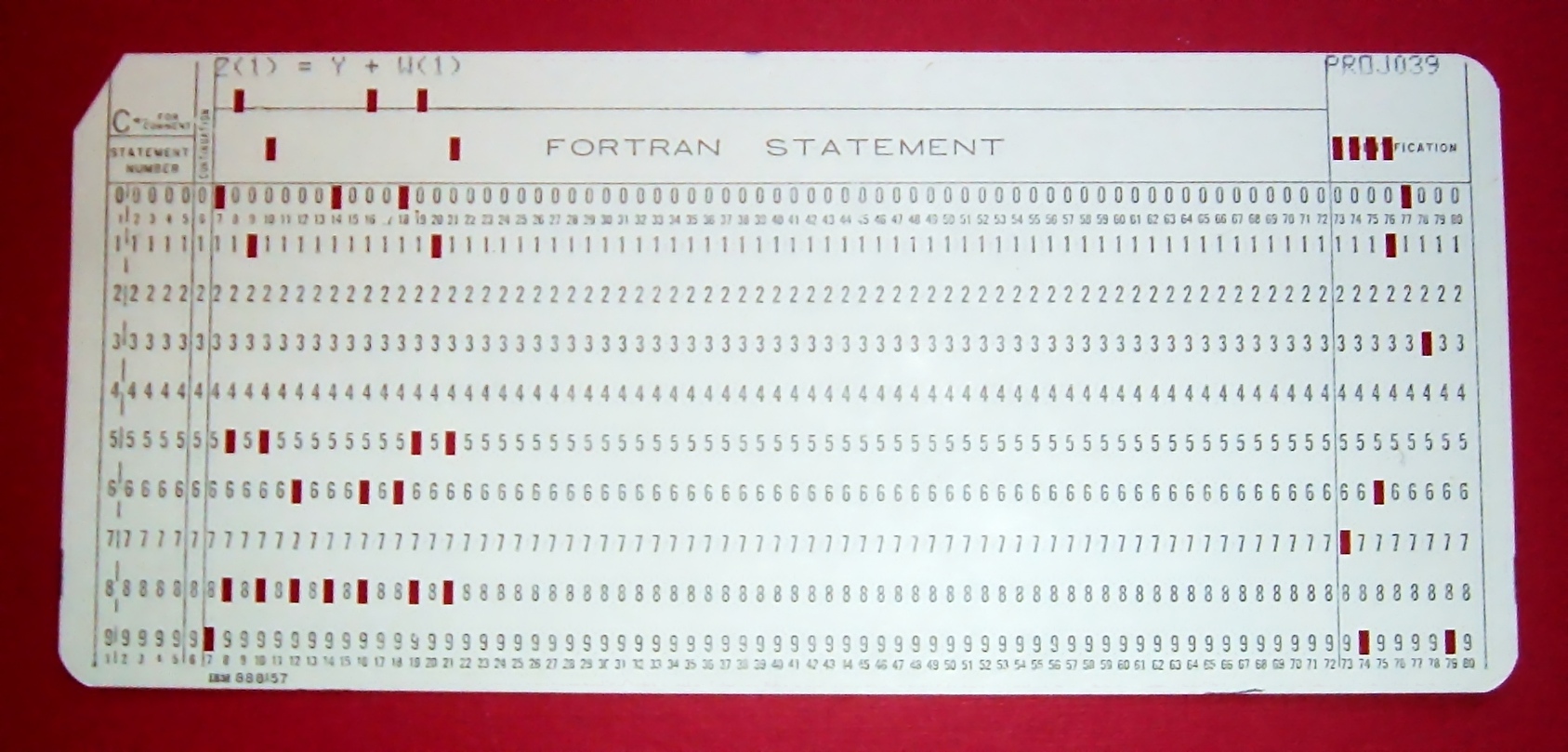

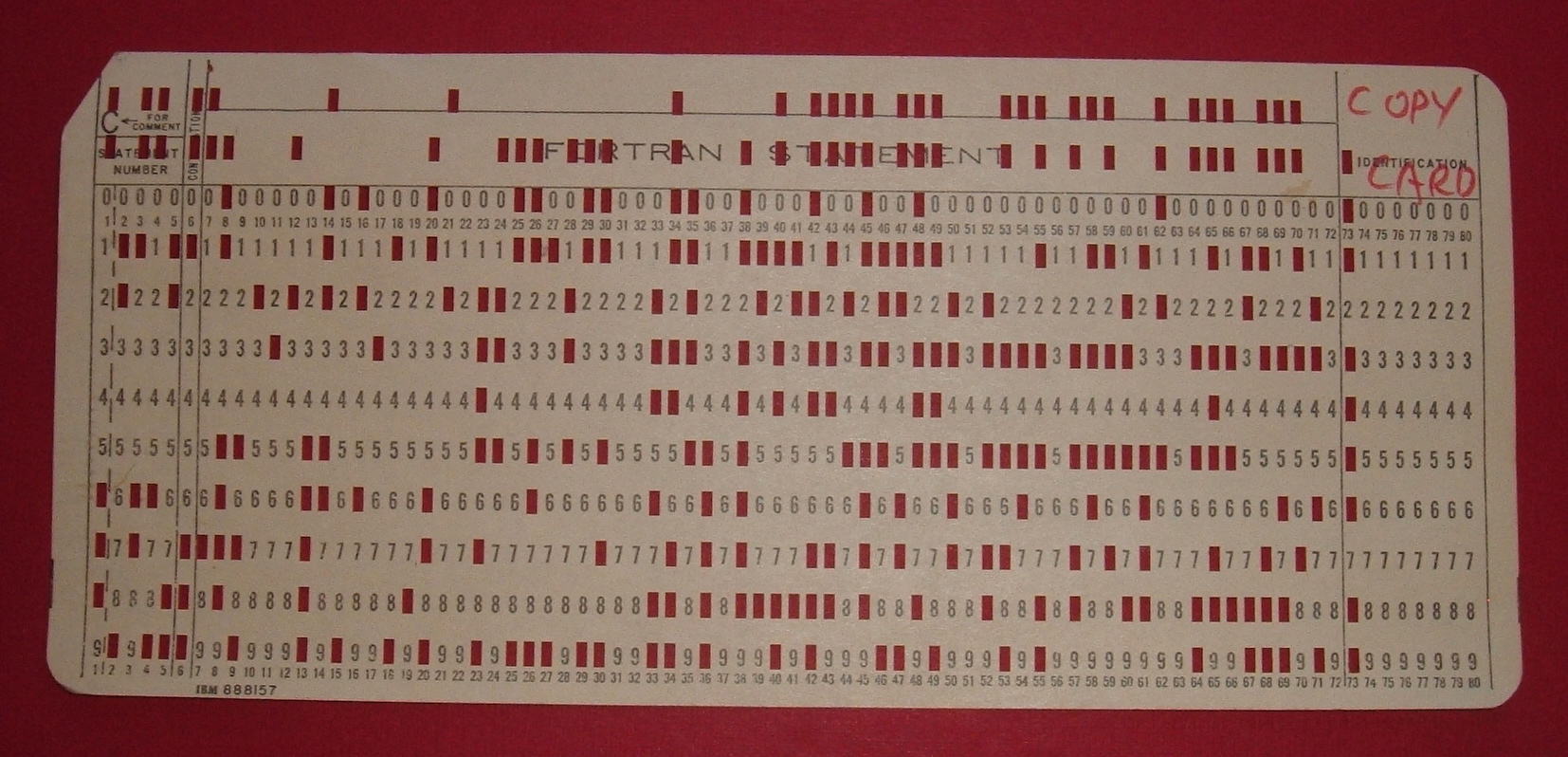

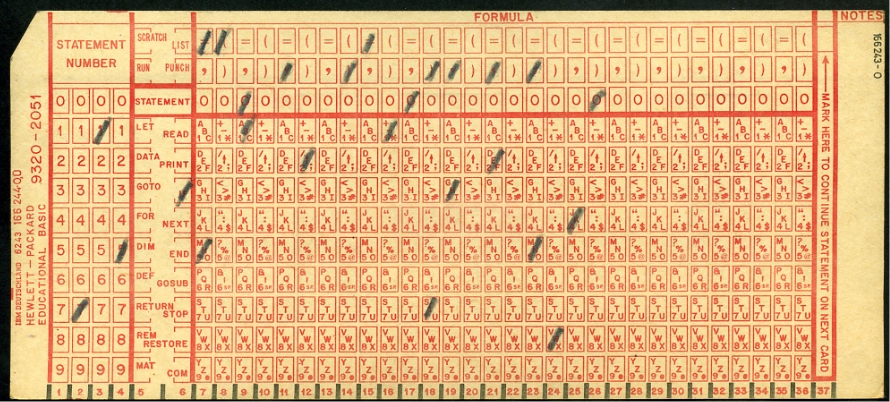

Hollerith and IBM keypunches, 1890

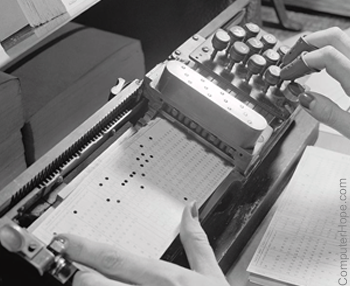

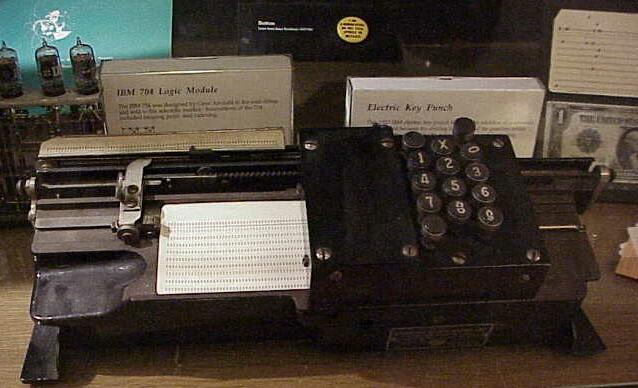

IBM 011 Electric Key Punch(1923)
IBM Type 032 Printing Punch(1935)

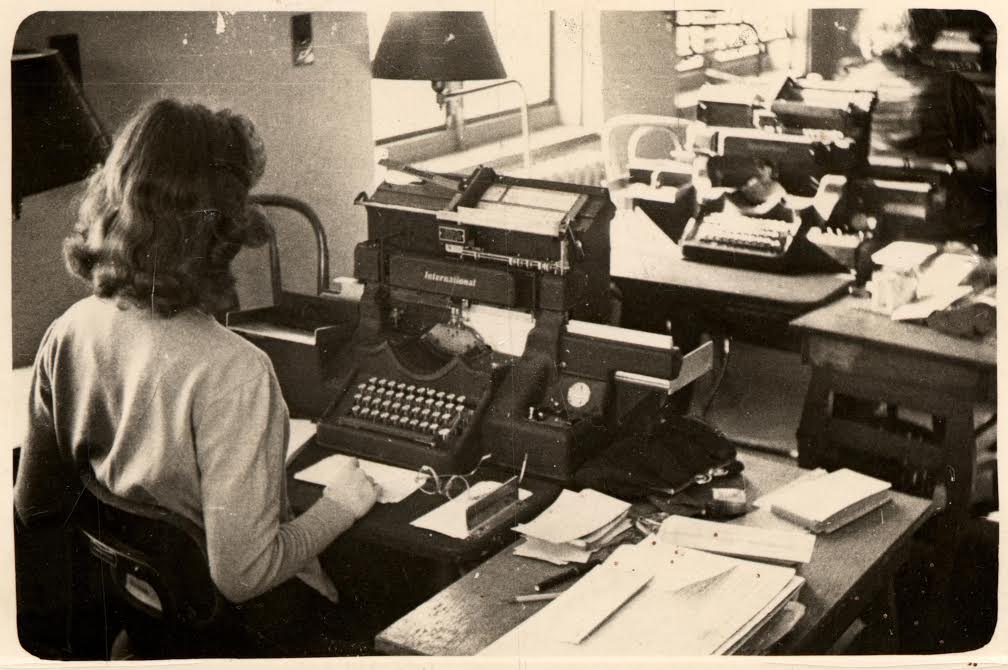

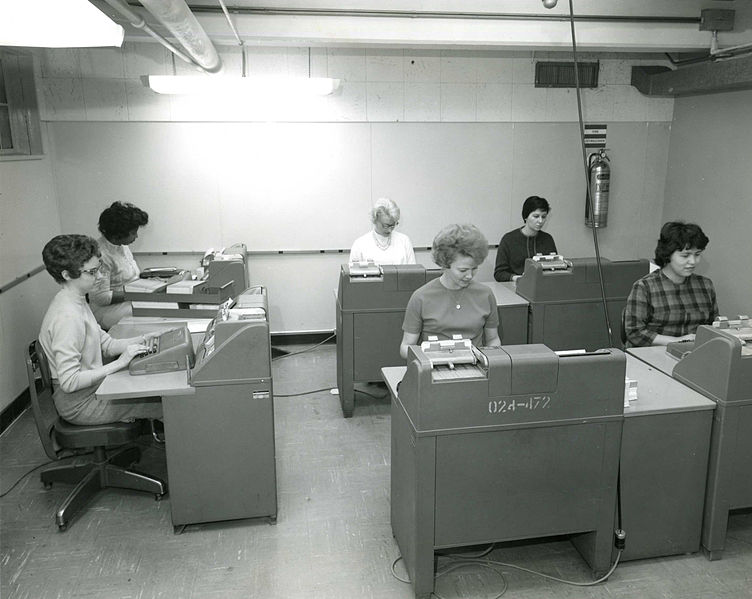

A Key Punch Room in the 1960s

       ORG 0
START, BSA READ1
       STA BYTE1
       LDA BYTE1
       BSZ OUTCH
       HLT

READ1, HEX 0
RDCNT, SKI
       BUN RDCNT
       INP
       BUN (READ1)

OUTCH, HEX 0
       OUT
       BUN (OUTCH)

BYTE1, DEC     0
       END

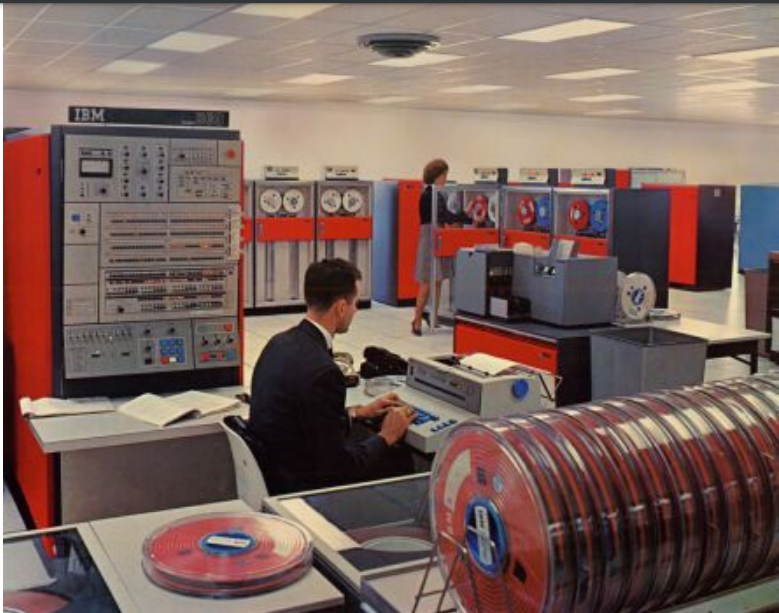

Tape

Simple Input Output Code - YIC60

1         ORG     0
2 START,  BSA     INPUT
3         STA     NUM1
4
5         BSA     INPUT
6         STA     NUM2
7
8         LDA     NUM1
9         ADD     NUM2
10         STA     RESULT
11
12         BSA     OUTPUT
13
14         HLT

15 INPUT,  HEX     0
16 POLL,   SKI
17         BUN     POLL
18         INP
19         BUN     (INPUT)
20
21 OUTPUT, HEX     0
22 OUT_P,  SKO
23         BUN     OUT_P
24         OUT
25         BUN     (OUTPUT)
26
27 // Data Section
28 NUM1,   DEC     0
29 NUM2,   DEC     0
30 RESULT, DEC     0
31
32         END

YIC60 - Array of Addresses

P		array	LED	7	printer
0	456	1000	1024	1048	1096	1256	2048

Array

1024	1048	1096	1256
0	1	2	3	4

YIC60 code with array(I)

1 START   BSA     (PVT_INPUT)
2         STA     NUM1
3         BSA     (PVT_INPUT)
4         STA     NUM2
5         LDA     NUM1
6         ADD     NUM2
7         STA     RESULT
8         BSA     (PVT_OUTPUT)
9         HLT
10 NUM1,   DEC     0
11 NUM2,   DEC     0
12 RESULT, DEC     0
13
14         ORG     150
15 PVT_INPUT,  HEX 200
16 PVT_OUTPUT, HEX 220
17
18         ORG     200
19 INPUT,  HEX     0
20 IN_POLL,SKI
21         BUN     IN_POLL
22         INP
23         BUN     (INPUT)

19         ORG     220
20 OUTPUT, HEX     0
21         STA     TEMP_OUT
22
23 OUT_POLL,SKO
24         BUN     OUT_POLL
25         LDA     TEMP_OUT
26         OUT
27         BSA     (PVT_DELAY)
28         BUN     (OUTPUT)
29
30         ORG     240
31 DELAY,  HEX     0
32         LDA     DELAY_COUNT
33         STA     DELAY_CTR
34
35 DELAY_LOOP,
36         LDA     DELAY_CTR

YIC60 code with array(II)

1 DELAY,  HEX     0
2         LDA     DELAY_COUNT
3         STA     DELAY_CTR
4
5 DELAY_LOOP,
6         LDA     DELAY_CTR
7         SZA
8         BUN     CONTINUE_DELAY
9         BUN     (DELAY)
10
11 CONTINUE_DELAY,
12         DEC
13         STA     DELAY_CTR
14         BUN     DELAY_LOOP
15
16         ORG     300
17 TEMP_OUT,   DEC     0
18 DELAY_COUNT,DEC     10

21 DELAY_CTR,  DEC     0
22 PVT_DELAY,  HEX     52
23         END

YIC70 - Adding Loader

Loader	P		array	LED	7	printer
0	100	556	1000	1024	1048	1096	1256	2048

Array

1024	1048	1096	1256
0	1	2	3	4

1 START,  BSA     READ_COUNT
2         STA     BYTE_COUNT
3         BSA     INIT_LOAD
4         BSA     LOAD_LOOP
5         BSA     EXECUTE
6         BUN     0
7         HLT
8
9 READ_COUNT, HEX 0
10 RD_CNT, SKI
11         BUN     RD_CNT
12         INP
13         BUN     READ_COUNT I
14
15 INIT_LOAD, HEX 0
16         LDA     ZERO
17         STA     LOAD_PTR
18         STA     CURRENT_IDX
19         BUN     INIT_LOAD I
20
21 LOAD_LOOP, HEX 0
22         LDA     CURRENT_IDX

21         SUB     BYTE_COUNT
22         SPA
23         BUN     LOAD_BYTE
24         BUN     LOAD_LOOP I
25
26 LOAD_BYTE,
27         BSA     READ_BYTE
28         STA     TEMP_BYTE
29
30         LDA     LOAD_PTR
31         STA     STORE_PTR
32         LDA     TEMP_BYTE
33         STA     STORE_PTR I
34
35         LDA     LOAD_PTR
36         INC
37         STA     LOAD_PTR

1         STA     LOAD_PTR
2         LDA     CURRENT_IDX
3         INC
4         STA     CURRENT_IDX
5         BUN     LOAD_LOOP
6
7 READ_BYTE, HEX 0
8 RD_BYT, SKI
9         BUN     RD_BYT
10         INP
11         BUN     READ_BYTE I
12
13         ORG     128
14 EXECUTE, HEX 0
15
16         LDA     ZERO
17         STA     RESULT
18         BUN     EXECUTE I
19
20         ORG     64
21 ZERO,       DEC     0

21 BYTE_COUNT, DEC     0
22 LOAD_PTR,   HEX     128
23 CURRENT_IDX,DEC     0
24 TEMP_BYTE,  DEC     0
25 STORE_PTR,  HEX     0
26 RESULT,     DEC     0
27
28         END

YIC75 Relative Address

address binding, absolute and relocate loader

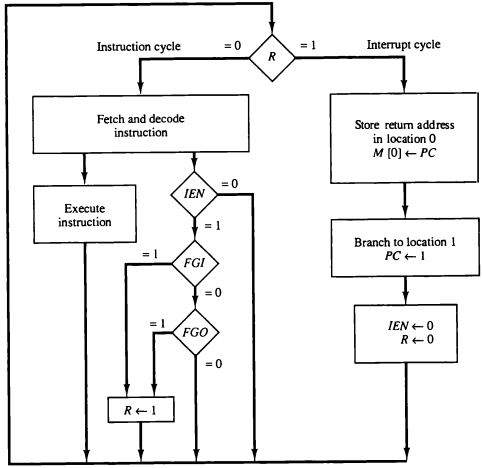

YIC80 - Interrupt

Interrupt-Driven Program

1         BUN     MAIN
2         BUN     ISR
3
4 MAIN,   LDA     ZERO
5         STA     COUNT
6         ION
7
8 WORK,   LDA     COUNT
9         INC
10         STA     COUNT
11         BUN     WORK
12
13 ISR,    STA     SAVE
14         BSA     IO
15         ION
16         LDA     SAVE
17         BUN     0  I

18 IO,     HEX     0
19         SKI
20         BUN     OUTPUT
21         INP
22         STA     BUFFER
23         BUN     IO  I
24 OUTPUT, SKO
25         BUN     IO  I
26         OUT
27         BUN     IO  I
28
29 ZERO,   DEC     0
30 COUNT,  DEC     0
31 SAVE,   DEC     0
32 BUFFER, DEC     0
33         END

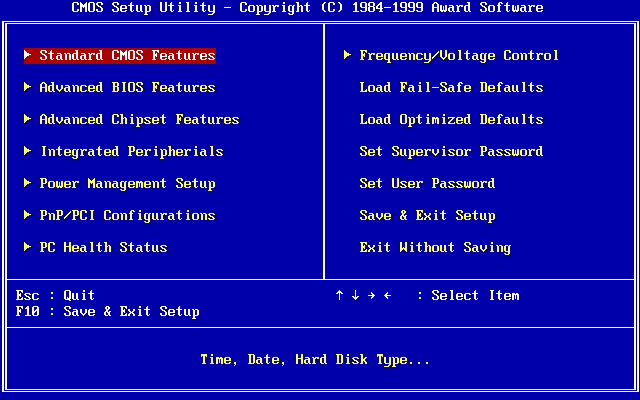

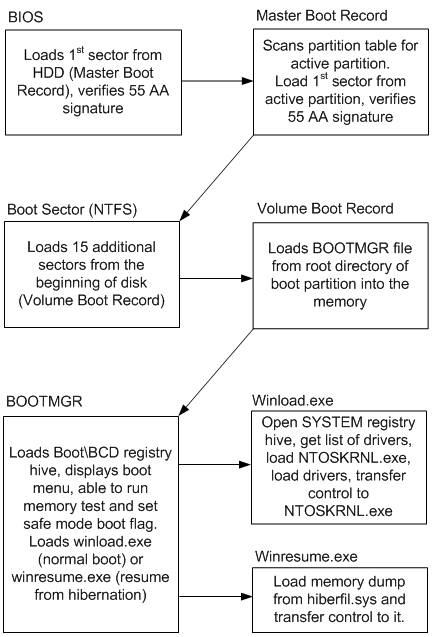

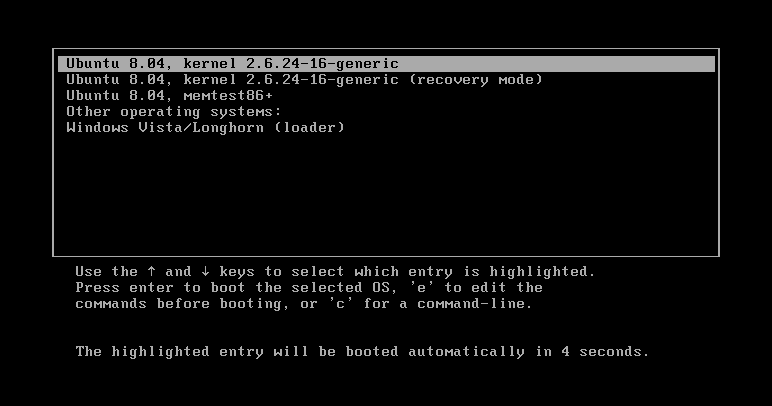

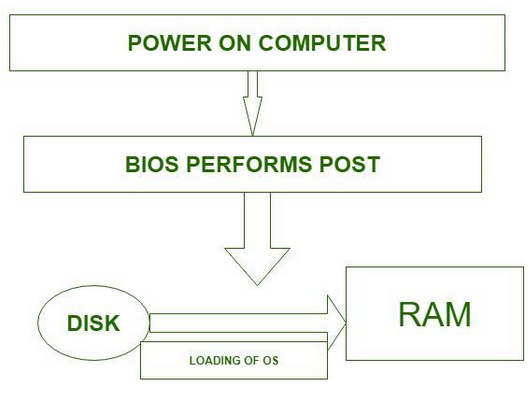

Loader with interrupt (bootstrap)

# Advanced: Buffered Input with BSA Subroutines
src/in/Interrupt_Driven_Program_with_BSA_Subroutines_Advanced_with_buffer.asm
src/in/Interrupt_Driven_Program_with_BSA_Subroutines_Advanced_with_buffer_comments.asm

# Enhanced bootstrap loader with error checking
src/in/Bootstrap_Loader_Program_More_Robust_Version_with_Error_Checking.asm

# Relocating Bootstrap Loader with Base Register
src/in/loader4_base_register_comments.asm


# Simple Bootstrap Loader with Absolute Addressing
src/in/loader7_interrupt_Simple_Bootstrap_Loader_with_Absolute_Addressing.asm
src/in/loader7_interrupt_Simple_Bootstrap_Loader_with_Absolute_Addressing_comments.asm

src/in/loader7_user_program_comments.asm
src/in/loader7_user_program.asm


# Uses interrupt-driven I/O instead of polling
src/in/loader10_interrupt.asm
src/in/loader10_interrupt_comments.asm

# Interrupt-driven program that gets loaded
src/in/loader10_loaded_program.asm
src/in/loader10_loaded_program_comments.asm

1   ORG 0
2   BUN LOADER
3   BUN ISR
4   ORG 100
5 LOADER,LDA ZERO
6   STA BYTES_LOADED
7   STA PROG_SIZE
8   STA INP_BUF
9 W4SIZE,LDA INP_BUF
10   SZA
11   BUN STORE_SIZE
12   BUN W4SIZE
13 STORE_SIZE,
14   LDA INP_BUF
15   STA PROG_SIZE
16   STA INP_BUF
17   BSA LOAD_PROGRAM
18   ION
19   BSA USER_PROG I
20   BUN LOADER
21
22 ISR,STA SAVE_AC
23   SKI
24   BUN CHECK_OUTPUT
25   INP
26   STA INP_BUF
27   BUN ISR_EXIT
28 CHECK_OUTPUT,
29   SKO

30   BUN ISR_EXIT
31   LDA OUTPUT_PENDING
32   SZA
33   BUN HAS_PENDING_OUTPUT
34   BUN ISR_EXIT
35 HAS_PENDING_OUTPUT,
36   LDA OUTPUT_DATA
37   OUT
38   LDA ZERO
39   STA OUTPUT_PENDING
40 ISR_EXIT,
41   LDA SAVE_AC
42   BUN INDIRECT
43 SYS_WRITE_HANDLER, HEX 0
44   STA OUTPUT_DATA
45   LDA ONE
46   STA OUTPUT_PENDING
47   SKO
48   BUN DEVICE_READY
49   BUN SYS_WRITE_RETURN
50 DEVICE_READY,
51   LDA OUTPUT_DATA
52   OUT
53   LDA ZERO
54   STA OUTPUT_PENDING
55 SYS_WRITE_RETURN,
56   BUN SYS_WRITE_HANDLER I
57
58 LOAD_PROGRAM, HEX 0
59   LDA ZERO

60   STA LOAD_INDEX
61 LOAD_LOOP,
62   LDA LOAD_INDEX
63   SUB PROG_SIZE
64   SPA
65   BUN WAIT_FOR_BYTE
66   BUN LOAD_DONE
67 WAIT_FOR_BYTE,
68   LDA INP_BUF
69   SZA
70   BUN STORE_BYTE
71   BUN WAIT_FOR_BYTE
72 STORE_BYTE,
73   LDA LOAD_INDEX
74   ADD USER_PROG
75   STA STORE_ADDR
76   LDA INP_BUF
77   STA STORE_ADDR I
78   STA INP_BUF
79   LDA LOAD_INDEX
80   INC
81   STA LOAD_INDEX
82   BUN LOAD_LOOP
83 LOAD_DONE,
84   BUN LOAD_PROGRAM I
85
86 USER_PROG, HEX 500
87 ZERO,      DEC 0
88 ONE,       DEC 1
89 PROG_SIZE, DEC 0
90 LOAD_INDEX,DEC 0

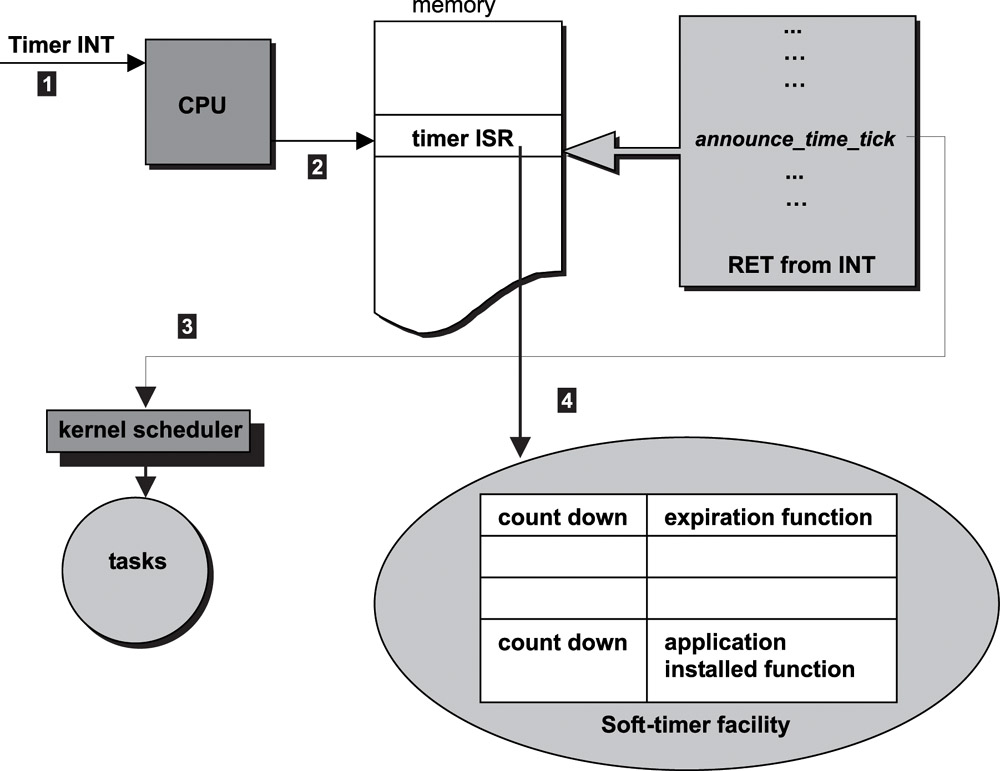

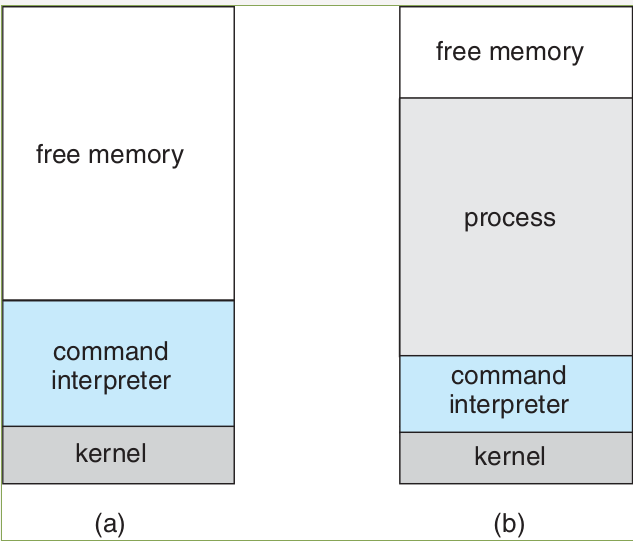

Interrupt and Relative Address Problem

Normal execution

Interrupt time

ISR needs
1. predictable, fixed addresses
2. resources across all processes
3. Safety

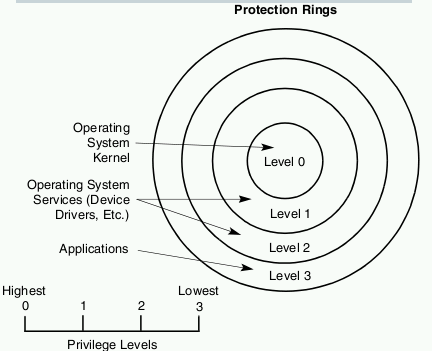

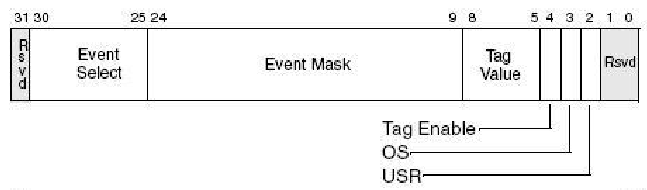

Solution Dual Address Spaces

User mode (MOD 1)
Kernel mode (MOD 0)

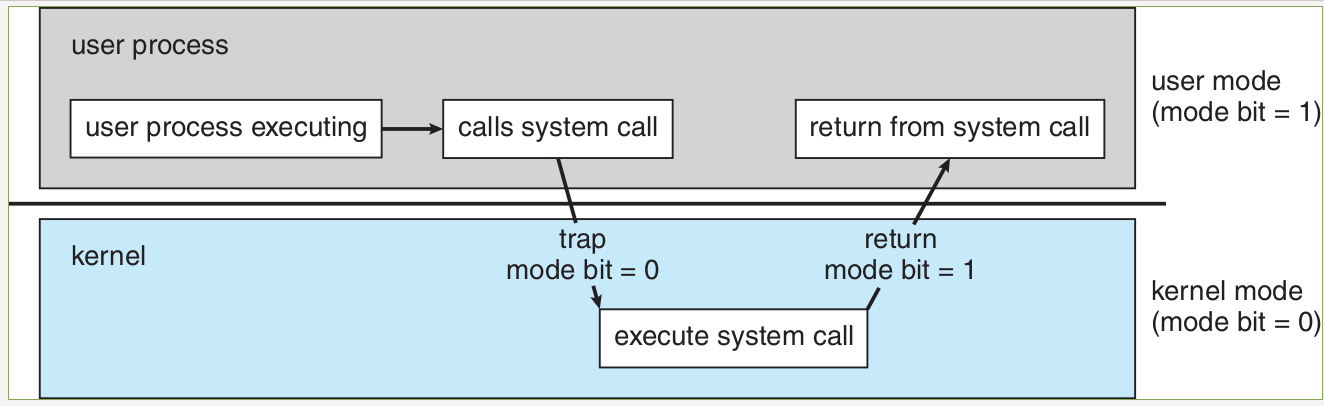

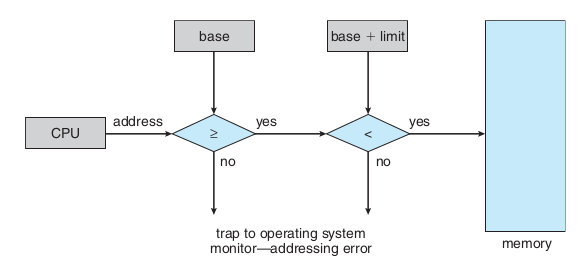

YIC90 - Memory and CPU Protection

SKT like SKI and SKO

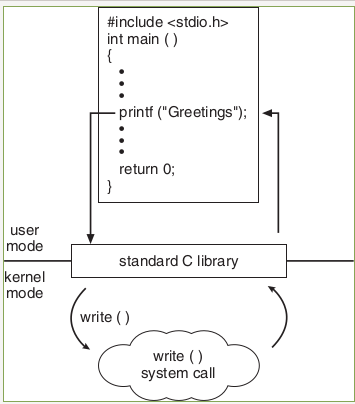

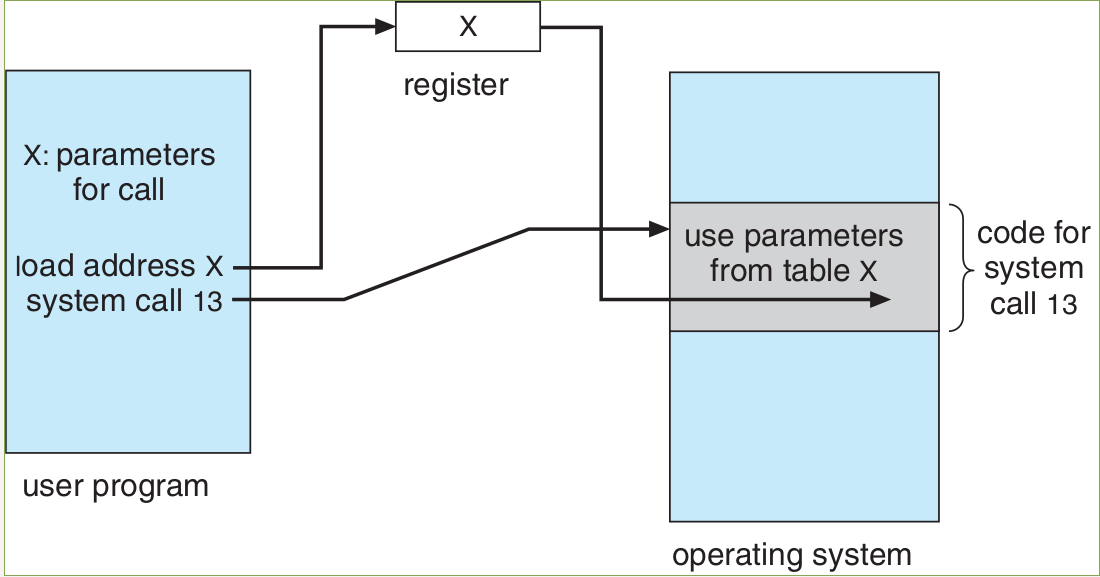

System Call ?
Change registers by the running process

Software Interrupt

ISR,    STA     SAVE
        BSA     IO
        ION
        LDA     SAVE
        BUN     0  I

IO,     HEX     0
        SKI
        BUN     OUTPUT
        INP
        STA     BUFFER
        BUN     IO  I
OUTPUT, SKO
        BUN     TRAP
        OUT
TRAP,   SKT
        BUN     IO  I
        BUN     100

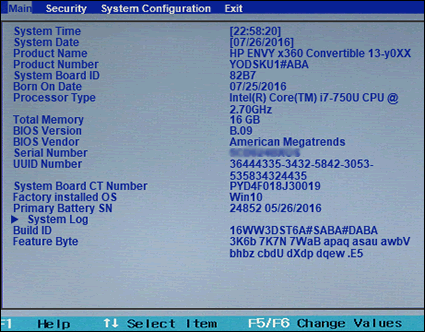

mov ah, 0x0e
; function number = 0Eh
; : Display Character
mov al, '!'
; AL = code of character
; to display
int 0x10
; call INT 10h,
; BIOS video service
