Operating System
Disk management
Ahmad Yoosofan
Spring 2024
Disk

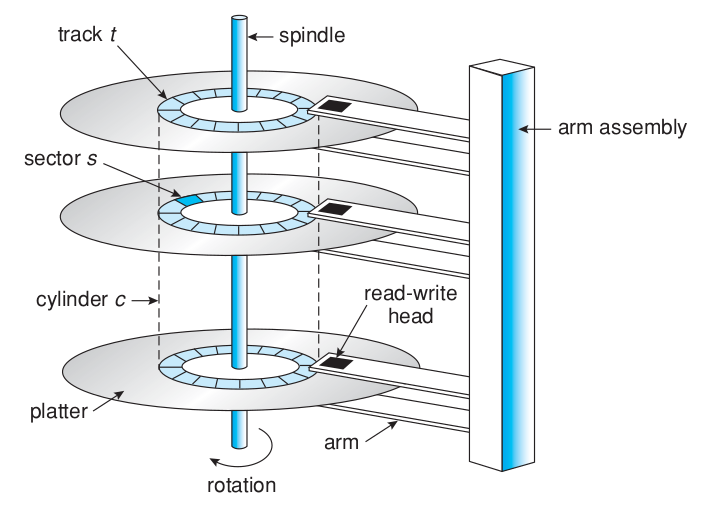

Disk structure

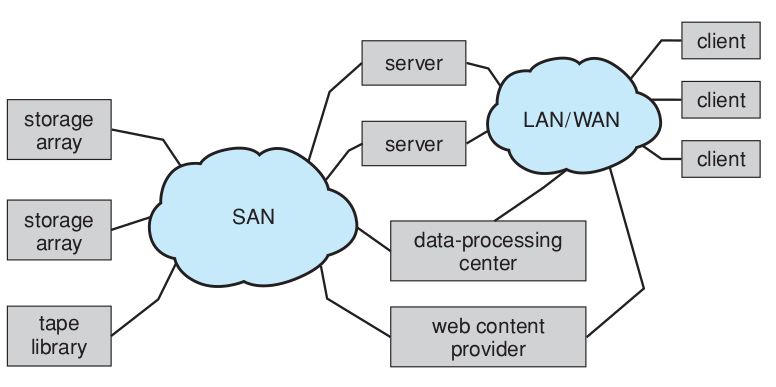

Storrage Areaa Network(SAN)
File Management System
File Access Methods
- Sequential Access

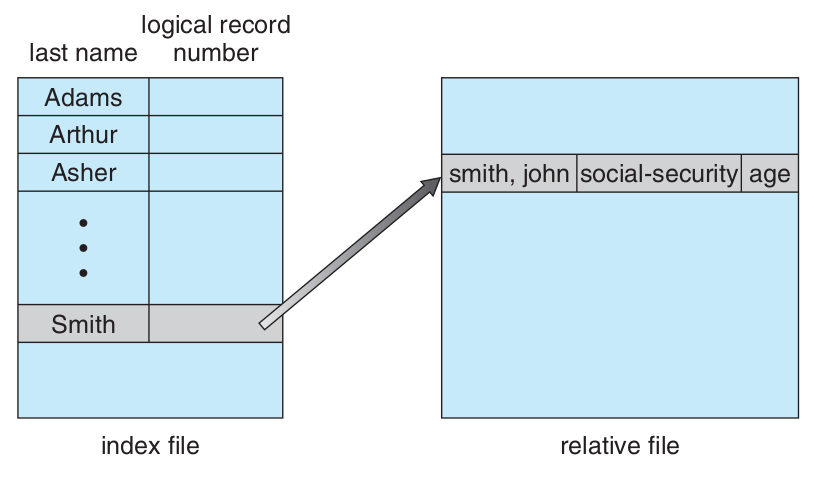

- Random Access
Simple Access Disk

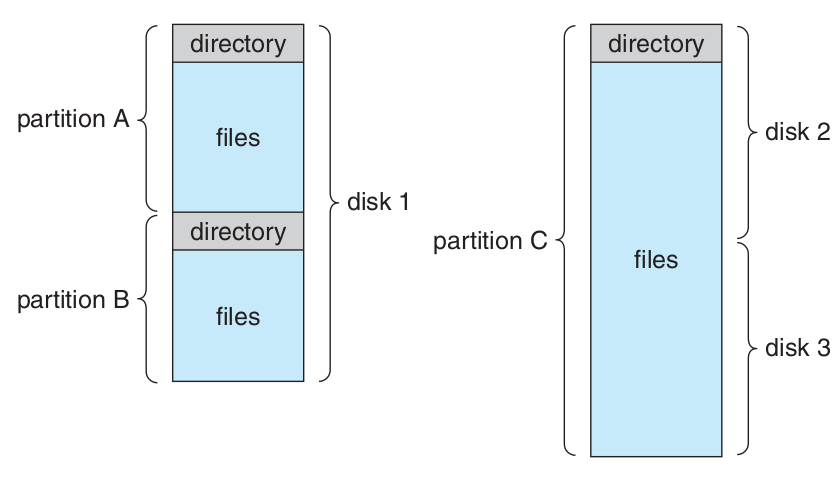

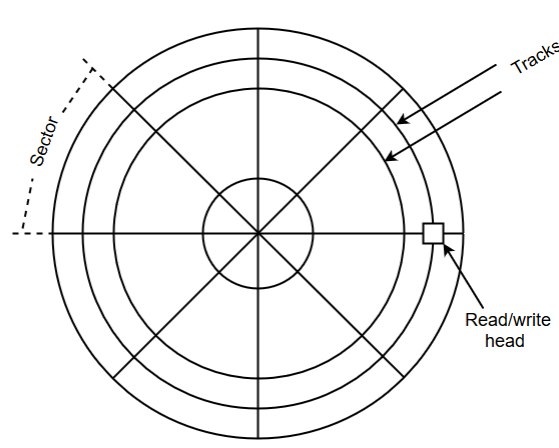

Simple Disk Organization

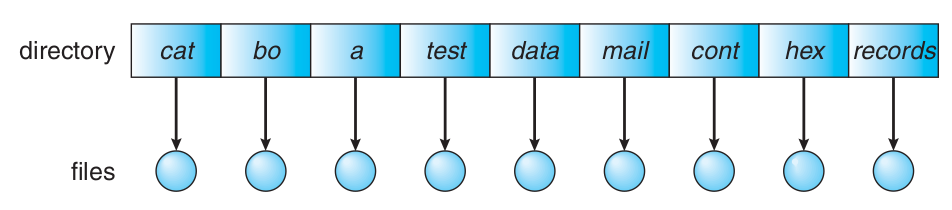

One Level Structure of Folders

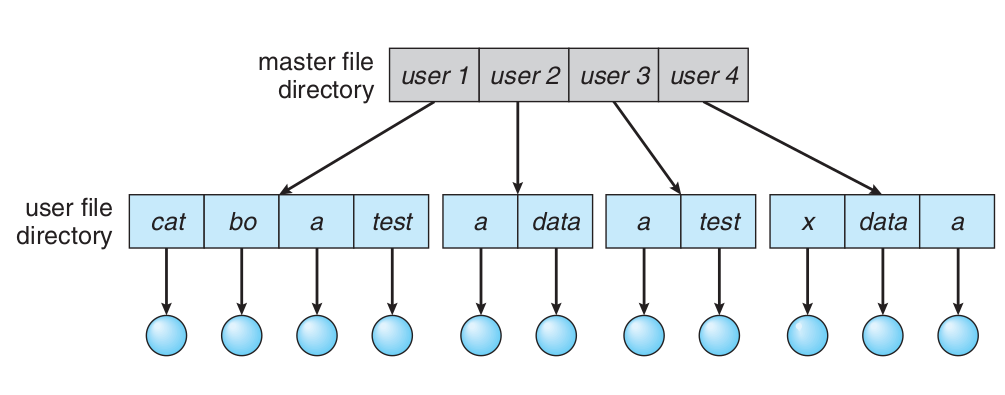

Two Level Structure of Folders

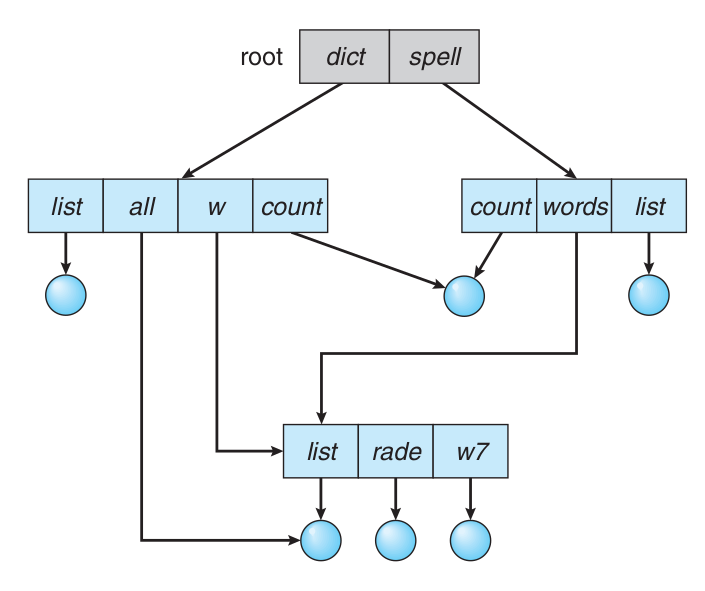

Acyclic Graph based Folder Structure

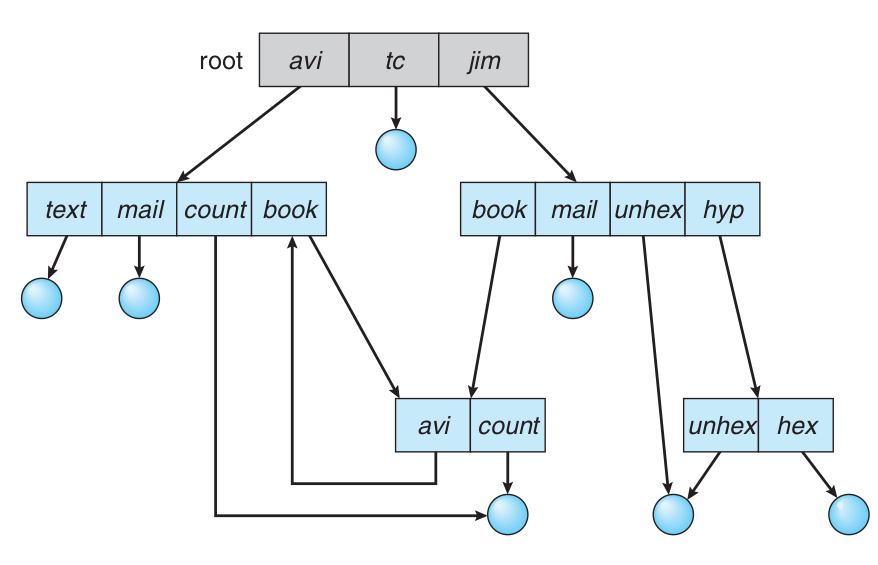

General Graph based Folder Structure

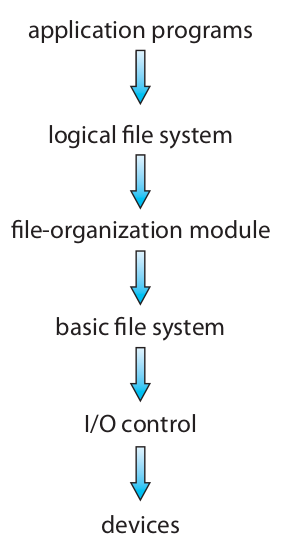

Multi Level File Structure

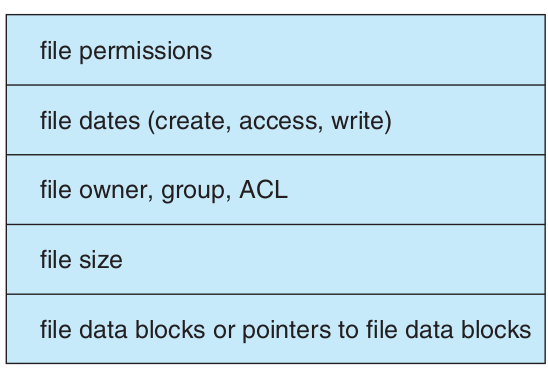

Simple Control Block of a File

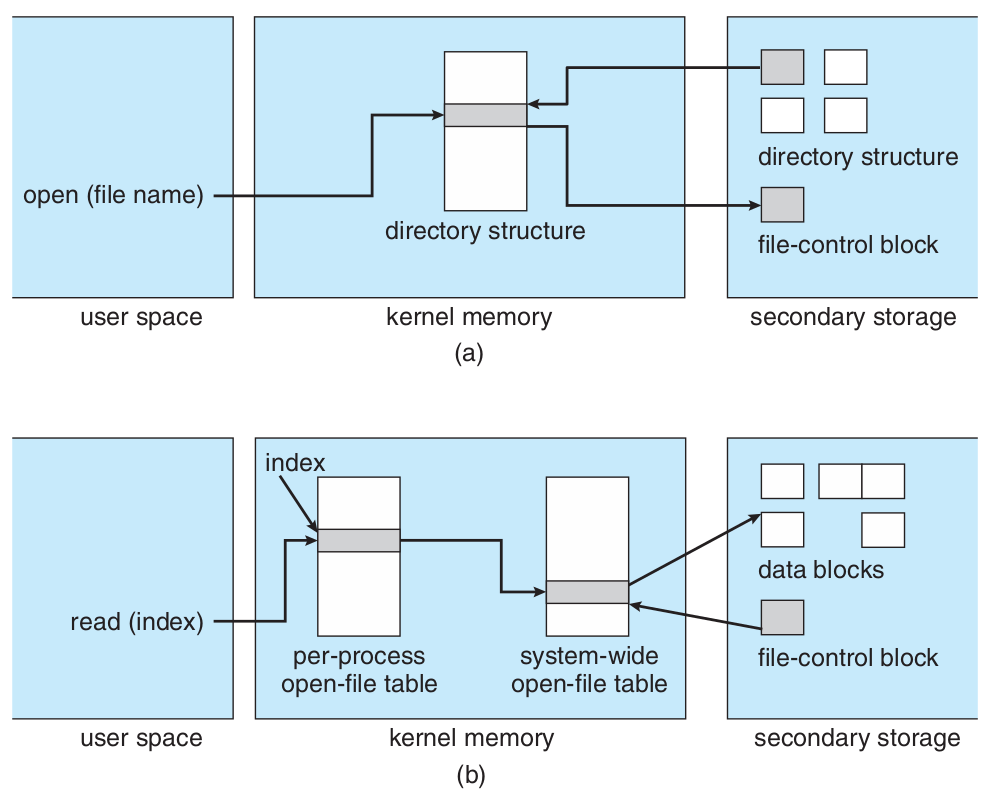

File struture in Main Memory
- open file
- close file

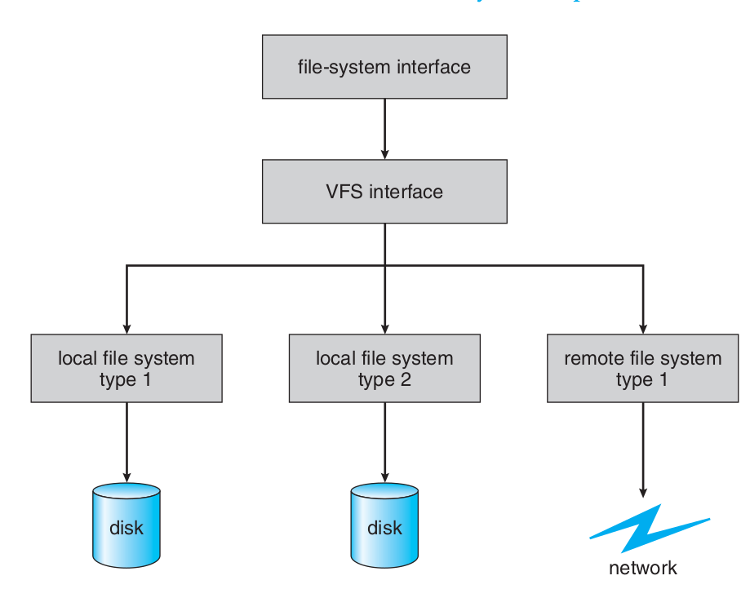

Schematic View of Virtual File System
Allocation Files Methods
.

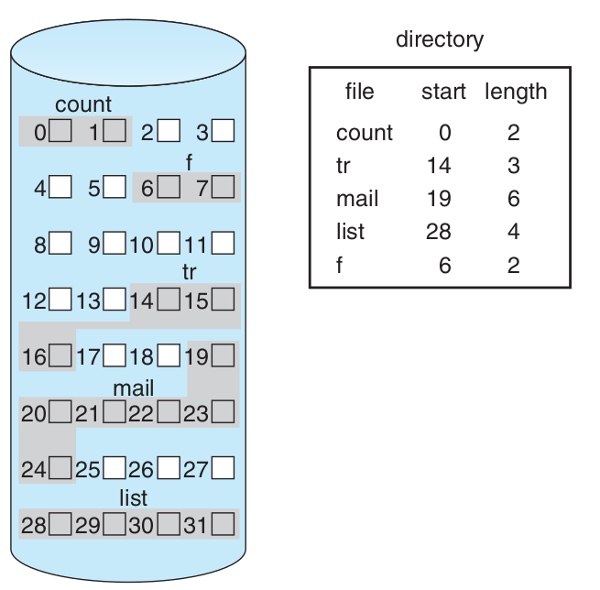

Contiguous Block Allocation
- External Fragmentation
- Adding Block to File
- Speed

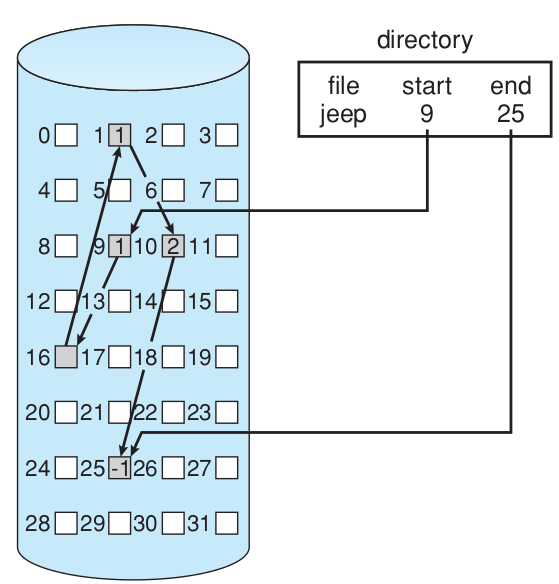

List Block Allocation

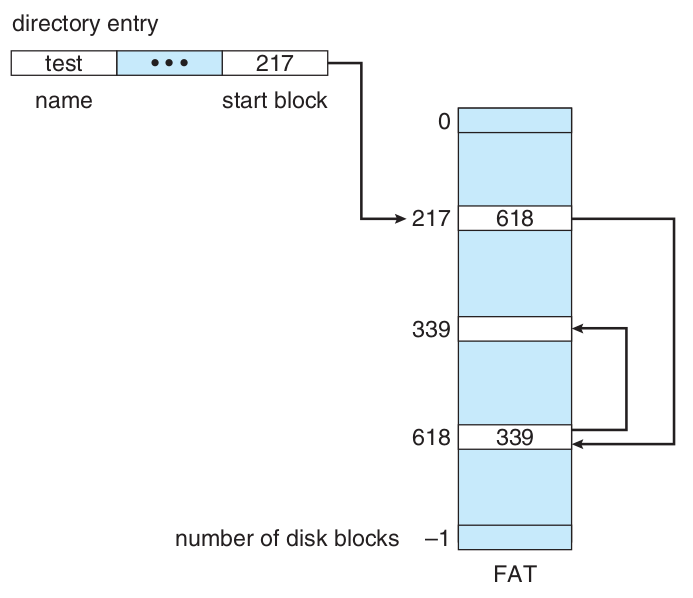

FAT Structure

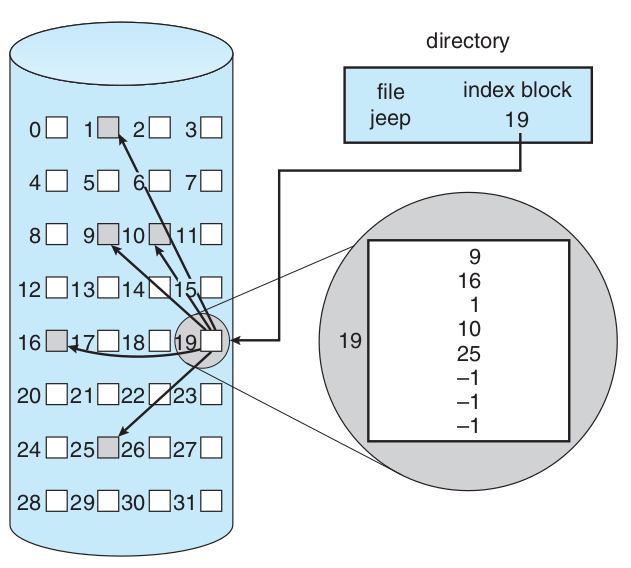

Index Based Block Allocation

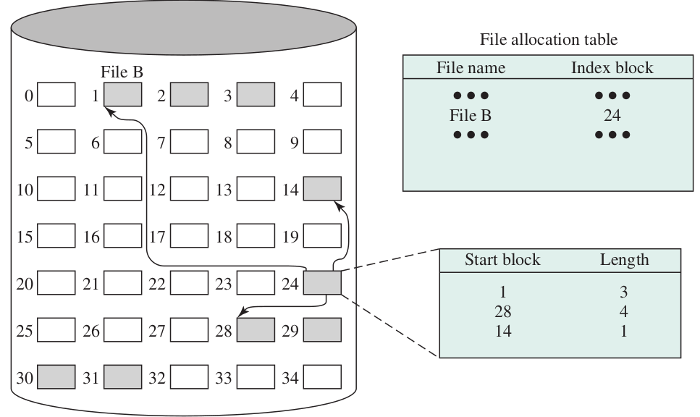

Contiguous Index Based Block Allocation
Contiguous List Allocation

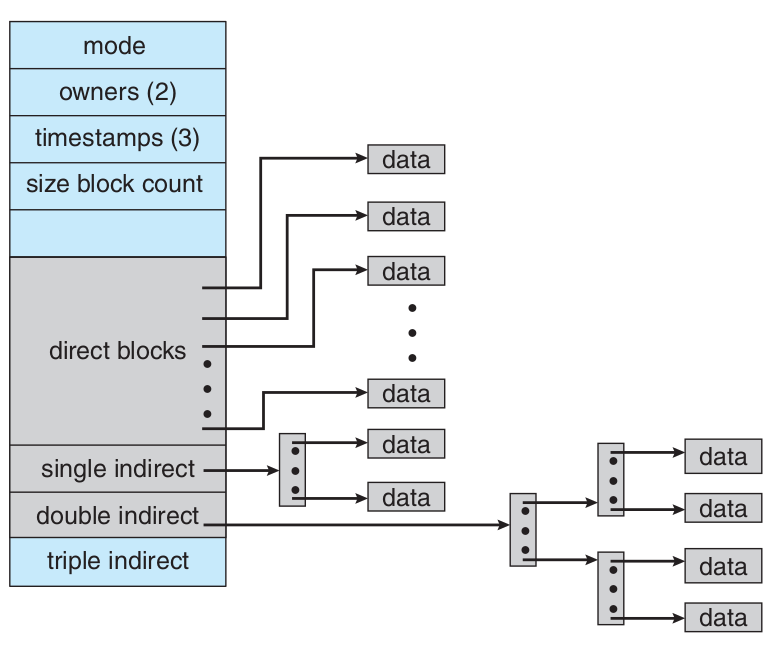

File Structure in Unix
RAM in DISK
File Allocation Methods Comparison
Method | Contiguous | Chained | Indexed | |
|---|---|---|---|---|
Preallocation? | Necessary | Possible | Possible | |
Fixed or Variable Size Portions? | Variable | Fixed blocks | Fixed blocks | Variable |
Portion Size | Large | Small | Small | Medium |
Allocation Frequency | Once | Low To High | High | Low |
Time to Allocate | Medium | Long | Short | Medium |
File Allocation Table Size | One Entry | One Entry | Large | Meduim |
Free Space Management
- How do we keep track free blocks on a disk?
- A free-list is maintained. When a new block is requested, we search this list to find one.
- The following are commonly used techniques:
- Bit Vector

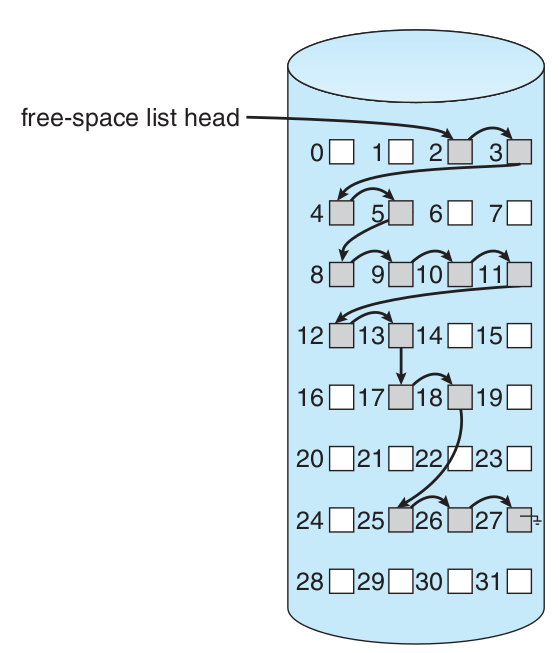

- Linked List
- Linked List + Grouping
- Linked List+Address+Count
Bit Vector
- Each block is represented by a bit in a table.
- If a block is free, its corresponding bit is 1.
- When a block is needed, the table is searched.
- If the disk capacity is small, the whole bit vector can be stored in memory.
- For a large disk, this bit vector will consume too much memory.
- We could group a few blocks into a clusterand allocate "clusters".
- Another possibility is the use of a " summary table ".
Input Output Structure

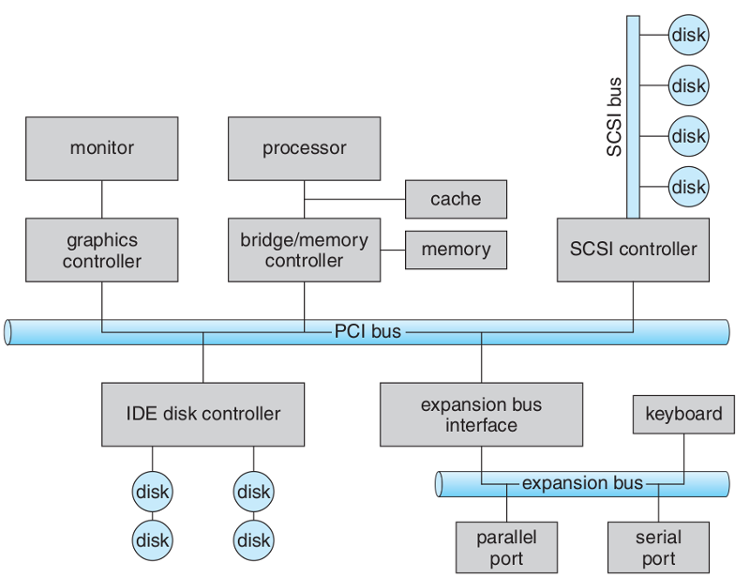

Computer Bus

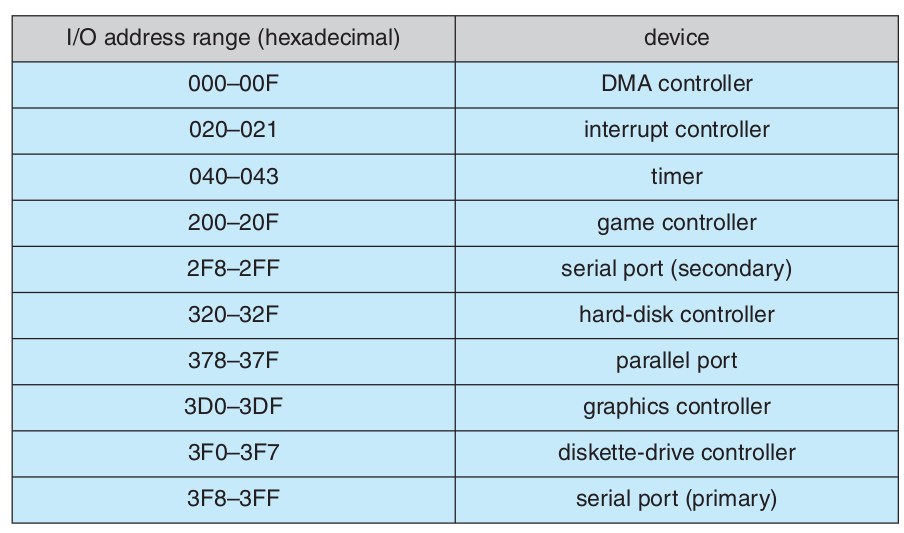

Hardware Ports

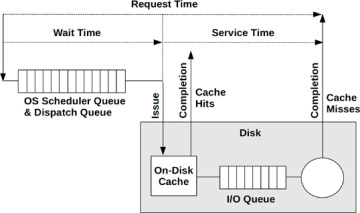

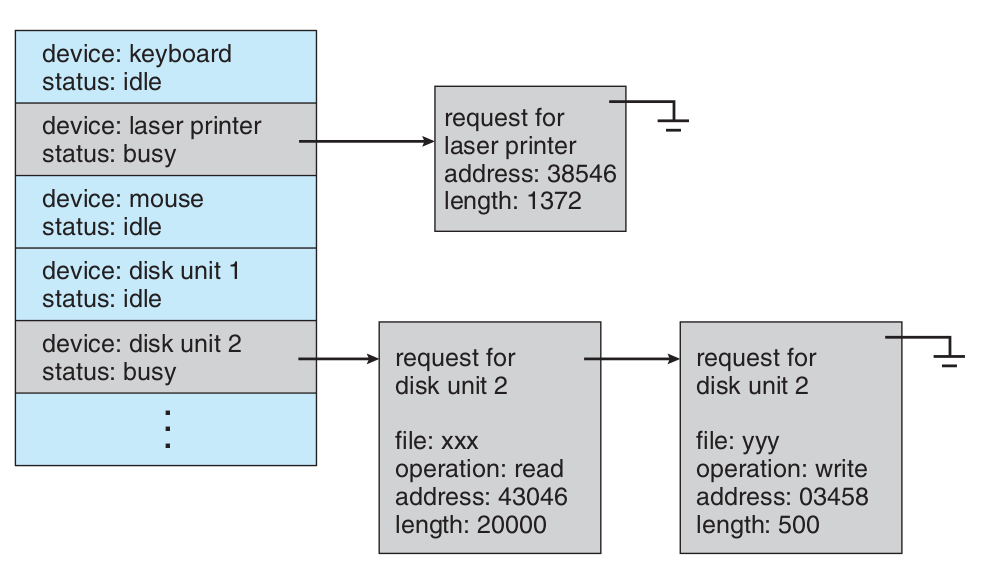

Status of Disk Requests

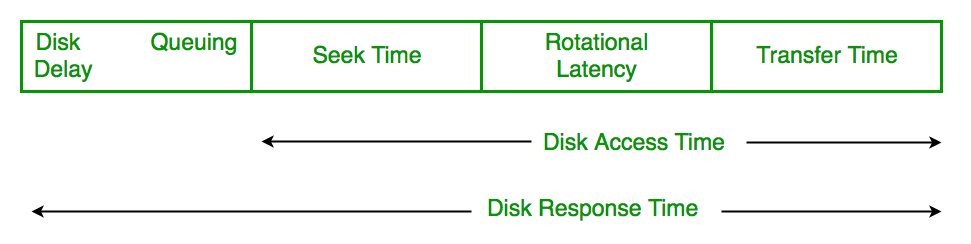

Important Disk Parameters
- Seek Time
- Rotational Latency
- Transfer Time
- Disk Access Time
- Disk Response Time
Imporatnce of Track or Cylinder
زمان پیگیرد یا زمان جستجو
Seek time
- درخواست‌های فرآیندها به بخش‌های مختلف دیسک اشاره می‌کند که مهم‌ترین پارامتر رفتن به سیلندر مورد نظر است.
- پس سیستم عامل در پایین‌ترین سطح کار خود با دیسک دنباله‌ای از درخواست‌های به سیلندرهای گوناگون را زمان‌بندی می‌کند.
98, 183, 37, 122, 14, 124, 65, 67

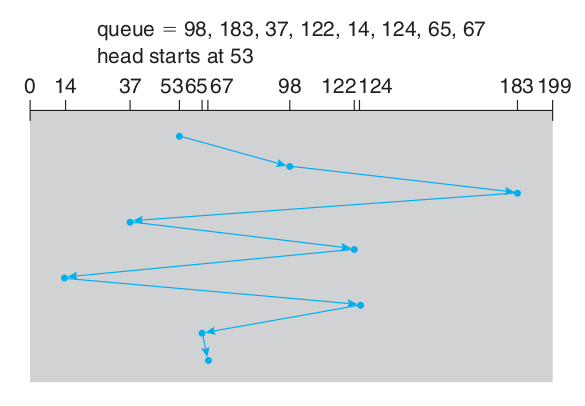

FCFS

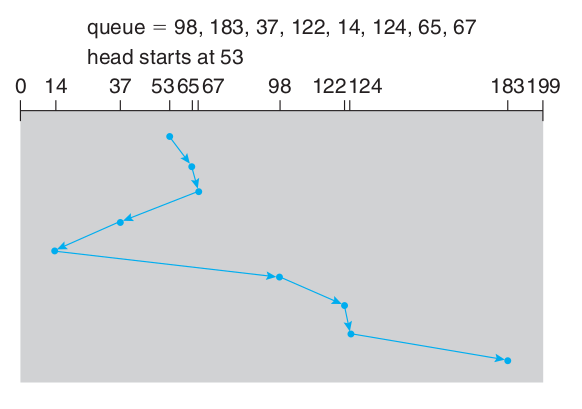

SSTF

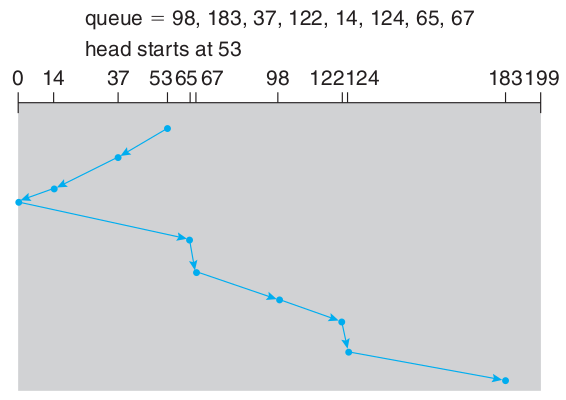

SCAN

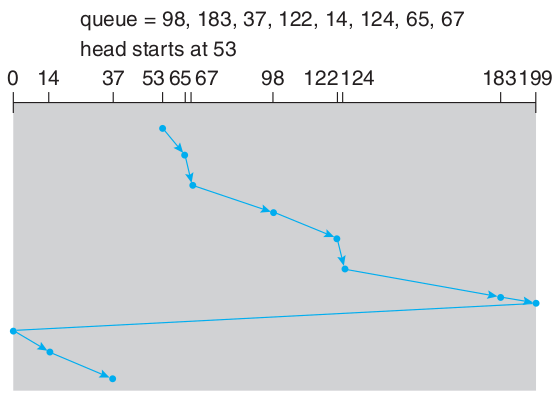

C-SCAN

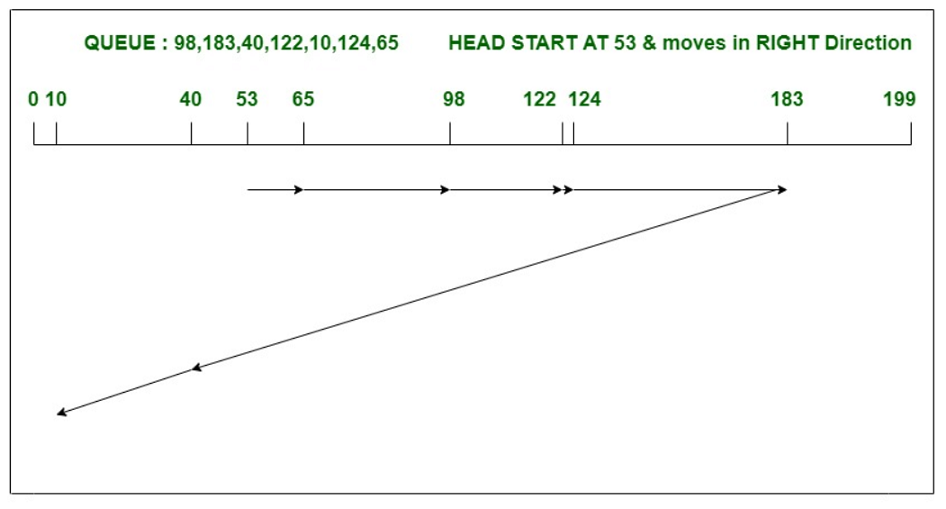

LOOK

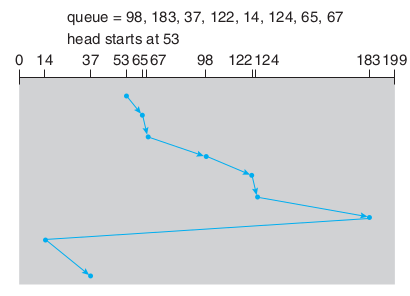

C-LOOK
F-SCAN
.
N-Step Scan
.

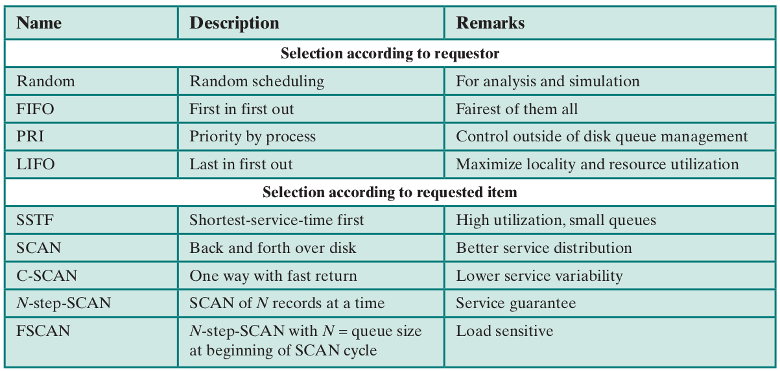

چند الگوریتم زمان‌بندی دیسک

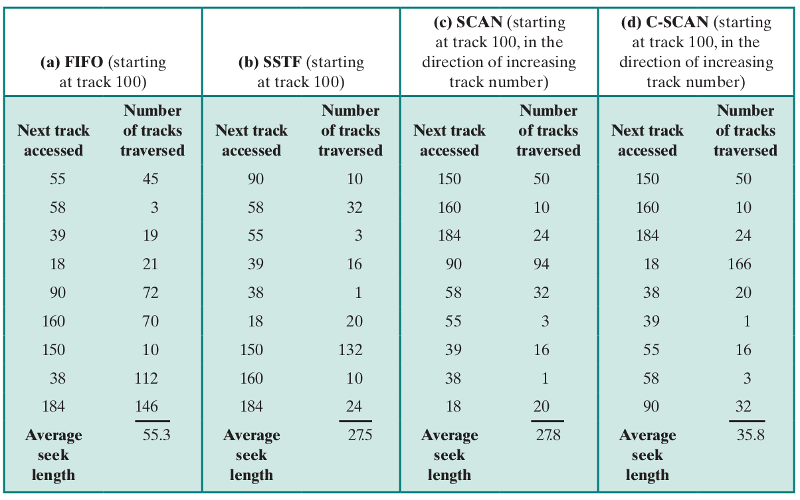

نمونه‌ای از مقایسهٔ چند الگوریتم

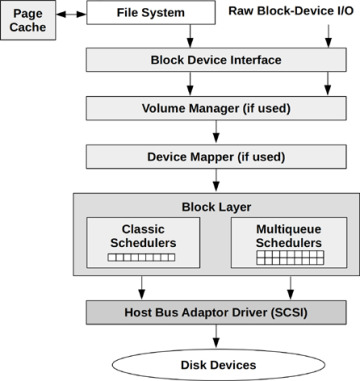

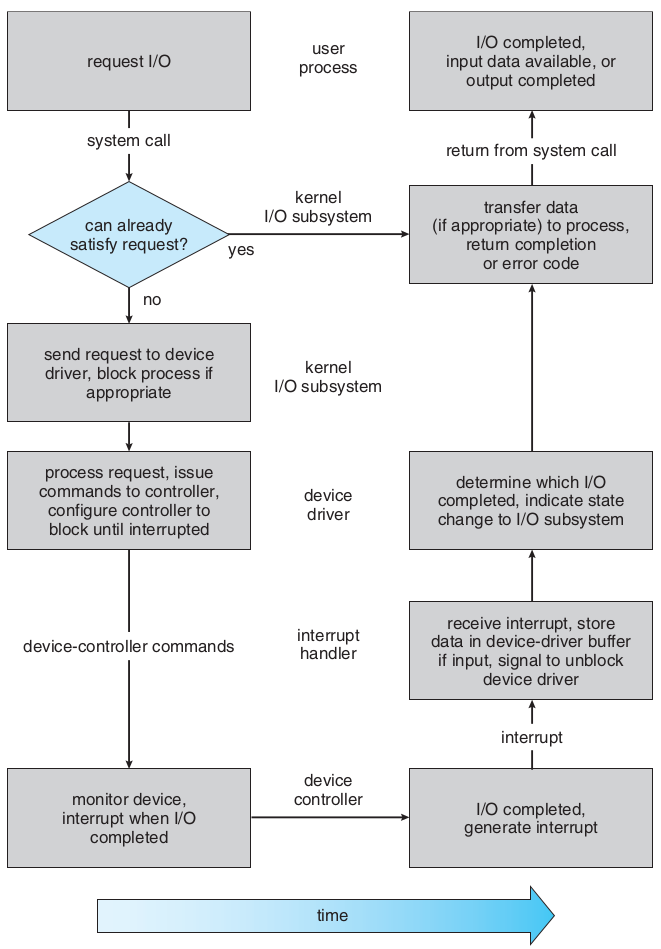

انجام ورودی/خروجی‌ها

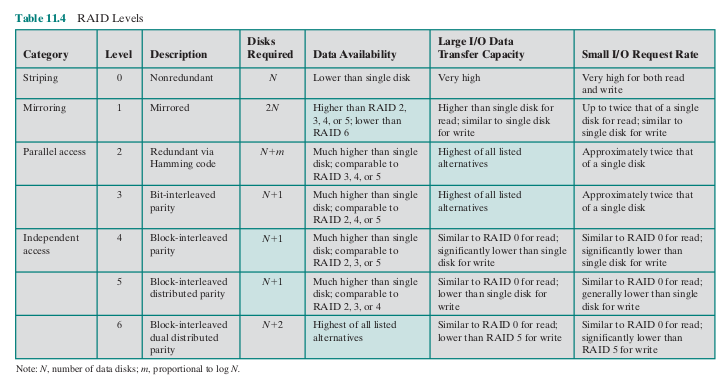

RAID
