Semantic Analyzer

Ahmad Yoosofan

Compiler course

University of Kashan

http://yoosofan.github.io/course/compiler.html

  1. E → E + a
  2. E → a

` `

a

+

$

E

0

s2

1

1

s3

acc

2

r2

r2

3

s4

4

r1

r1

Stack

Input

Action

\(I_0\)

a[8]+a[9]$

\(I_0\) a[8] \(I_2\)

+a[9]$

r2(E → a)

\(I_0\) E[8] \(I_1\)

+a[9]$

\(I_0\) E[8] \(I_1\) + \(I_3\)

a[9]$

\(I_0\) E[8] \(I_1\) + \(I_3\) a[9] \(I_4\)

$

r1(E→E+a)

\(I_0\) E[17] \(I_1\)

$

acc

` `

Production

Semantic

1

E → a

E.val = lexValue(a)

2

E → E + a

E.val = \(E_1\).val + lexValue(a)

` `

a

+

$

E

0

s2

1

1

s3

acc

2

r2

r2

3

s4

4

r1

r1

n

Stack

Input

Action

0

\(I_0\)

a[8]+a[9]+a[2]$

1

\(I_0\) a[8] \(I_2\)

+a[9]+a[2]$

r2(E → a)

2

\(I_0\) E[8] \(I_1\)

+a[9]+a[2]$

3

\(I_0\) E[8] \(I_1\) + \(I_3\)

a[9]+a[2]$

4

\(I_0\) E[8] \(I_1\) + \(I_3\) a[9] \(I_4\)

+a[2]$

r1(E→E+a)

5

\(I_0\) E[17] \(I_1\)

+a[2]$

6

\(I_0\) E[17] \(I_1\) + \(I_3\)

a[2]$

7

\(I_0\) E[17] \(I_1\) + \(I_3\) a[2] \(I_4\)

$

r1(E→E+a)

8

\(I_0\) E[19] \(I_1\)

$

9

acc

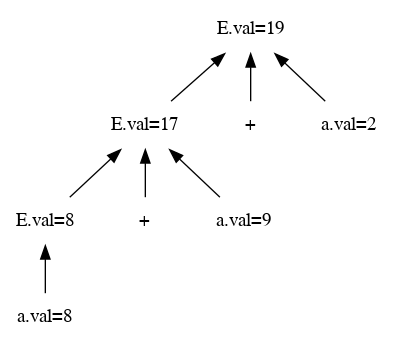

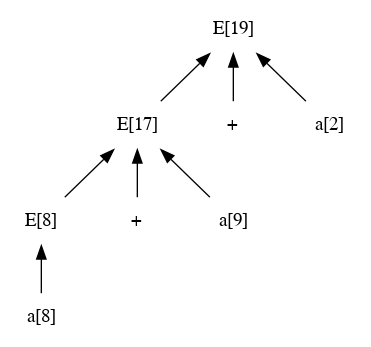

Anotated parse tree

a[8]+a[9]+a[2]

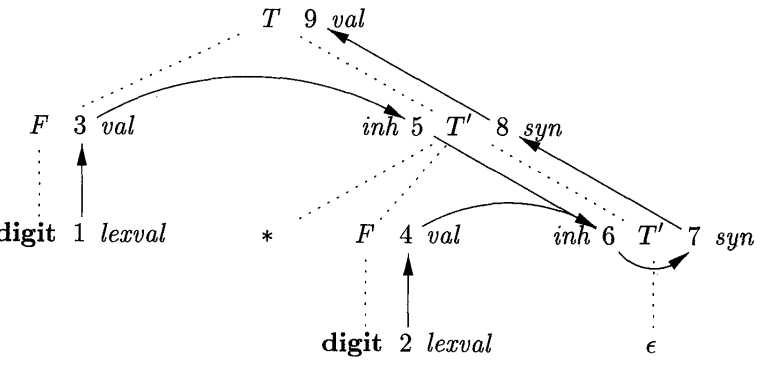

Dependency Graph

  1. E → T + E
  2. E → T
  3. T → F * T
  4. T → F
  5. F → ( E )
  6. F → a

Syntax-Directed Definition

Production

Semantic Rules

S → E n

print(E.v)

E → \(E_1+T\)

\(E.v=E_1.v + T.v\)

E → T

\(E.v=T.v\)

T → \(T_1*F.v\)

\(T.v=T_1.v * F.v\)

T → F

\(T.v=F.v\)

F → ( E )

\(F.v=E.v\)

F → a

\(F.v=a.lexval\)

 1 tokens = ('NUMBER','PLUS', 'MINUS',
 2   'MUL', 'DIV', 'LPAR', 'RPAR')
 3 t_PLUS     = r'\+'
 4 t_MINUS    = r'\-'
 5 t_MUL    = r'\*'
 6 t_DIV    = r'/'
 7 t_LPAR    = r'\('
 8 t_RPAR    = r'\)'
 9 def t_NUMBER(t):
10   r'[0-9]+'
11   t.value = int(t.value)
12   return t
13 t_ignore = " \t"
14 def t_error(t):
15   print("Illegal character '%s'" %
16     t.value[0])
17   t.lexer.skip(1)
18 import ply.lex as lex;lex.lex()
1 import ply.yacc as yacc; yacc.yacc()
2 while True:
3   try:
4     s = input('calc > ')
5     if s.strip()=='':break
6     yacc.parse(s)
7   except:
8     print('unexpected error')
 1 def p_S(p):
 2   'S : E' # S → E
 3   print('S → E ', p[1])
 4
 5 def p_E_plus_T(p):
 6   'E : E PLUS T' # E → E + T
 7   p[0] = p[1] + p[3]
 8
 9 def p_E_MINUS_T(p):
10   'E : E MINUS T' # E → E - T
11   p[0] = p[1] - p[3]
12
13 def p_E_T(p):
14   'E : T' # E → T
15   p[0]=p[1]
16
17 def p_T_MUL_F(p):
18   'T : T MUL F' # T → T * F
19   p[0] = p[1] * p[3]
 1 def p_T_DIV_F(p):
 2   'T : T DIV F' # T → T / F
 3   if p[3] != 0:
 4     p[0] = p[1] / p[3]
 5   else:
 6     print('Error: Divide by zero ');
 7     p[0]=p[1]
 8
 9 def p_T_F(p):
10   'T : F' # T → F
11   p[0]=p[1]
12
13 def p_F_a(p):
14   'F : NUMBER' # F → a
15   p[0]=p[1]
16
17 def p_F_lpar_E_rpar(p):
18   'F : LPAR E RPAR' # F → ( E )
19   p[0]=p[2]

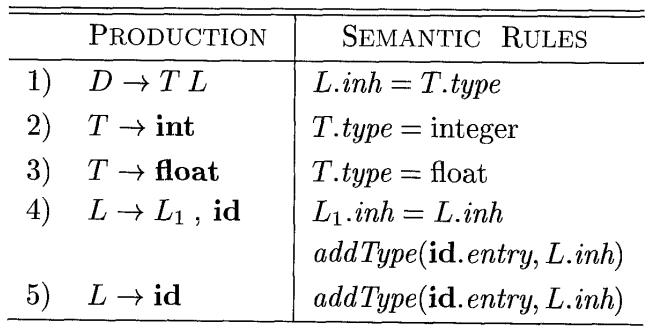

Inherited Attribute

Production

Semantic Rules

D → T L

L.in = T.type

T → int

T.type = integer

T → real

T.type = real

L → L1, id

L1.in = L.in, addtype(id.entry,L.in)

L → id

addtype(id.entry,L.in)

  1. D → T {L.in = T.type} L
  2. T → int {T.type = integer}
  3. T → real {T.type = real}
  4. L → {L1.in = L.in} L1, id {addtype(id.entry,L.in)}
  5. L → id {addtype(id.entry,L.in)}

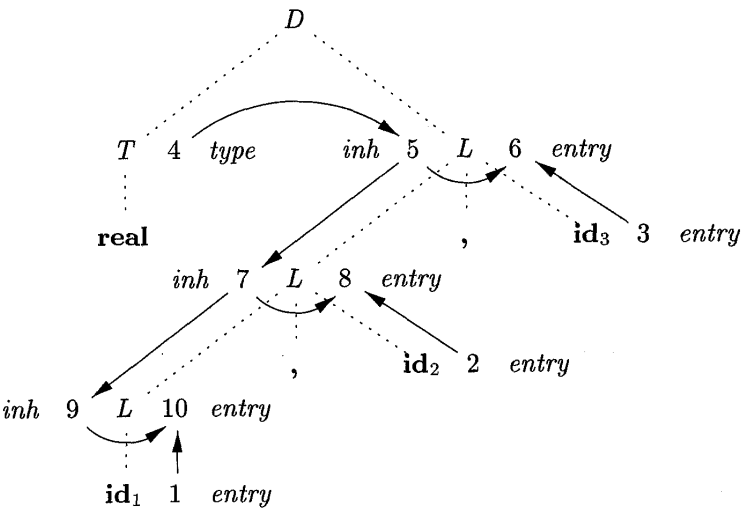

real a, b, c

 1 def E(lex1):
 2   t = lex1.getToken()
 3   if t.type == 'a':
 4     print('a B\t a: ',  t.value, end=',')
 5     print('\tB: ',  lex1.s[lex1.end:])
 6     return B(lex1)
 7   print('Synatx Error: number expected')
 8   print('Reminder: ',lex1.s[lex1.begin:])
 9   return False
10
11 def B(lex1):
12   t = lex1.getToken()
13   if t.type == '+':
14     print('+E,\tE:', lex1.s[lex1.end:] )
15     return E(lex1)
16   elif t.type == 'EOF': return True
17   print('Error a a:', s[0])
18   return False
19
20 def run(s):
21   lex1 = lexical_number_plus.lexical(s);
22   print(E(lex1))
 1 def E(lex1):
 2   t = lex1.getToken()
 3   if t.type == 'a':
 4     print('a B\t a: ',  t.value, end=',')
 5     print('\tB: ',  lex1.s[lex1.end:])
 6     return B(lex1)
 7   print('Synatx Error: number expected')
 8   print('Reminder: ',lex1.s[lex1.begin:])
 9   return False
10
11 def B(lex1):
12   t = lex1.getToken()
13   if t.type == '+':
14     print('+E,\tE:', lex1.s[lex1.end:] )
15     return E(lex1)
16   elif t.type == 'EOF': return True
17   print('Error a a:', s[0])
18   return False
19
20 def run(s):
21   lex1 = lexical_number_plus.lexical(s);
22   print(E(lex1))
 1 """  → , λ
 2 S → T L ;    # L.t = T.t
 3 T → INT      # T.t = INT
 4 T → DOUBLE   # T.t = DOUBLE
 5 L → a M      # type(a, L.t); M.t = L.t
 6 M →  λ       #
 7 M → , L      # L.t = M.t
 8 """
 9 tokens = ('ID','DOUBLE', 'INT',
10   'COMMA', 'SEMI' )
11 t_DOUBLE     = r'\.double'
12 t_INT        = r'\.int'
13 t_ID         = r'[a-zA-Z_][a-zA-Z_0-9]*'
14 t_COMMA      = r'\,'
15 t_SEMI    = r'\;'
16
17 t_ignore = " \t"
18
19 def t_error(t):
20   print("Illegal character '%s'" %
21     t.value[0])
22   t.lexer.skip(1)
23
24 import ply.lex as lex;lex.lex()
24 import ply.lex as lex;lex.lex()
25 start = 'S'
26 ds1 = []
27 def p_S(p):
28   'S : T L SEMI' # S → E
29   print(p[1])
30   print(ds1)
31 def p_Ttype(p):
32   """T : INT
33        | DOUBLE"""
34   p[0] = p[1]
35 def p_id_m(p):
36   'L : ID M'
37   ds1.append(p[1])
38 def p_m_empty(p):
39   'M : '
40   pass
41 def p_MLFcomma(p):
42   'M : COMMA L'
43   pass
44 def p_error(p):
45   print("Syntax error at '%s'" % p)
46 import ply.yacc as yacc; yacc.yacc()
47 s = '.int a,b,c;'
48 yacc.parse(s)
 1 tokens = ('ID','DOUBLE', 'INT',
 2   'COMMA', 'SEMI' )
 3 t_DOUBLE     = r'\.double'
 4 t_INT        = r'\.int'
 5 t_ID         = r'[a-zA-Z_][a-zA-Z_0-9]*'
 6 t_COMMA      = r'\,'
 7 t_SEMI    = r'\;'
 8 t_ignore = " \t"
 9 def t_error(t):
10   print("Illegal character '%s'" %
11     t.value[0])
12   t.lexer.skip(1)
13 import ply.lex as lex;lex.lex()
14 start = 'S'
15 ds1 = []
16 def p_S(p):
17   'S : T L SEMI' # S → E
18   print(p[1])
19   print(ds1)
20 def p_Ttype(p):
21   """T : INT
22        | DOUBLE"""
23   p[0] = p[1]
24 def p_id_m(p):
24 def p_id_m(p):
25   'L : ID M'
26   ds1.append(p[1])
27 def p_m_empty(p):
28   'M : '
29   pass
30 def p_MLFcomma(p):
31   'M : COMMA L'
32   pass
33 def p_error(p):
34   print("Syntax error at '%s'" % p)
35 import ply.yacc as yacc; yacc.yacc()
36 while True:
37   try:  # .double x,y;
38     s = input('.int a,b,c; > ')
39     if s.strip()=='':break
40     yacc.parse(s)
41   except:
42     print('unexpected error')
43   finally:
44     ds1 = []
 1 keywords =  ('double', 'int', )
 2 tokens = keywords + ('ID', 'COMMA', 'SEMI' )
 3 t_COMMA      = r'\,'
 4 t_SEMI    = r'\;'
 5 t_ignore = " \t"
 6 def t_ID(t):
 7   r'[a-zA-Z_][a-zA-Z_0-9]*'
 8   if t.value in keywords:
 9     t.type = t.value
10   return t
11 def t_error(t):
12   print("Illegal character '%s'" %
13     t.value[0])
14   t.lexer.skip(1)
15 import ply.lex as lex;lex.lex()
16 start = 'S'
17 ds1 = []
18 def p_S(p):
19   'S : T L SEMI' # S → E
20   print(p[1])
21   print(ds1)
22 def p_Ttype(p):
23   """T : int
24        | double"""
24        | double"""
25   p[0] = p[1]
26 def p_id_m(p):
27   'L : ID M'
28   ds1.append(p[1])
29 def p_m_empty(p):
30   'M : '
31   pass
32 def p_MLFcomma(p):
33   'M : COMMA L'
34   pass
35 def p_error(p):
36   print("Syntax error at '%s'" % p)
37 import ply.yacc as yacc; yacc.yacc()
38 while True:
39   try:  # .double x,y;
40     s = input('int a,b,c; > ')
41     if s.strip()=='':break
42     yacc.parse(s)
43     ds1=[]
44   except:
45     print('unexpected error')
 1 keywords =  ('double', 'int', )
 2 tokens = keywords + ('ID', )
 3 literals = [',', ';']
 4 t_ignore = " \t"
 5 def t_ID(t):
 6   r'[a-zA-Z_][a-zA-Z_0-9]*'
 7   if t.value in keywords:
 8     t.type = t.value
 9   return t
10 def t_error(t):
11   print("Illegal '%s'" %t.value[0])
12   t.lexer.skip(1)
13 import ply.lex as lex;lex.lex()
14 start = 'S'
15 ds1 = []
16 def p_S(p):
17   'S : T L ";"' # S → E
18   print(p[1])
19   print(ds1)
20 def p_Ttype(p):
21   """T : int
22        | double"""
23   p[0] = p[1]
24 def p_id_m(p):
24 def p_id_m(p):
25   'L : ID M'
26   ds1.append(p[1])
27 def p_m_empty(p):
28   'M :'
29   pass
30 def p_MLFcomma(p):
31   'M : "," L'
32   pass
33 def p_error(p):
34   print("Syntax error at '%s'" % p)
35 import ply.yacc as yacc; yacc.yacc()
36 while True:
37   try:  # .double x,y;
38     s = input('int a,b,c; > ')
39     if s.strip()=='': break
40     yacc.parse(s)
41   except: print('unexpected error')
42   finally: ds1 = []

Production

Semantic Rules

L → E \n

print(val[top-1])

E → E1 + T

val[ntop] = val[top-2] + val[top]

E → T

T → T1 * F

val[ntop] = val[top-2] * val[top]

T → F

F → ( E )

val[ntop] = val[top-1]

F → digit

Production

Semantic Rules

1

A → B

print(B.n0), print(B.n1)

2

B → 0 \(B_1\)

B.n0=B1.n0+1, B.n1=B1.n1

3

B → 1 \(B_1\)

B.n0=B1.n0, B.n1=B1.n1+1

4

B → λ

B.n0=0, B.n1=0

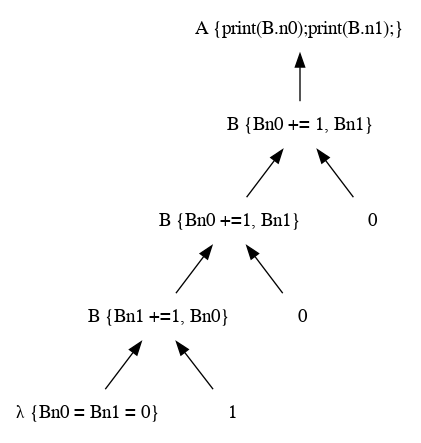

input: 0 0 1 $

Production

Semantic Rules

1

A→B

print(B.n0), print(B.n1)

2

\(B→ 0 B_1\)

\(B.n_0=B_1.n_0+1, B.n_1=B_1.n_1\)

3

\(B→ 1 B_1\)

\(B.n_0=B_1.n_0, B.n_1=B_1.n_1+1\)

4

B→λ

\(B.n_0=0, B.n_1=0\)

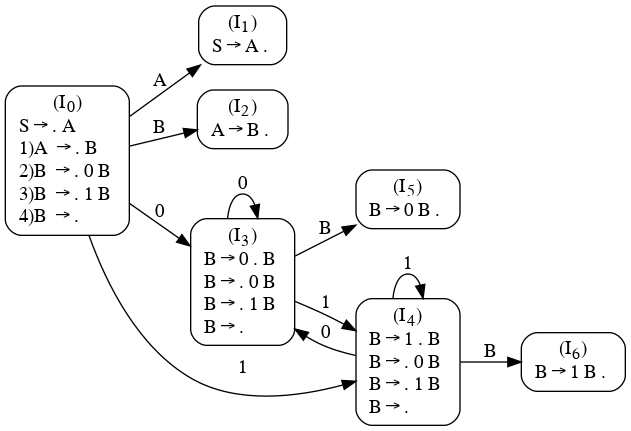

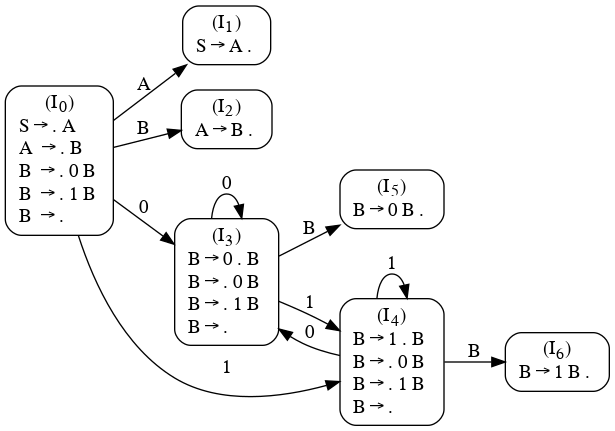

t

0

1

$

A

B

I0

s3

s4

1

2

I1

acc

I2

r1

I3

s3

s4

r4

5

I4

s3

s4

r4

6

I5

r2

I6

r3

1

A→B

print(B.n0), print(B.n1)

2

\(B→ 0\ B_1\)

\(B.n_0=B_1.n_0+1, B.n_1=B_1.n_1\)

3

\(B→ 1\ B_1\)

\(B.n_0=B_1.n_0, B.n_1=B_1.n_1+1\)

4

B→λ

\(B.n_0=0, B.n_1=0\)

t

0

1

$

A

B

\(I_0\)

s3

s4

1

2

\(I_1\)

acc

\(I_2\)

r1

\(I_3\)

s3

s4

r4

5

\(I_4\)

s3

s4

r4

6

\(I_5\)

r2

\(I_6\)

r3

Stack

input

action

\(I_0\)

001$

Shift 3

\(I_0\ 0\ I_3\)

01$

Shift 3

\(I_0\ 0\ I_3\ 0\ I_3\)

1$

Shift 4

\(I_0\ 0\ I_3\ 0\ I_3\ 1\ I_4\)

$

r4 B[0،0]

\(I_0\ 0\ I_3\ 0\ I_3\ 1\ I_4\ B[0،0]\ I_6\)

$

r3 B[0،1]

\(I_0\ 0\ I_3\ 0\ I_3\ B[0،1]\ I_5\)

$

r2 B[1،1]

\(I_0\ 0\ I_3\ B[1،1]\ I_5\)

$

r2 B[2،1]

\(I_0\ B[2،1]\ I_2\)

$

r1 print(B[2،1])

\(I_0\ I_1\)

$

accept

Similar Grammar

1

A→B

print(B.n0), print(B.n1)

2

\(B→ B_1 \ 0\)

\(B.n_0=B_1.n_0+1, B.n_1=B_1.n_1\)

3

\(B→ B_1 \ 1\)

\(B.n_0=B_1.n_0, B.n_1=B_1.n_1+1\)

4

B→λ

\(B.n_0=0, B.n_1=0\)

Production

Semantic Rules

E → E1 + T

E.loc=newtemp() ,
E.code = E1.code || T.code || 'add E.loc, E1.loc, T.loc'

E → T

E.loc = T.loc, E.code=T.code

T → T1 * F

T.loc=newtemp() ,
T.code = T1.code || F.code || 'mult T.loc, T1.loc, F.loc'

T → F

T.loc = F.loc, T.code=F.code

F → ( E )

F.loc = E.loc, F.code=E.code

F → id

F.loc = id.name, F.code= ''

 1 lastTempValue = 0
 2 def newTemp():
 3   global lastTempValue
 4   lastTempValue +=1
 5   s1 = 't' + str(lastTempValue)
 6   return s1;
 7
 8 def p_S(p):
 9   'S : E' # S → E
10   print(p[1]["code"])
11
12 def p_E_plus_T(p):
13   'E : E PLUS T' # E → E + T
14   p[0] = {}
15   p[0]["loc"] = newTemp()
16   p[0]["code"] = p[1]["code"]+\
17     p[3]["code"]+\
18     'add '+ str(p[0]["loc"])+\
19     ', ' + str(p[1]["loc"])+\
20     ', ' + str(p[3]["loc"])+'\n'
21
22 def p_E_T(p):
23   'E : T' # E → T
24   p[0]=p[1]
25
26 def p_T_MUL_F(p):
27   'T : T MUL F' # T → T * F
28   p[0] = {}
29   p[0]["loc"] = newTemp()
30   p[0]["code"] = p[1]["code"]+\
31     p[3]["code"]+\
 1     'mult '+str(p[0]["loc"])+\
 2     ', '+str(p[1]["loc"])+\
 3     ', '+str(p[3]["loc"])+'\n'
 4
 5 def p_T_F(p):
 6   'T : F' # T → F
 7   p[0]=p[1]
 8
 9 def p_F_a(p):
10   'F : NUMBER' # F → a
11   p[0] = {}
12   p[0]["loc"] = p[1]
13   p[0]["code"] = ''
14
15 def p_F_lpar_E_rpar(p):
16   'F : LPAR E RPAR' # F → ( E )
17   p[0] = p[2]
18
19 def p_error(p):
20   print("Syntax error at '%s'" % p)
21
22 import ply.yacc as yacc;
23 yacc.yacc()
24 while True:
25   try:
26     s = input('calc > ').strip()
27     if s == '':break
28     yacc.parse(s)
29   except:
30     print('unexpected error')

Translation Scheme

  • E → T R
  • R → + T { print("+") } R1
  • R → λ
  • T → id { print(id.name) }
  1. a+b+c
  2. a b + c +

Production

Semantic Rules

1

T → F T '

T '.inh = F.val , T.val = T '.syn

2

T ' → * F \(T '_1\)

\(T '_1\).inh = T '.inh * F.val, T '.syn = \(T '_1\).syn

3

T ' → λ

T '.syn = T '.inh

4

F → id

F.val = id.name

Specification

S-Attributed Definitions

circular dependency

Production

Semantic Rules

A → B

A.s = B.i , B.i = A.s + 1

L-Attributed Definitions

Each attribute must be either

  1. Synthesized, or
  2. Inherited, but for every rule like \(A → X_1X_2 ... X_n\) which contains an inherited attribute \(X_i.a\), the rule may use only:
    • Inherited attributes associated with the head A.
    • attributes associated with the occurrences of symbols \(X_1, X_2 , . . . , X_{i-1}\) is located to the left of \(X_i\).

Examples

Production

Semantic Rules

D → T L

L.in = T.type

T → int

T.type = integer

T → real

T.type = real

L → \(L_1\), id

\(L_1\).in = L.in, addtype(id.entry,L.in)

L → id

addtype(id.entry,L.in)

Production

Semantic Rules

E → F R

R.inh = F.val , E.val = R.val

R → + F \(R_1\)

\(R_1\).inh = R.inh + F.val , R.val = \(R_1\).val

R → λ

R.val = R.inh

F → ( E )

F.val = E.val

F → digit

F.val = digit.lexval

Not L-Attributed

Production

Semantic Rules

A → B D

A.s = B.b , B.i = f(D.d, A.s)

Production

Semantic Rules

A → L M

L.in = f1(A.i), M.in = f2(L.s), A.s = f3(M.s)

A → Q R

R.in = f4(A.in), Q.in = f5(R.s), A.s = f3(Q.s)

Translation Scheme vs SDD

SDD

Production

Semantic Rules

E → F R

R.inh = F.val , E.val = R.val

R → + F \(R_1\)

\(R_1\).inh = R.inh + F.val , R.val = \(R_1\).val

R → λ

R.val = R.inh

F → ( E )

F.val = E.val

F → digit

F.val = digit.lexval

Translation Scheme

Production and Semantic Rules

E → F {R.inh = F.val} R {E.val = R.val}

R → + F {\(R_1\).inh = R.inh + F.val} \(R_1\) {R.val = \(R_1\).val}

R → λ {R.val = R.inh}

F → ( E ) {F.val = E.val}

F → digit {F.val = digit.lexval}

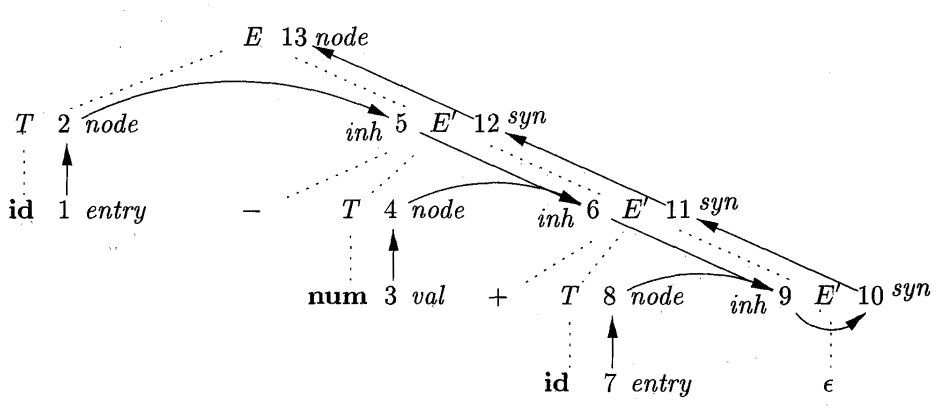

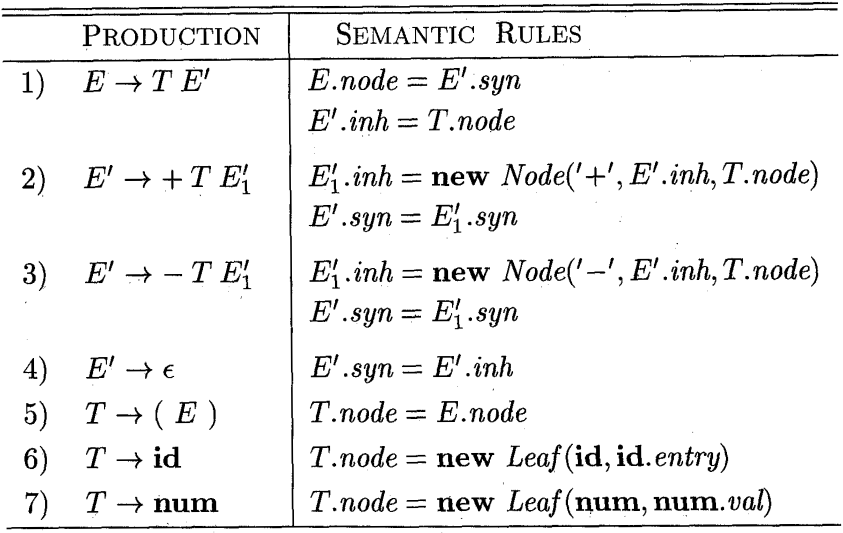

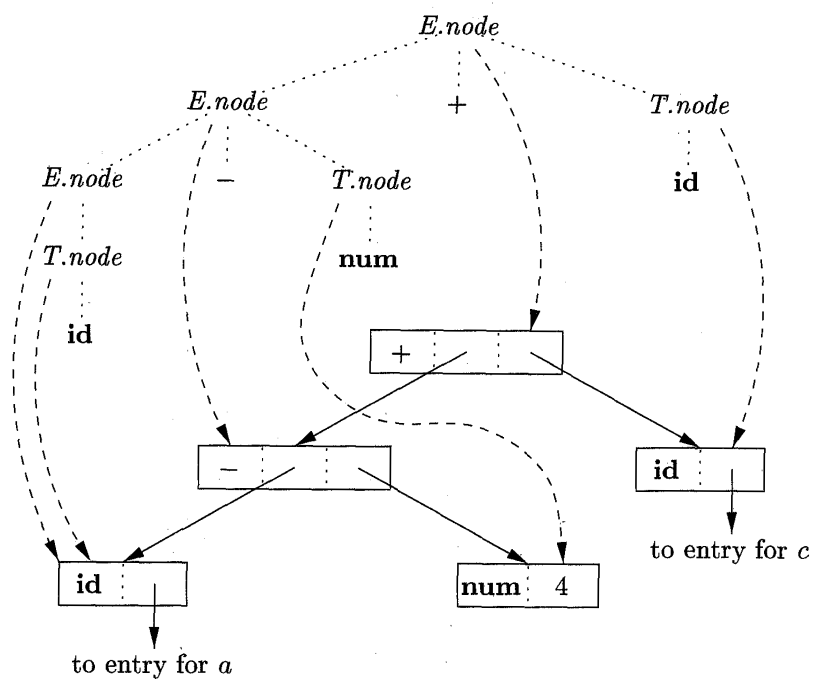

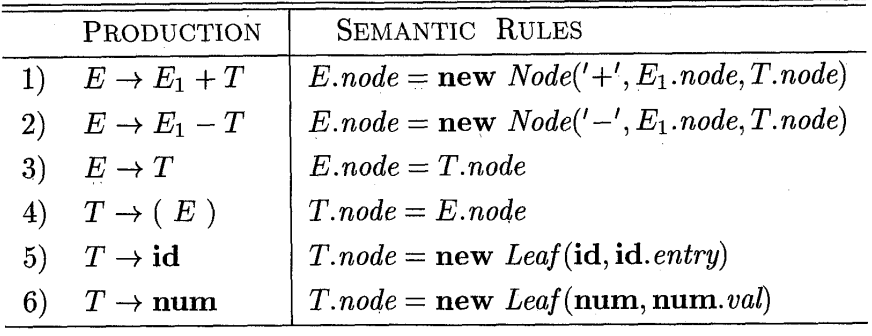

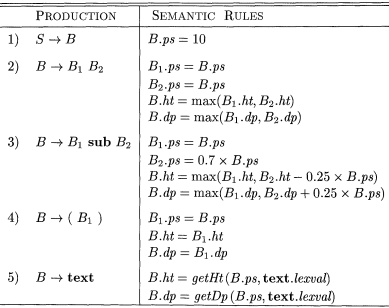

SDD for typesetting boxes

B → S B1

L1 = newlabel()

B.next = B1.next

B.code = S.code || 'label' || L1 || B1.code

S.next = L1

B → λ

L1 = newlabel(); B.next = L1 ; B.code = 'Label ' || L1

S → w ( C ) S1

L1 = newlabel(); L2 = newlabel();

C.false = S.next

C.true = L2

S1.next = L1

S.code = 'label ' || L1 || C.code || 'label ' || L2 || S1.code

|| 'goto ' || L1

S → i = C ;

S.code = C.code || 'AsG' || i.name || '

' || C.val

C → o ;

C.val = 1

End

1
