Lexical Analyzer

Tokenizer

Ahmad Yoosofan

Compiler course

University of Kashan

int a, b;
  b = 10;
  c = 24;

Ignoring Some Characters

Token

1 struct token {
2   tokenType t;
3   string s;
4   double x;
5   int a;
6 };
1 struct token {
2   tokenType t;
3   char s[256];
4   double x;
5   int a;
6 };
1 struct token {
2   tokenType t;
3   char* s;
4   double x;
5   int a;
6 };
1 struct token {
2   tokenType t;
3   union {
4     char* s;
5     double x;
6     int a;
7   };
8 };
1 struct token {
2   tokenType t;
3   union {
4     char* s;
5     double x;
6     int a;
7   };
8 };

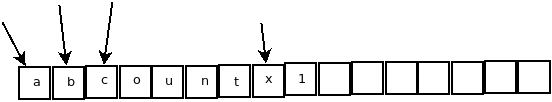

int a, b, count, x1;

Token Types

enum tokenType{
  INTEGER,             /* 25, 543, 1 */
  DOUBLE,              /* 2.45, 565.7 */
  IDENTIFIER,          /* x, count, power*/
  IF,                  /* if */
  WHILE,               /* while */
  OPEN_PARANTHESIS,    /* ( */
  CLOSE_PARANTHESIS,   /* ) */
  ASSIGN,              /* = */
  OPEN_CURLY_BRACKET,  /* { */
  CLOSE_CURLY_BRACKET, /* } */
  OPEN_SQUARE_BRACKET, /* [ */
  CLOSE_SQUARE_BRACKET,/* ] */
  EQUAL,               /* == */
  LESS_THAN,           /* <  */
  GREATER_THAN,        /* > */
  LESS_THAN_EQUAL,     /* <= */
  GREATER_THAN_EQUAL,  /* >= */
  COMMA,               /* , */
  SEMICOLON,           /* ; */
  END_OF_LINE,
  END_OF_FILE
}
enum tokenType{
  INTN,  /* 25, 543, */
  DBLN   /* 5.444, 3344.4 */,
  ID,    /* x, count, power*/
  IF,    /* if */
  WHILE, /* while */
  OP,    /* ( */
  CP,    /* ) */
  ASG,   /* = */
  OCB,   /* { */
  CCB,   /* } */
  OSB,   /* [ */
  CSB,   /* ] */
  EQ,    /* == */
  LT,    /* <  */
  GT,    /* > */
  LTE,   /* <= */
  GTE,   /* >= */
  COM,   /* , */
  SEM,   /* ; */
  EOL,   /* end of line */
  EOI    /* $ end of input */
}
enum tokenType{
  INTN,  /* 25, 543, */
  DBLN   /* 5.444, 3344.4 */,
  ID,    /* x, count, power*/
  IF,    /* if */
  WHILE, /* while */
  OP,    /* ( */
  CP,    /* ) */
  ASG,   /* = */
  OCB,   /* { */
  CCB,   /* } */
  OSB,   /* [ */
  CSB,   /* ] */
  EQ,    /* == */
  LT,    /* <  */
  GT,    /* > */
  LTE,   /* <= */
  GTE,   /* >= */
  COM,   /* , */
  SEM,   /* ; */
  EOL,   /* end of line */
  EOI    /* $ end of input */
}
if(a==4){
   a++;
}
  • {if}
  • {OP}
  • {ID, "a"}
  • {EQ}
  • {INTN 4}
  • {CP}
  • {OCB}
  • {EOL}
  • {ID "a"}
  • {PLUS}
  • {PLUS}
  • {SEMI}
  • {EOL}
  • {CCB}
  • {EOI}

More Samples

printf("Error");
a = '"';
a = 2; // slfjsl slkjfsl slkjf sdf
b = a+21;/* dsf
sdfs
sdfs */
c = 323;

Some Issues

1   array<int,Node<int> >m1;
2   int aa=12; Node<int> n1(&aa);
3   m1[n1]=44;
4   cout<<m1[n1]<<endl;
5   aa=4;m1[Node<int>(&aa)]=4;
6   cout<<m1[Node<int>(new int(4))]<<endl;
7   try{
8     array<int,string,1> cm1; array<string,complexCls> am1;
9     cm1["ali"]=4;
10     cm1["Reza"]=7;
11     cout<<cm1["ali"]<<endl;
12     cout<<cm1["Reza"]<<endl;
13     am1[complexCls(3,4)]="Hamid";
14
15     cout<<am1[complexCls(3,4)]<<endl;
16     cout<<cm1;  cout<<am1;
17   }catch(...){cout<<"Error "<<endl;}
18 }

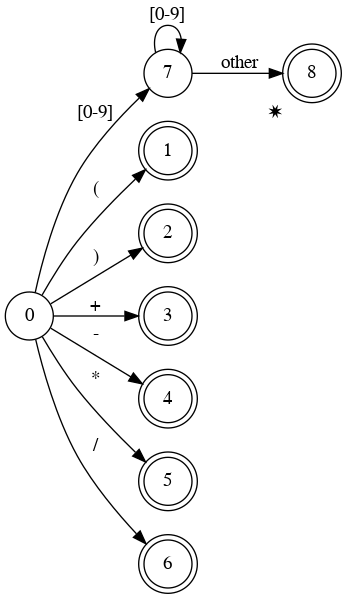

Writing Code

Applications of Lexical Analyzer

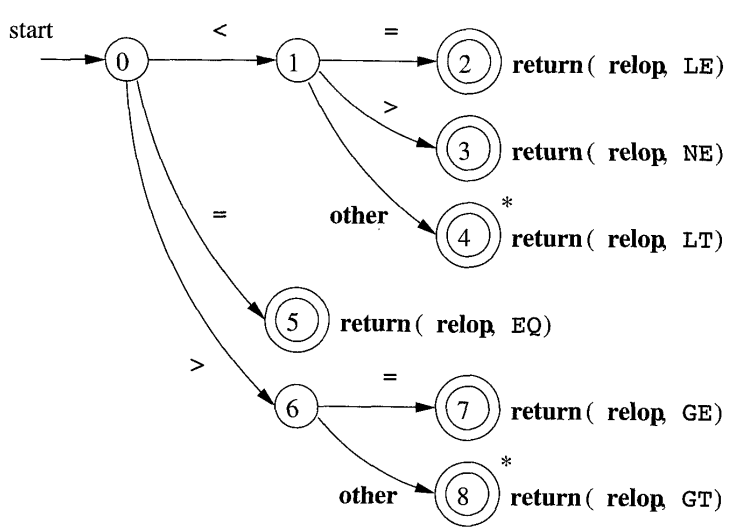

Relational Operators

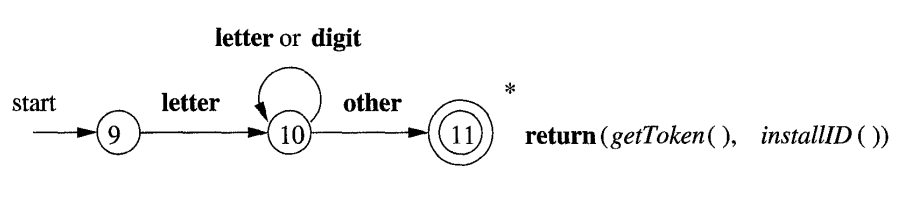

ID

12 char buffer[200];
13 int tindex =0;
14
15 void read(void){
16   cout << "Enter: ";
17   cin.get(buffer, 200);
18 }
19
20 enum TokenType{
21   INT, PLUS, MINUS, MUL,
22   DIV, OP, CP, EOI
23 };
24
25 struct Token{
26   TokenType type;
27   int n;
28 };
30 void printToken(Token t){
31   cout<< "tindex: "<< tindex
32     << "\t type: "
33     <<typeString[int(t.type)]
34     <<"\t int "<< t.n << endl;
35 }
36
37 Token getToken(void);
38
39 int main(){
40   Token t; read();
41   do{
42     t=getToken();
43     printToken(t);
44   }while(t.type != EOI);
45 }
49   Token  t; t.n = 0;
50   if(buffer[tindex] == '(')        t.type = OP;
51   else if(buffer[tindex] == ')')   t.type = CP;
52   else if(buffer[tindex] == '+')   t.type = PLUS;
53   else if(buffer[tindex] == '-')   t.type = MINUS;
54   else if(buffer[tindex] == '*')   t.type = MUL;
55   else if(buffer[tindex] == '/')   t.type = DIV;
56   else if(buffer[tindex] == '\0')  t.type = EOI;
57
58   else if(buffer[tindex]>='0' && buffer[tindex]<='9'){
59     t.type=INT; t.n = 0;
60     for(; buffer[tindex] >= '0' && buffer[tindex] <= '9'; tindex++)
61         t.n=t.n*10+buffer[tindex]-48;
62     tindex --;
63   }
64   else  error("unknown character");
65   tindex++;
66   return t;
67 }
 9 enum TokenType{
10   INT, PLUS, MINUS, MUL,
11   DIV, OP, CP, EOI
12 };
13 struct Token{
14   TokenType type;
15   int n = 0;
16 };
17
18 void error(const string msg)
19 {cout<<msg<<endl; throw 0;}
20
21 class lexical{
22   Token  t;
23   char buffer[200];
24   int tindex = 0;
25
26   public:
27
28   void read(void){
29     cout << "Enter: ";
30     cin.get(buffer,200);
31   }
33   void printToken(Token t){
34     cout<< "tindex: "<< tindex
35       << "\t type: "
36       <<typeString[int(t.type)]
37       <<"\t int "<< t.n << endl;
38   }
39
40   Token getToken(void);
41 };
42
43 int main(){
44   lexical lex1;
45   Token t;
46   lex1.read();
47   do{
48     t=lex1.getToken();
49     lex1.printToken(t);
50   }while(t.type != EOI);
51 }
52 Token lexical::getToken(void){
53   t.n = -1;
54   if(buffer[tindex] == '(')        t.type = OP;
55   else if(buffer[tindex] == ')')   t.type = CP;
56   else if(buffer[tindex] == '+')   t.type = PLUS;
57   else if(buffer[tindex] == '-')   t.type = MINUS;
58   else if(buffer[tindex] == '*')   t.type = MUL;
59   else if(buffer[tindex] == '/')   t.type = DIV;
60   else if(buffer[tindex] == '\0')  t.type = EOI;
61
62   else if(buffer[tindex]>='0' && buffer[tindex]<='9'){
63     t.type=INT; t.n = 0;
64     for(; buffer[tindex] >= '0' && buffer[tindex] <= '9'; tindex++)
65         t.n=t.n*10+buffer[tindex]-48;
66     tindex --;
67   }
68   else    error("unknown character");
69   tindex++;
70   return t;
71 }

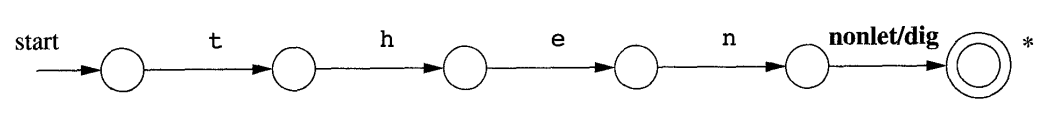

Keywords(I)

then

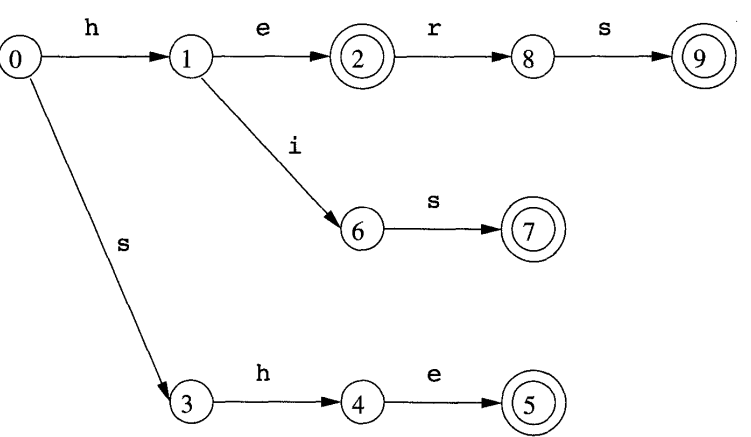

Keywords(II)

English Words

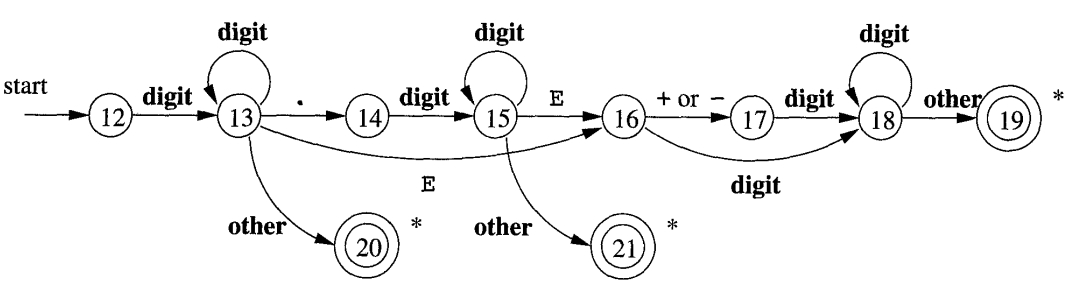

Number

1, 322, 34.34, 34E3, 34E-3

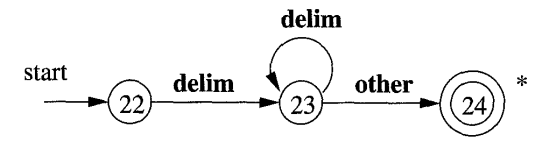

Delimiter

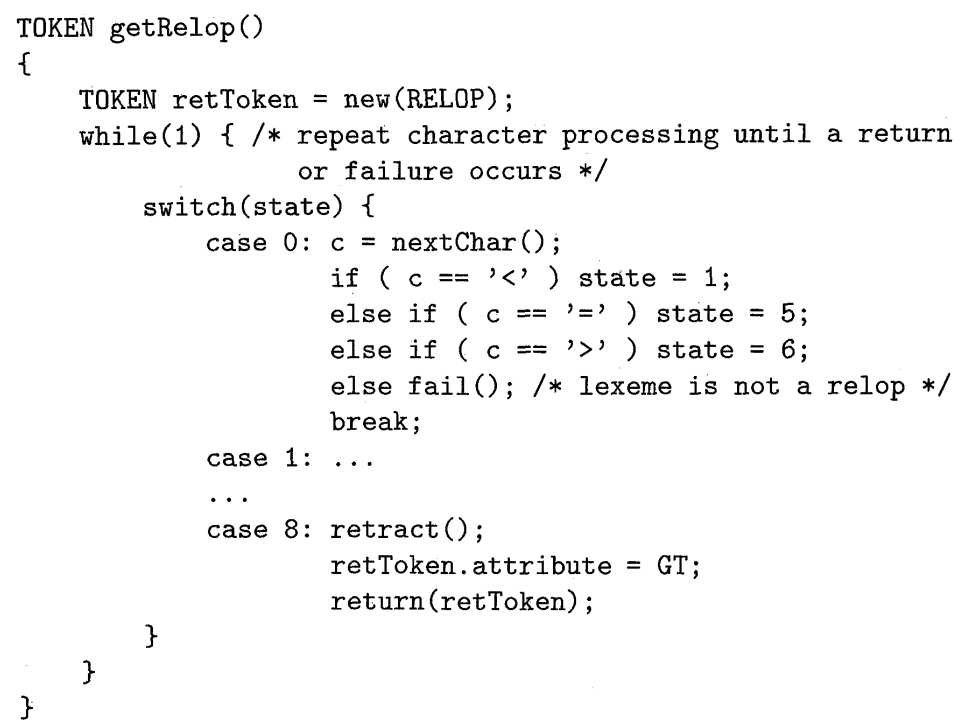

Psudo Code

Symbol Table

a = 2
count = count + a
  • ID, "a"
  • ASG
  • NINT, 2
  • EOL
  • ID, "count"
  • ASG
  • ID, "count"
  • PLUS
  • ID, "a"
  • EOL

Name

Type

Value

a

ID

count

ID

  • ID, 0
  • ASG
  • NINT, 2
  • EOL
  • ID, 1
  • ASG
  • ID, 1
  • PLUS
  • ID, 0
  • EOL

Keywords in Symbol Table

Name

Type

if

IF

while

WHILE

int

INT

...

...

a

ID

count

ID

a = 2
count = count + a
a = 2\ncount = count + a\0
|a| |=| |2|\n|c|o|u|n|t| |=| |c|o|u|n|t| |+| |a|\0|
1 enum Type{ID,INT,DOUBLE,LT,LE,WHILE,IF, RETURN, ASG};
2 struct Token{
3   Type t;  char *str; int  i;
4   double d; int line,pos;
5 };
6 class symboleTable{
7   struct stCls{char name[32]; Type t;};
8   public: int n; stCls table[2000];
9   symboleTable(){n=0;
10     table[n].t=IF;     strcpy(table[n++].name,"if");
11     table[n].t=WHILE;  strcpy(table[n++].name,"while");
12     table[n].t=INT;    strcpy(table[n++].name,"int");
13     table[n].t=DOUBLE; strcpy(table[n++].name,"double");
14     table[n].t=RETURN; strcpy(table[n++].name,"return");
15   }
16   int search(char *bf, int begin, int end, Type &t1){
17     int i=0;
18     for(i=0;i<n;i++){int j;
19       for(j=0;table[i].name[j];j++)
20         if(bf[begin+j]!= table[i].name[j])  break;
21       if(!table[i].name[j] && begin+j == end)
22       {t1=table[i].t; return i;}
23     }
24     for(i=0;begin+i<end;i++) table[n].name[i]=bf[begin+i];
25     table[n].name[i]=0; t1=table[n].t=ID; n++;
26     return n-1;
27   }
28 };
1 #include <iostream>
2 #include <fstream>
3 #include <cstdlib>
4 #include <cstring>
5 #include <cctype>
6 using namespace std;
7 enum Type {IF,WHILE, INT,DOUBLE,RETURN, ID, LT,LE,ASG, END_INPUT};
8 struct Token{Type t;  char *str=nullptr;  int  i=0; int line,pos;
9     void print(void){cout << t << ":\t" << str << ":\t" << i << endl;}
10 };
11 class symboleTable{
12   struct stCls{ char name[32]; Type t;};
13   public:   int n = 0;   stCls table[2000];
14   symboleTable(){
15     table[n].t=IF;     strcpy(table[n++].name,"if");
16     table[n].t=WHILE;  strcpy(table[n++].name,"while");
17     table[n].t=INT;    strcpy(table[n++].name,"int");
18     table[n].t=DOUBLE; strcpy(table[n++].name,"double");
19     table[n].t=RETURN; strcpy(table[n++].name,"return");
20   }
21   char* search(char *bf, int begin, int end, Type &t1){ int i,j;
22     for(i=0; i<n; i++){
23       for(j=0; table[i].name[j] && begin+j <= end; j++)
24         if(bf[begin+j] != table[i].name[j]) break;
25       // cout << "begin+j: " << begin+j << "\t" << end << "\t" << bf[begin+j] << endl;
26       if(!table[i].name[j] && begin+j-1 == end)
27       {t1=table[i].t; return table[i].name; }
28     }
29     for(i=0;begin+i<=end;i++)  table[n].name[i]=bf[begin+i];
30     table[n].name[i]=0;  t1=table[n].t=ID; n++;
31     return table[n-1].name;
32   }
33   void print(void){for(int i = 0; i < n; i++) cout << table[i].name << endl;}
34 };
35 class scanner{ static const int N=200000; public:
36   symboleTable smt;
37   char buffer[N];  int begin,end,lineno,pos;
38   scanner(const char *fileName="pr1.c"){
39     ifstream f1(fileName);
40     if(!f1){cout<<"file"; throw 0;}
41     f1.seekg(0,ios::end); long long t1=f1.tellg(); f1.seekg(0,ios::beg);
42     f1.read(buffer,t1);  f1.close(); begin=end=lineno=pos=0;
43   }
44   Token getToken(void){Token t;
45     for(;buffer[begin]==' ' || buffer[begin]=='\n'|| buffer[begin]=='\t'; begin++)
46       if(buffer[begin]=='\n')  lineno++;
47     end=begin;
48     if(isalpha(buffer[begin]) || buffer[begin]=='_'){  end ++;
49       while(isalnum(buffer[end]) || buffer[end]=='_')  end++;
50       end--; t.str=smt.search(buffer, begin, end, t.t);
51     } //  cout<< buffer[begin] << " ::: " << buffer[end] << endl;
52     else if(isdigit(buffer[begin])){cout << " Unexpected numeric input: "; throw 1; }
53     else if(buffer[begin]=='"'){cout << " Unexpected quotation mark input: "; throw 1;}
54     else
55       switch(buffer[begin]){
56         case '<':
57           end++;
58           if(buffer[end]=='=') t.t=LE;
59           else{end--;t.t=LT;}
60         break;
61         case '=': end++; t.t=ASG; break;
62         case 0 : t.t = END_INPUT; break;
63         default: cout << " Unexpected quotation mark input: "; throw 1;
64       }
65     pos=begin; if(t.t != END_INPUT) begin=++end;  return t;
66   }
67 };
68 int main(){Token t1;scanner s1;t1=s1.getToken();
69   while(t1.t != END_INPUT){t1.print(); t1=s1.getToken();}
70   s1.smt.print();
71 }

Memory Allocation

i

f

w

h

i

l

e

i

n

t

a

c

o

u

n

t

\0

Name

Type

Value

0

IF

2

WHILE

7

INT

10

ID

11

ID

Regular Expression

  1. 0|1|2|3 : 0 or 1 or 2 or 3
  2. [0123] : 0 or 1 or 2 or 3
  3. [0-3] : 0 or 1 or 2 or 3
  4. [-03] : 0 or - or 3
  5. (abc) : Capture group abc
  6. (a|b) : Match a or b
  7. . : Any character, except newline
  8. \. \* \\ \t \n \r \-
  9. [0\-3] : 0 or - or 3
  10. \w : Word
  11. \d : digit
  12. ^ : start of String
  13. ^abc : Start with abc
  14. $ : End of string
  15. abc$ : End with abc
  16. [ \t] : space or tab
  17. [\n\t] : new line or tab
  1. a+ : Match 1 or more a
  2. [0-9]+
  3. a* : Match 0 or more a
  4. [a-zA-Z_][a-zA-Z_]*
  5. [a-zA-Z_]+
  6. a? : Match 0 or 1 of a
  7. if(def)?
  8. [0-9]+(\.[0-9]+)?
  9. a{3} : Match exactly 3 , aaa
  10. a{1,3} : Match between 1 and 3
  11. a{,3} : Match up to 3
  12. a{3,} : Match 3 or more
  13. [^abc] : Any character except a, b or c
  14. [^\n] : . , scanf("[^\n]", st);
  15. [a^c] : one of: a ^ c
  16. a/b : a when followed by b
  17. (abc)/(xyz) : abcsldsxyzss , abcsldsxzss ×
  18. (https?|ftp):/(/[^/\r\n]+)+/?

    https://yoosofan.github.io/course/

Some References of Regular Expression

Online Regular Expression Tools

Regular Expression in Programming(re/regex)

Next topic LEX

1
